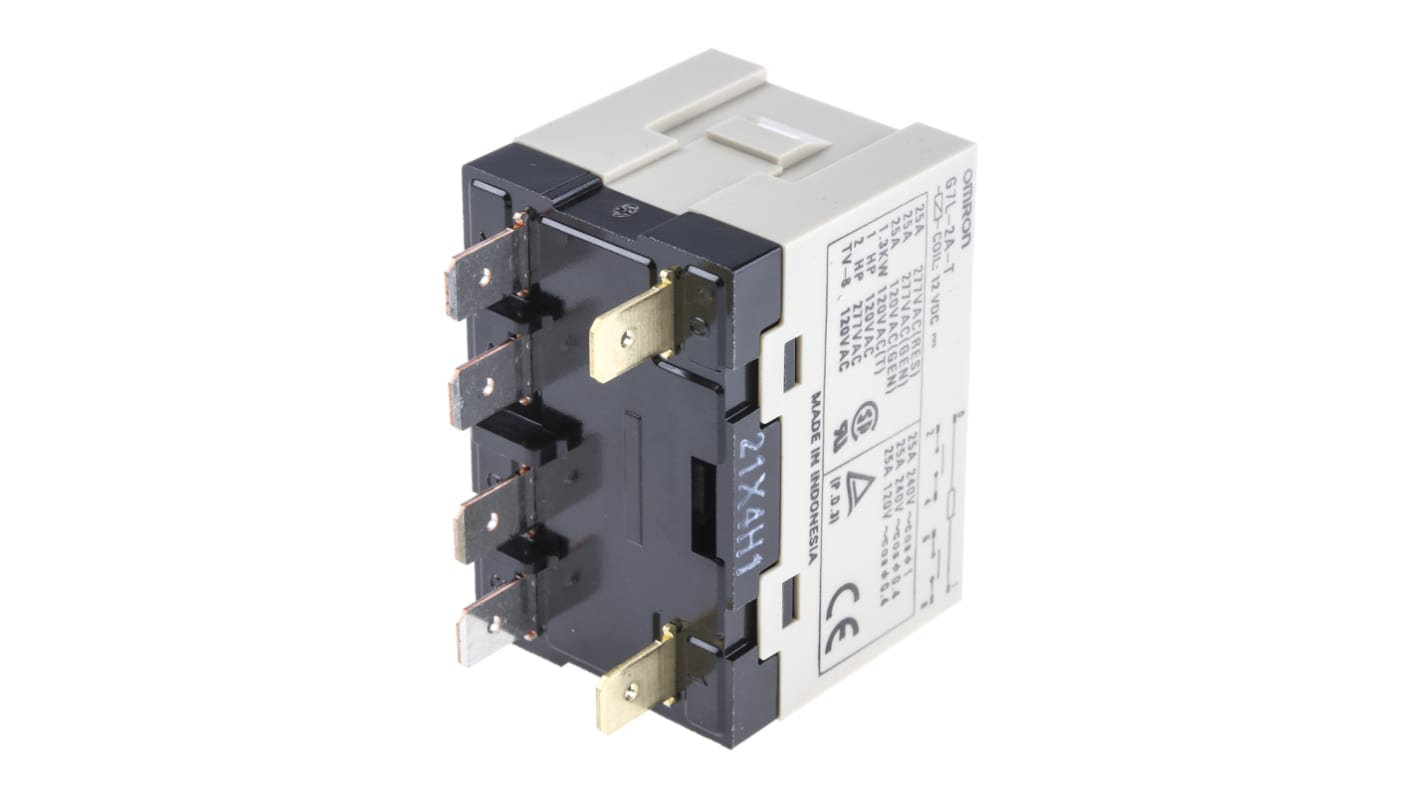

Omron Panel Mount Power Relay, 12V dc Coil, 25A Switching Current, DPST
- RS Stock No.:
- 329-957
- Mfr. Part No.:
- G7L-2A-T DC12
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£10.58
(exc. VAT)
£12.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 416 unit(s) ready to ship
- Plus 28 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.58 |
5 - 9 | £10.27 |
10 + | £9.81 |
*price indicative
- RS Stock No.:
- 329-957
- Mfr. Part No.:
- G7L-2A-T DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 12V dc | |
Contact Configuration | DPST | |
Mounting Type | Panel Mount | |
Switching Current | 25A | |
Number of Poles | 2 | |
Series | G7L | |
Latching | No | |
Terminal Type | Quick Connect | |
Length | 52.5mm | |
Coil Resistance | 75Ω | |
Maximum Operating Temperature | +60°C | |
Height | 53mm | |
Minimum Operating Temperature | -25°C | |
Depth | 33.5mm | |
Maximum Switching Power AC | 5.5 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Contact Configuration DPST | ||
Mounting Type Panel Mount | ||
Switching Current 25A | ||
Number of Poles 2 | ||
Series G7L | ||
Latching No | ||
Terminal Type Quick Connect | ||
Length 52.5mm | ||
Coil Resistance 75Ω | ||
Maximum Operating Temperature +60°C | ||
Height 53mm | ||
Minimum Operating Temperature -25°C | ||
Depth 33.5mm | ||
Maximum Switching Power AC 5.5 kVA | ||
Application Power | ||
- COO (Country of Origin):
- ID

Omron Non-Latching Relay
The Omron G7L series E-bracket mount non-latching relay has a contact configuration of DPNO. It is actuated with 12VDC coil voltage and 25A switching current. This relay is high-capacity, high-dielectric strength relay is compatible with momentary voltage drop up to 50% of the rated voltage.
Features and Benefits
Flame-resistance materials used for all insulation material
Coil resistance is 75ohm
Quick connect terminal type
Coil resistance is 75ohm
Quick connect terminal type
Applications
Power controllers for water heaters, dryer
Switching controllers for power tools or motors
Lighting controllers
Magnetron control in microwaves
Lamp controls, motor drivers and power supply switching in copy machines, facsimile machines and other office equipment
Switching controllers for power tools or motors
Lighting controllers
Magnetron control in microwaves
Lamp controls, motor drivers and power supply switching in copy machines, facsimile machines and other office equipment
Certifications
UL approved
CSA certified
CSA certified
