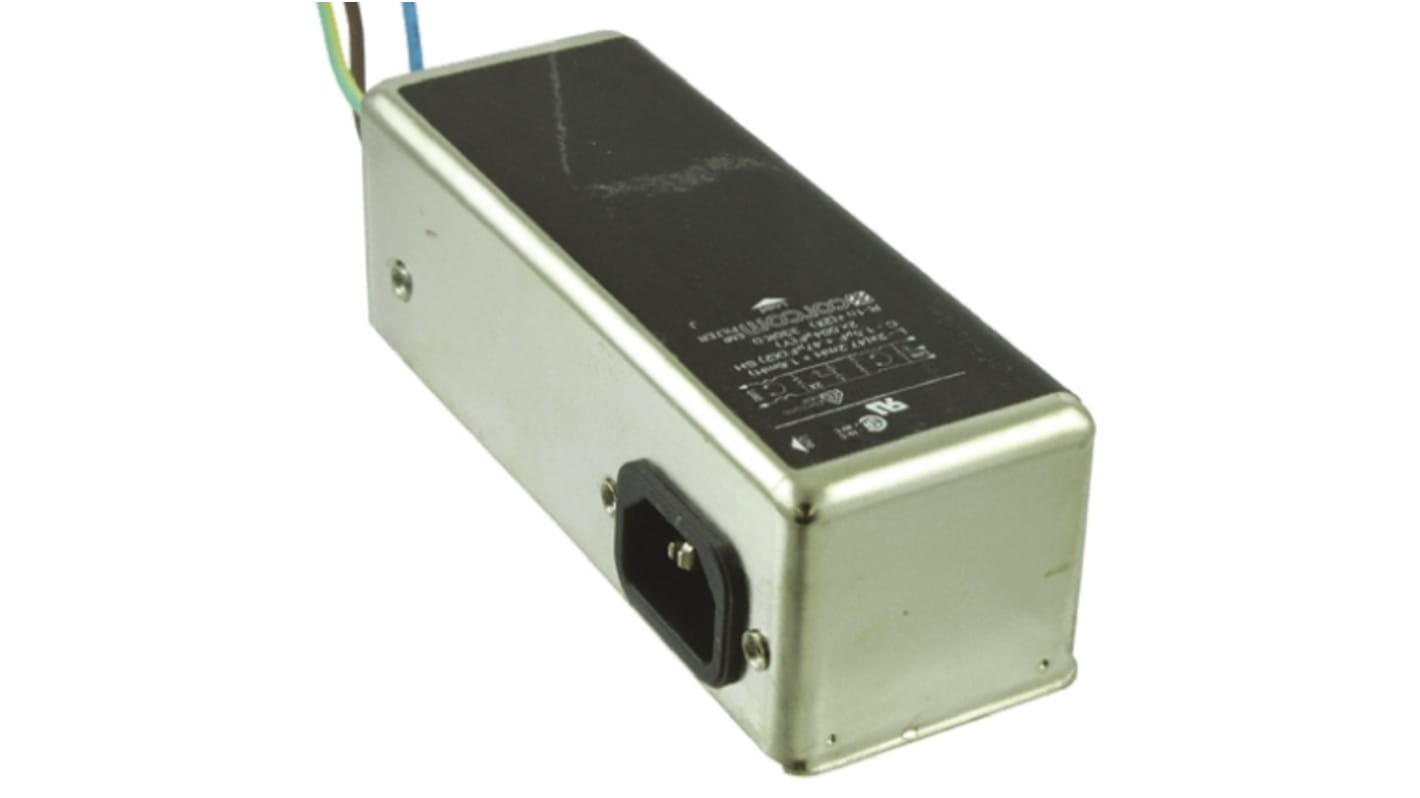

TE Connectivity, Q 3A 250 V ac 50/60Hz, Flange Mount Power Line Filter, Wire Lead, Single Phase
- RS Stock No.:
- 782-8498
- Mfr. Part No.:
- 3EQ8
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 782-8498
- Mfr. Part No.:
- 3EQ8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Current Rating | 3A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | Flange Mount | |
| Termination Style | Wire Lead | |
| Number of Phases | 1 | |
| Series | Q | |
| Operating Frequency | 50/60Hz | |
| Length | 78mm | |
| Depth | 45.2mm | |
| Height | 55.63mm | |
| Capacitance | 1.01 μF , 0.006µF | |
| Inductance | 32.2 mH | |
| Dimensions | 78 x 57.2 x 45.2mm | |
| Minimum Operating Temperature | -10°C | |
| Leakage Current | 0.38 mA | |
| Maximum Operating Temperature | +40°C | |
| Resistance | 270kΩ | |
| Standards Met | UL 1283 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Current Rating 3A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Flange Mount | ||
Termination Style Wire Lead | ||
Number of Phases 1 | ||
Series Q | ||
Operating Frequency 50/60Hz | ||
Length 78mm | ||
Depth 45.2mm | ||
Height 55.63mm | ||
Capacitance 1.01 μF , 0.006µF | ||
Inductance 32.2 mH | ||
Dimensions 78 x 57.2 x 45.2mm | ||
Minimum Operating Temperature -10°C | ||
Leakage Current 0.38 mA | ||
Maximum Operating Temperature +40°C | ||
Resistance 270kΩ | ||
Standards Met UL 1283 | ||
- COO (Country of Origin):
- MX
Corcom Q Series Highest Performance RFI Filters for Switching Power Supplies
Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.
Specifically developed for switching power supplies
High attenuation for common and differential mode interference
Effective from 10kHz → 30MHz
Optimized for attenuation and size
3 or 6 versions available with IEC inlet
High attenuation for common and differential mode interference
Effective from 10kHz → 30MHz
Optimized for attenuation and size
3 or 6 versions available with IEC inlet
Approvals
UL, CSA and VDE
