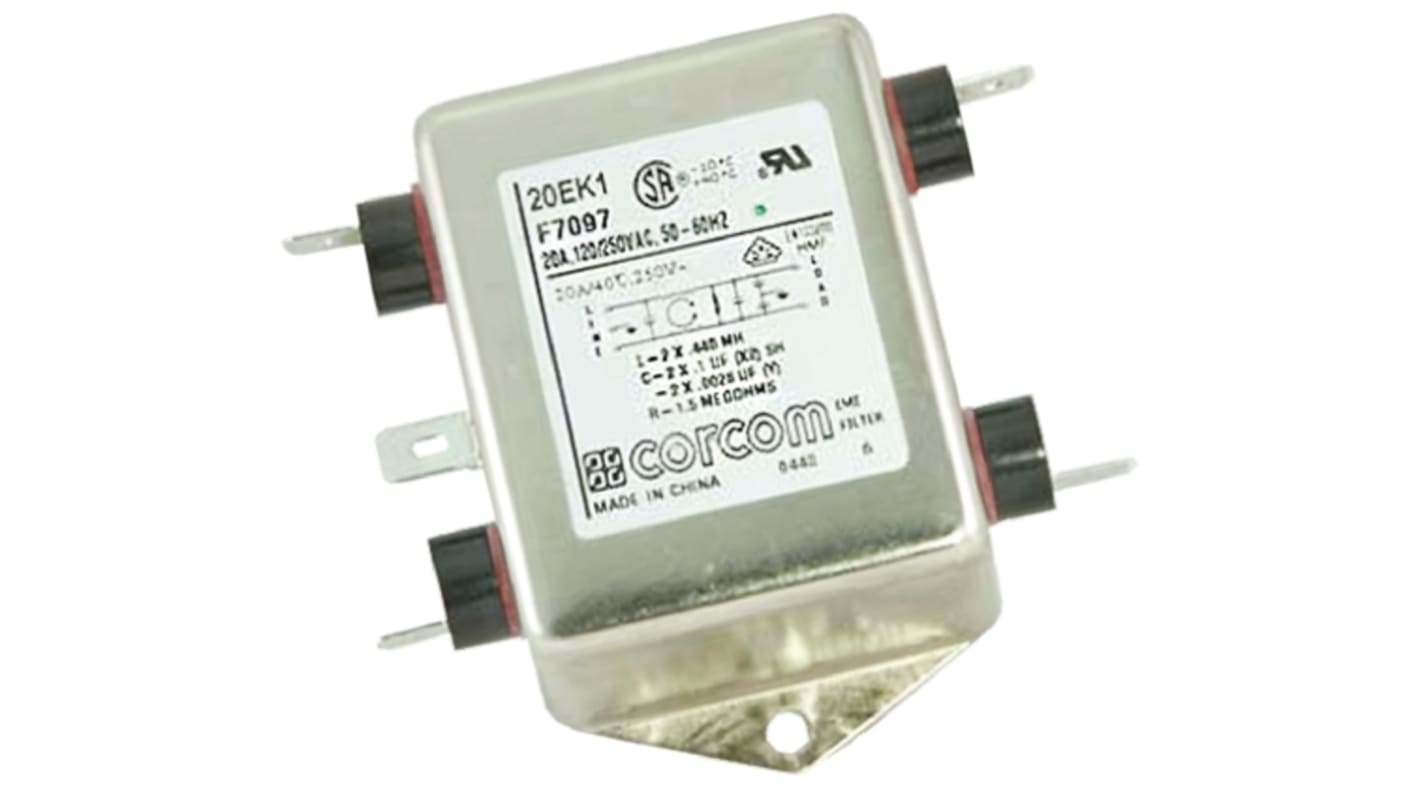

TE Connectivity, Corcom K 20 A 250V ac 50Hz, 60 Hz, Flange RFI Filter, Fast-On 1 Phase
- RS Stock No.:
- 782-6739
- Mfr. Part No.:
- 20EK1
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£28.11
(exc. VAT)
£33.73
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £28.11 |
| 25 - 49 | £26.56 |
| 50 - 99 | £25.24 |
| 100 - 199 | £23.95 |
| 200 + | £22.74 |
*price indicative
- RS Stock No.:
- 782-6739
- Mfr. Part No.:
- 20EK1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | RFI Filter | |
| Maximum Current | 20A | |
| Maximum Voltage | 250V ac | |
| Mount Type | Flange | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Series | Corcom K | |
| Number of Stages | 1 | |
| Operating Frequency | 50, 60Hz | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Length | 85.1mm | |
| Depth | 38.9mm | |
| Standards/Approvals | UL, CSA | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type RFI Filter | ||
Maximum Current 20A | ||
Maximum Voltage 250V ac | ||
Mount Type Flange | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Series Corcom K | ||
Number of Stages 1 | ||
Operating Frequency 50, 60Hz | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Length 85.1mm | ||
Depth 38.9mm | ||
Standards/Approvals UL, CSA | ||
- COO (Country of Origin):
- CN
Corcom K Series General Purpose RFI Power Line Filters
Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE
Suitable for high impedance loads
Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present
EK models meet the very low leakage current requirements for VDE portable equipment and non-patient care medical equipment
Available with ground line inductor (choke)
Approvals
UL, CSA and VDE
