- RS Stock No.:
- 186-3552
- Mfr. Part No.:
- 20VK1
- Brand:
- TE Connectivity
Available to back order for despatch 13/05/2024
Added
Price Each (In a Box of 8)
£31.571
(exc. VAT)
£37.885
(inc. VAT)
Units | Per unit | Per Box* |
8 - 32 | £31.571 | £252.568 |
40 + | £26.835 | £214.68 |
*price indicative |
- RS Stock No.:
- 186-3552
- Mfr. Part No.:
- 20VK1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

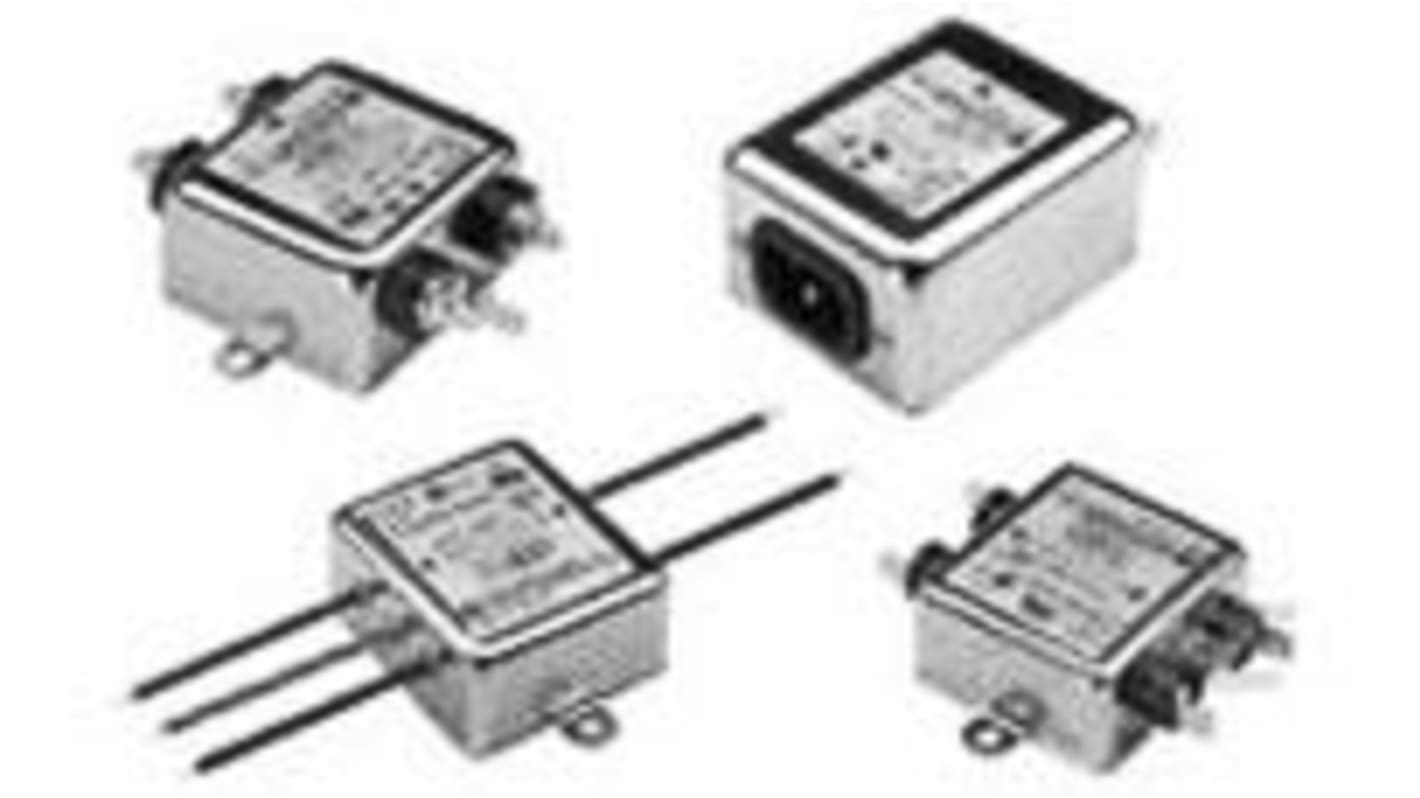

General Purpose RFI Power Line Filters – Ideal for high impedance load. Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present.
General purpose RFI power line filters for high impedance loads
Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present
EK models meet the very low leakage current requirements for VDE portable equipment and non-patient care medical equipment
Available with ground line inductor (choke)
Applications
TV / Audio / Video
Computing & accessories
Home appliances
Medical equipment
Gaming machines
Exercise equipment
Test measurement equipment
Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present
EK models meet the very low leakage current requirements for VDE portable equipment and non-patient care medical equipment
Available with ground line inductor (choke)
Applications
TV / Audio / Video
Computing & accessories
Home appliances
Medical equipment
Gaming machines
Exercise equipment
Test measurement equipment
Specifications
Attribute | Value |
---|---|
Maximum Current Rating | 20A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | Flange Mount |
Termination Style | Fast-On |
Number of Phases | 1 |
Number of Stages | Single Stage |
Series | Corcom K |
Operating Frequency | 50/60Hz |
Length | 85.1mm |
Depth | 38.9mm |
Height | 85.1mm |
Dimensions | 85.1 x 38.9 x 85.1mm |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +40°C |
