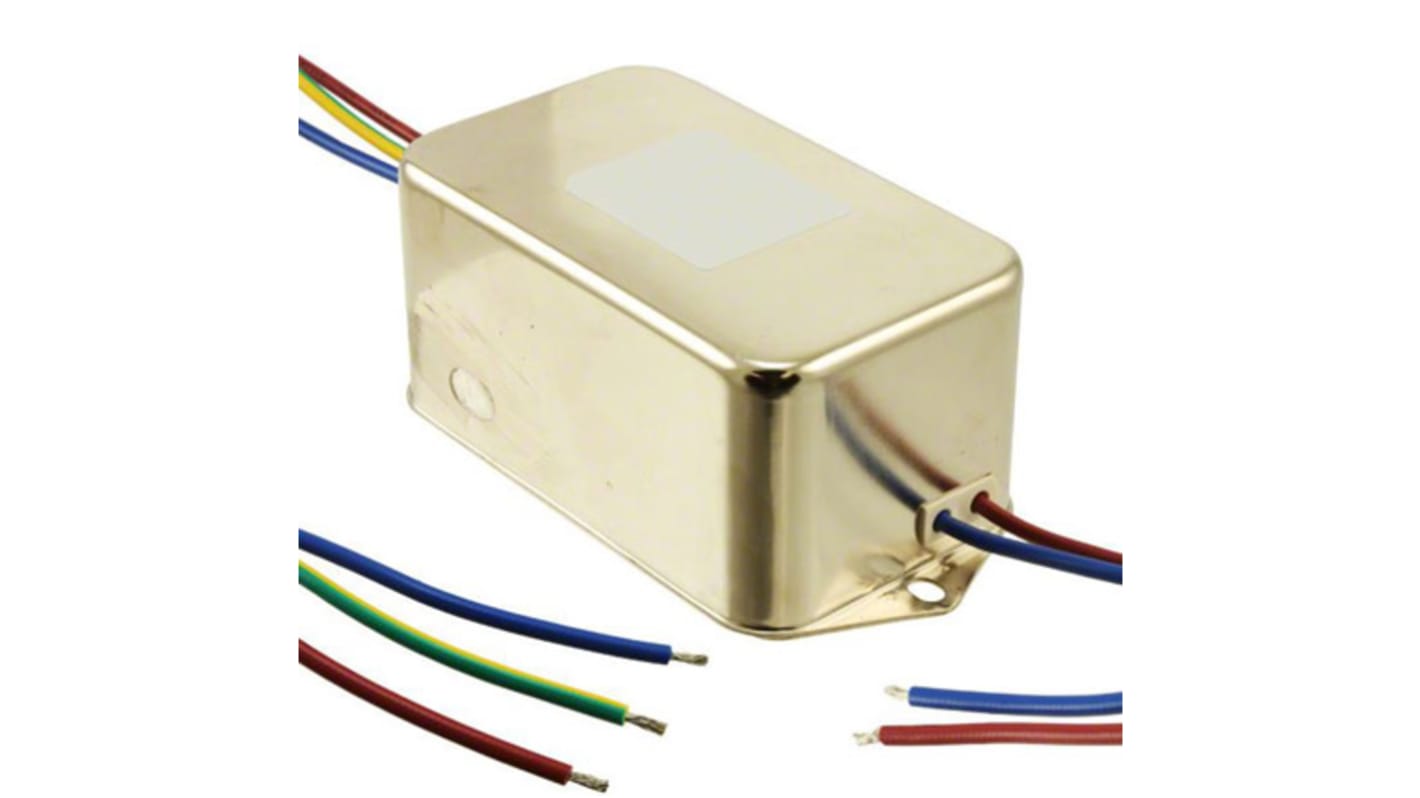

Schaffner, FN2070 6A 250 V ac/dc 400Hz, Chassis Mount EMI Filter, Wire Lead, Single Phase
- RS Stock No.:
- 776-1165
- Mfr. Part No.:
- FN2070-6-07
- Brand:
- Schaffner
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 776-1165
- Mfr. Part No.:
- FN2070-6-07
- Brand:
- Schaffner
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 6A | |
| Maximum Voltage Rating | 250 V ac/dc | |
| Mounting Type | Chassis Mount | |
| Termination Style | Wire Lead | |
| Number of Phases | 1 | |
| Number of Stages | Two Stage | |
| Series | FN2070 | |
| Operating Frequency | 400Hz | |
| Length | 113.5mm | |
| Depth | 45.4mm | |
| Height | 57.5mm | |
| Capacitance | 1 μF, 4.7nF | |
| Inductance | 7.8 mH | |
| Dimensions | 113.5 x 45.4 x 57.5mm | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 0.734 mA | |
| Maximum Operating Temperature | +100°C | |
| Resistance | 220kΩ | |
| Power Loss | 3.2W | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 6A | ||
Maximum Voltage Rating 250 V ac/dc | ||
Mounting Type Chassis Mount | ||
Termination Style Wire Lead | ||
Number of Phases 1 | ||
Number of Stages Two Stage | ||
Series FN2070 | ||
Operating Frequency 400Hz | ||
Length 113.5mm | ||
Depth 45.4mm | ||
Height 57.5mm | ||
Capacitance 1 μF, 4.7nF | ||
Inductance 7.8 mH | ||
Dimensions 113.5 x 45.4 x 57.5mm | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 0.734 mA | ||
Maximum Operating Temperature +100°C | ||
Resistance 220kΩ | ||
Power Loss 3.2W | ||
