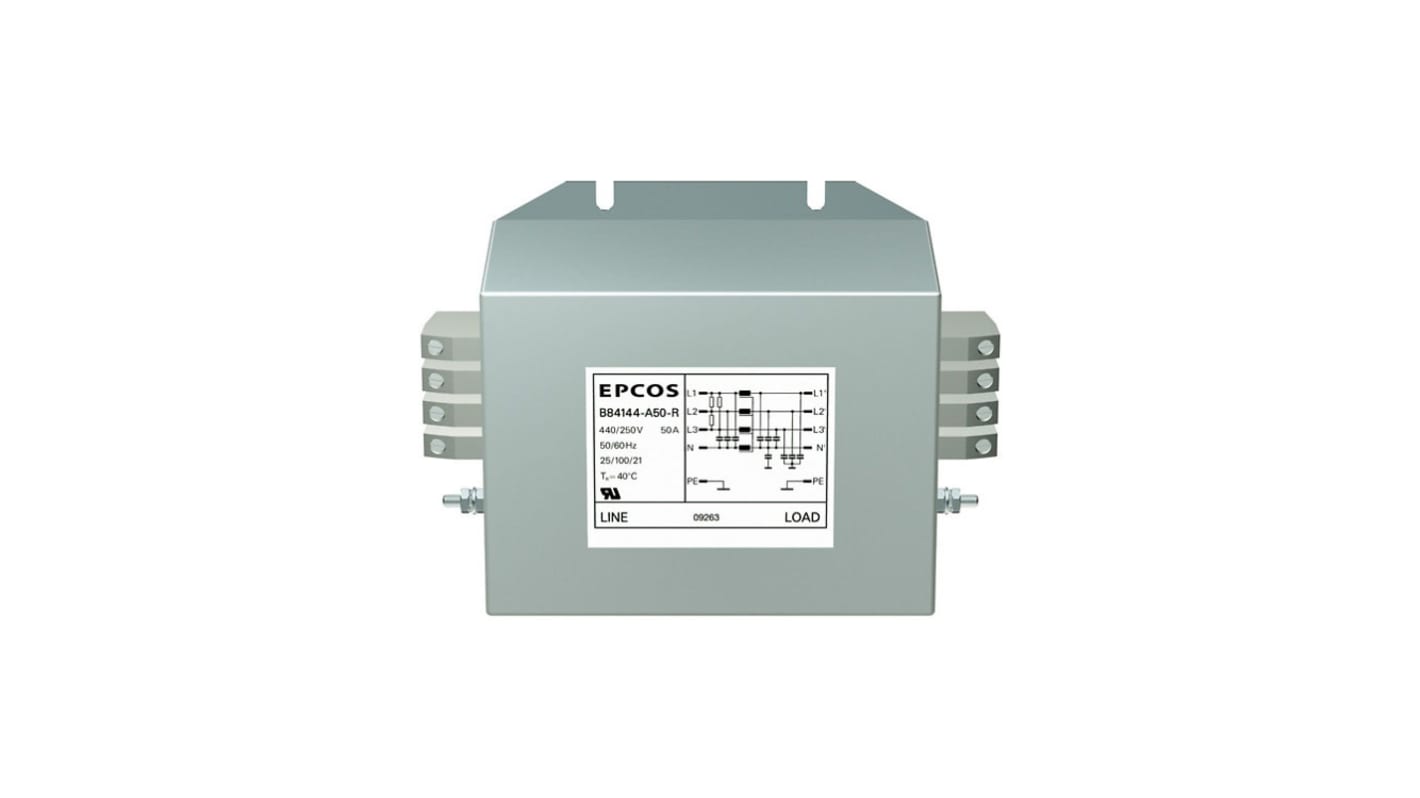

TDK, B84144A*R000 120 A 440V ac 50Hz, 60 Hz EMC Filter, Terminal Block 3 Phase
- RS Stock No.:
- 189-1596
- Mfr. Part No.:
- B84144A0120R000
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£476.29
(exc. VAT)
£571.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £476.29 |
| 5 - 9 | £470.41 |
| 10 + | £464.67 |
*price indicative
- RS Stock No.:
- 189-1596
- Mfr. Part No.:
- B84144A0120R000
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Maximum Current | 120A | |
| Product Type | EMC Filter | |
| Maximum Voltage | 440V ac | |
| Termination Style | Terminal Block | |
| Number of Phases | 3 | |
| Series | B84144A*R000 | |
| Operating Frequency | 50, 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 8.8mA | |
| Maximum Operating Temperature | 100°C | |
| Depth | 348mm | |
| Length | 171mm | |
| Height | 141mm | |
| Resistance | 0.5mΩ | |
| Standards/Approvals | UL 1283 | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Maximum Current 120A | ||
Product Type EMC Filter | ||
Maximum Voltage 440V ac | ||
Termination Style Terminal Block | ||
Number of Phases 3 | ||
Series B84144A*R000 | ||
Operating Frequency 50, 60Hz | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 8.8mA | ||
Maximum Operating Temperature 100°C | ||
Depth 348mm | ||
Length 171mm | ||
Height 141mm | ||
Resistance 0.5mΩ | ||
Standards/Approvals UL 1283 | ||
- COO (Country of Origin):
- HU
Power line EMC filters are connected to the line side of electronic devices and are components mainly for suppressing conducted EMI disturbances. Our lineup ranges from compact types with rated currents of a few amperes to large types with rated currents of thousands of amperes. Besides the types with general-purpose characteristics, the spectrum consists of wide-band, high-attenuation types as well as products that are compatible with high-voltage pulses and low-leakage current types in many different shapes and terminal shapes for various customer applications.
Optimized leakage current
Easy to install
Space-saving design
Applications
General applications for power electronics
UPS
Wind farms
For machine tools, textile and packaging machines
