TE Connectivity, Corcom R 5 A 250V ac 50Hz, 60 Hz, Flange RFI Filter, Fast-On 1 Phase
- RS Stock No.:
- 186-3554
- Mfr. Part No.:
- 5VR1
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 12 units)*
£261.072
(exc. VAT)
£313.284
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 48 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 12 - 12 | £21.756 | £261.07 |
| 24 - 48 | £18.493 | £221.92 |
| 60 - 96 | £16.317 | £195.80 |
| 108 + | £15.686 | £188.23 |
*price indicative
- RS Stock No.:
- 186-3554
- Mfr. Part No.:
- 5VR1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Current | 5A | |
| Product Type | RFI Filter | |
| Maximum Voltage | 250V ac | |
| Mount Type | Flange | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Number of Stages | 2 | |
| Series | Corcom R | |
| Operating Frequency | 50, 60Hz | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Depth | 29.5mm | |
| Height | 52.6mm | |
| Length | 97.8mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Current 5A | ||
Product Type RFI Filter | ||
Maximum Voltage 250V ac | ||
Mount Type Flange | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Number of Stages 2 | ||
Series Corcom R | ||
Operating Frequency 50, 60Hz | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Depth 29.5mm | ||
Height 52.6mm | ||
Length 97.8mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CN

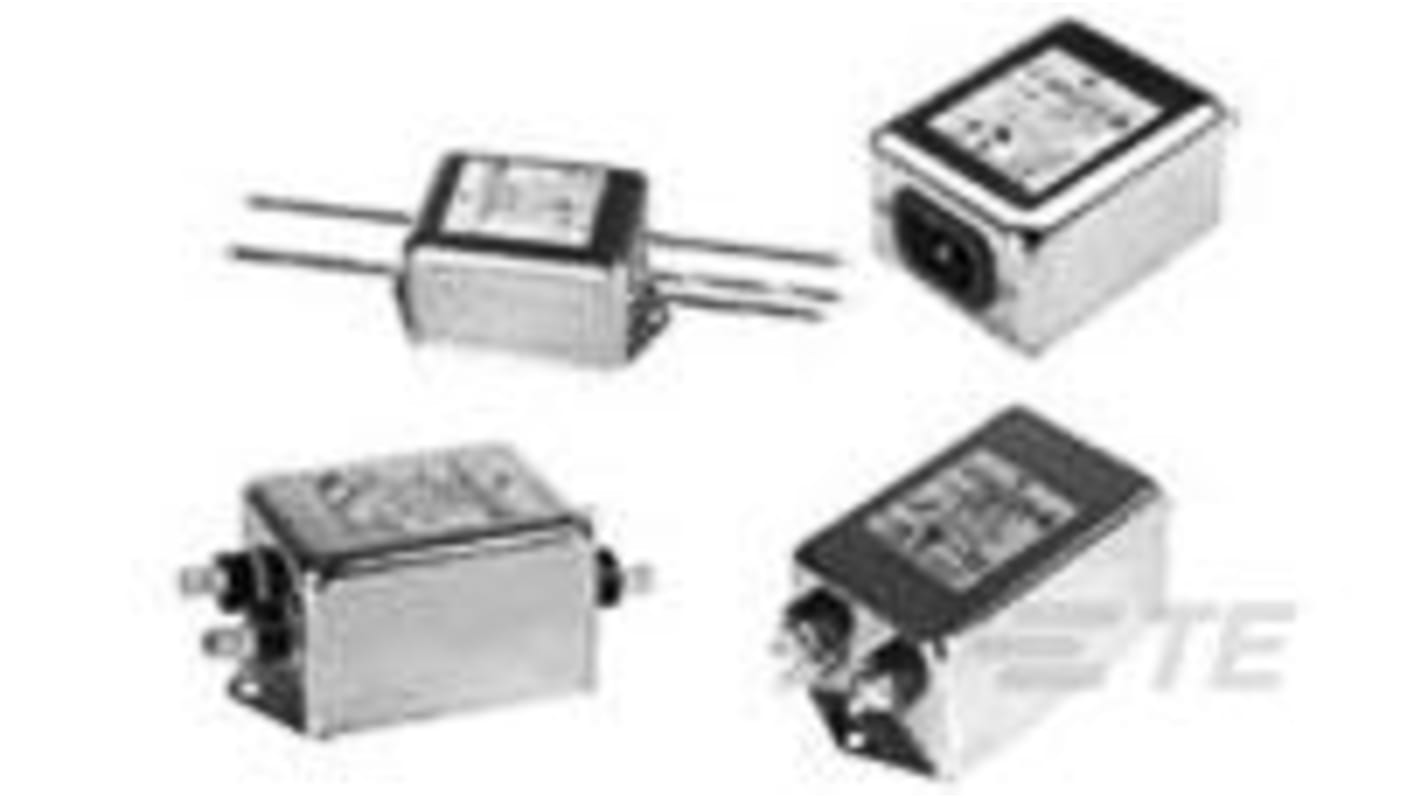

Two-stage General Purpose RFI Power Line Filter. Dual T section RFI filter provides premium performance.
Two-stage general purpose RFI power line filter
Dual T section RFI filter provides premium performance
Well suited for low impedance loads where noisy RFI environments are present
Controls pulsed, continuous and/or intermittent interference
ER model offers low leakage current without deterioration of insertion loss
Applications
Motors
Semiconductor actuators
Home appliances
Gaming machines
Exercise equipment
Security systems
Industrial equipment & controls
