TE Connectivity, Corcom B 2 A 250V ac 50Hz, 60 Hz, Flange RFI Filter, Fast-On 1 Phase
- RS Stock No.:
- 186-3561
- Distrelec Article No.:
- 304-55-825
- Mfr. Part No.:
- 2VB1
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 186-3561
- Distrelec Article No.:
- 304-55-825
- Mfr. Part No.:
- 2VB1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | RFI Filter | |
| Maximum Current | 2A | |
| Maximum Voltage | 250V ac | |
| Mount Type | Flange | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Number of Stages | 1 | |
| Series | Corcom B | |
| Operating Frequency | 50Hz, 60Hz | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Height | 64.3mm | |
| Length | 57.2mm | |
| Depth | 16.8mm | |
| Standards/Approvals | UL, CSA | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type RFI Filter | ||
Maximum Current 2A | ||
Maximum Voltage 250V ac | ||
Mount Type Flange | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Number of Stages 1 | ||
Series Corcom B | ||
Operating Frequency 50Hz, 60Hz | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Height 64.3mm | ||
Length 57.2mm | ||
Depth 16.8mm | ||
Standards/Approvals UL, CSA | ||
- COO (Country of Origin):
- CN

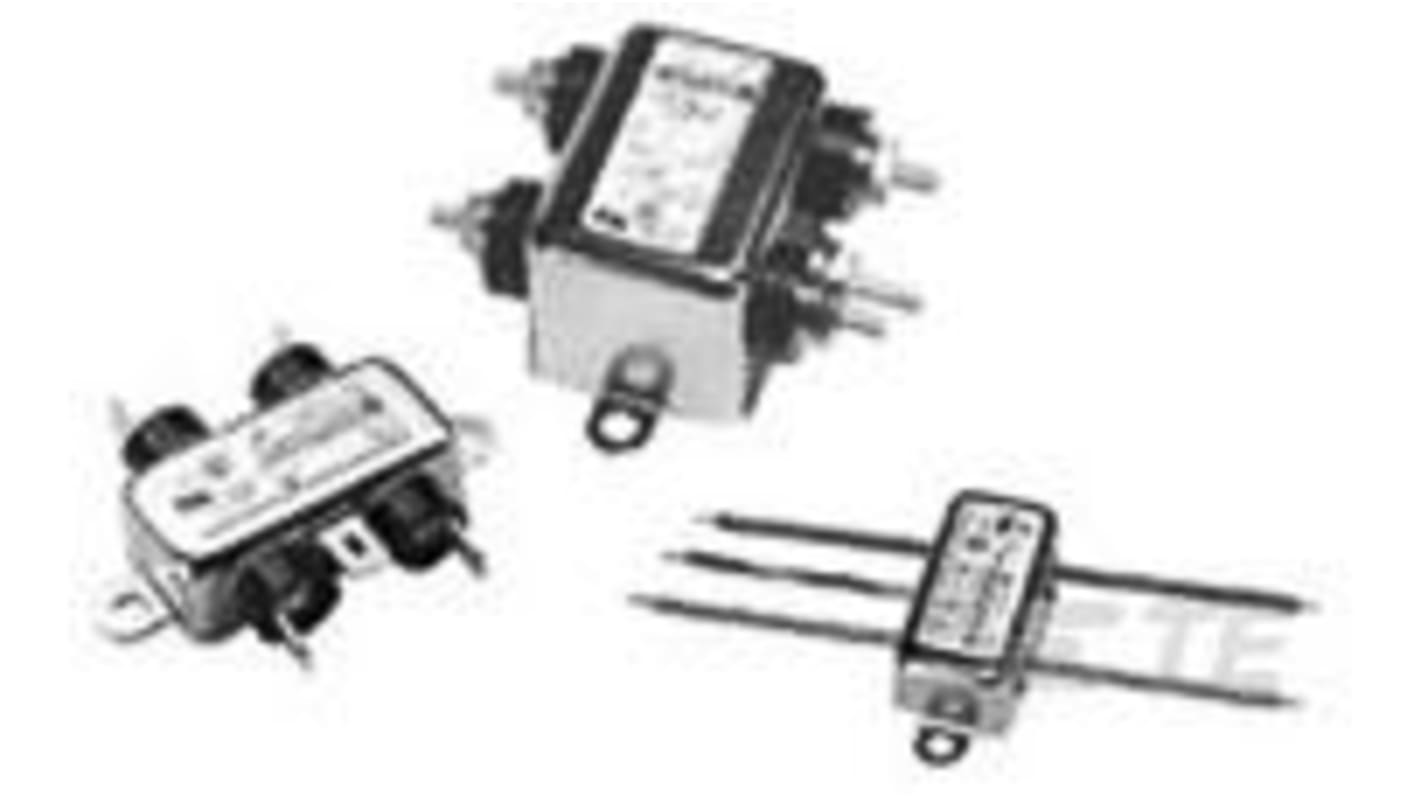

General Purpose RFI Filters for High Impedance Loads at Low Current.
General purpose RFI Filters for high impedance load / low current
General purpose
Wide variety of termination options
Meets low leakage current requirements of VDE portable equipment and non-patient medical equipment
Applications
HVAC
TV / Audio / Video
Computing & accessories
Home appliances
Medical equipment
Battery charging systems
Exercise equipment
