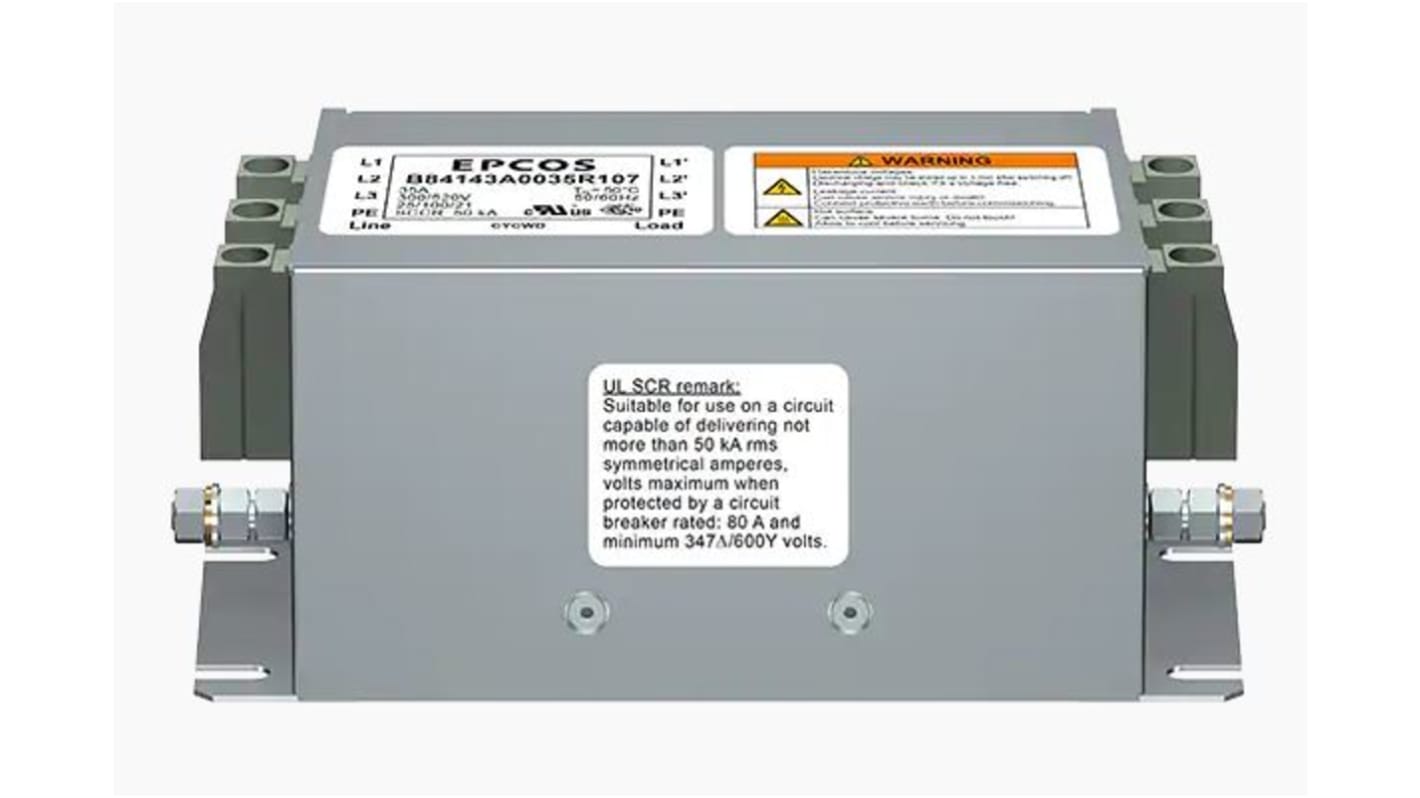

TDK, B84143A*R107 50 A 520V ac 50Hz, 60 Hz, Panel Mount EMC Filter, Screw 3 Phase
- RS Stock No.:
- 170-1361
- Mfr. Part No.:
- B84143A0050R107
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 6 units)*
£755.70
(exc. VAT)
£906.84
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 6 - 6 | £125.95 | £755.70 |
| 12 - 24 | £122.802 | £736.81 |
| 30 + | £119.652 | £717.91 |
*price indicative
- RS Stock No.:
- 170-1361
- Mfr. Part No.:
- B84143A0050R107
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | EMC Filter | |
| Maximum Current | 50A | |
| Maximum Voltage | 520V ac | |
| Mount Type | Panel Mount | |
| Termination Style | Screw | |
| Number of Phases | 3 | |
| Series | B84143A*R107 | |
| Number of Stages | 1 | |
| Operating Frequency | 50Hz, 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 100°C | |
| Leakage Current | 3.4mA | |
| Height | 80mm | |
| Length | 188mm | |
| Depth | 84.5mm | |
| Resistance | 1.1mΩ | |
| Standards/Approvals | UL1283 | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type EMC Filter | ||
Maximum Current 50A | ||
Maximum Voltage 520V ac | ||
Mount Type Panel Mount | ||
Termination Style Screw | ||
Number of Phases 3 | ||
Series B84143A*R107 | ||
Number of Stages 1 | ||
Operating Frequency 50Hz, 60Hz | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 100°C | ||
Leakage Current 3.4mA | ||
Height 80mm | ||
Length 188mm | ||
Depth 84.5mm | ||
Resistance 1.1mΩ | ||
Standards/Approvals UL1283 | ||
- COO (Country of Origin):
- HU
B84143-Ax-R Series
Very high insertion loss
Low leakage current
Optimised for long motor cables under full load
Applications include frequency converters for motor drives including lifts, pumps, traction systems, conveyor systems, Air conditioning systems, wind-driven power plants, and power supplies
Standards
UL 1283, CSA 22.2 No. 8 1996
