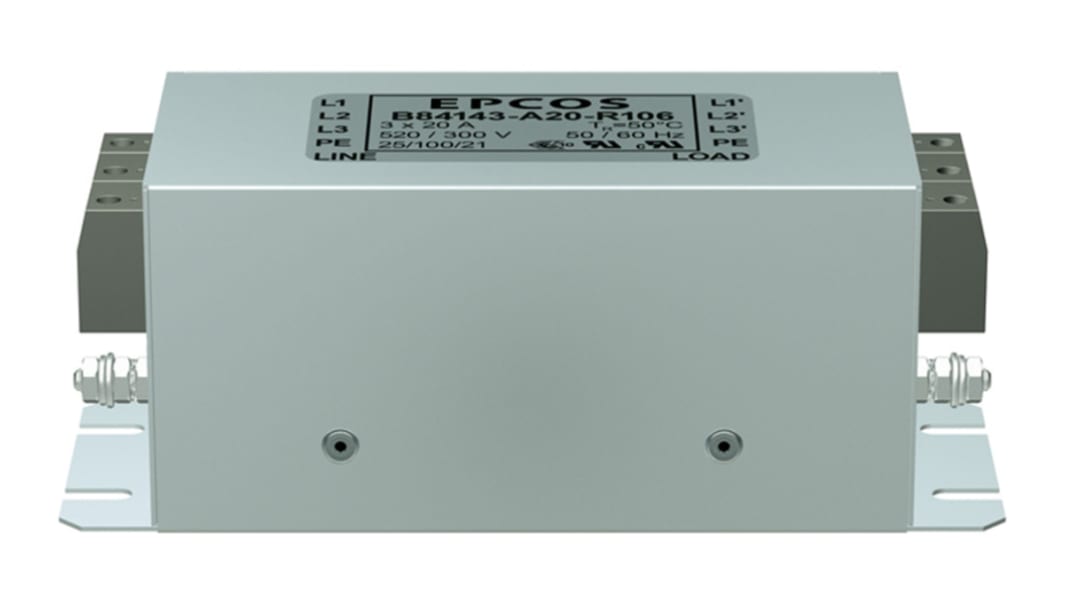

TDK, B84143A*R106 35 A 520V ac 50Hz, 60 Hz, Flange EMC Filter, Screw 3 Phase
- RS Stock No.:
- 167-8247
- Mfr. Part No.:
- B84143A0035R106
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 3 units)*
£326.97
(exc. VAT)
£392.37
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Plus 81 unit(s) shipping from 07 September 2026
- Plus 15 unit(s) shipping from 30 November 2026
- Final 3 unit(s) shipping from 08 February 2027
Units | Per unit | Per Box* |
|---|---|---|
| 3 - 3 | £108.99 | £326.97 |
| 6 - 12 | £106.267 | £318.80 |
| 15 + | £103.54 | £310.62 |
*price indicative
- RS Stock No.:
- 167-8247
- Mfr. Part No.:
- B84143A0035R106
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Maximum Current | 35A | |
| Product Type | EMC Filter | |
| Maximum Voltage | 520V ac | |
| Mount Type | Flange | |
| Packaging | Tray | |
| Termination Style | Screw | |
| Number of Phases | 3 | |
| Number of Stages | 1 | |
| Series | B84143A*R106 | |
| Operating Frequency | 50, 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 3.4mA | |
| Maximum Operating Temperature | 100°C | |
| Depth | 72.5mm | |
| Height | 71mm | |
| Length | 200mm | |
| Resistance | 1.7mΩ | |
| Standards/Approvals | UL1283 | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Maximum Current 35A | ||
Product Type EMC Filter | ||
Maximum Voltage 520V ac | ||
Mount Type Flange | ||
Packaging Tray | ||
Termination Style Screw | ||
Number of Phases 3 | ||
Number of Stages 1 | ||
Series B84143A*R106 | ||
Operating Frequency 50, 60Hz | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 3.4mA | ||
Maximum Operating Temperature 100°C | ||
Depth 72.5mm | ||
Height 71mm | ||
Length 200mm | ||
Resistance 1.7mΩ | ||
Standards/Approvals UL1283 | ||
B84143A*R106 Series
Easy to install 3-line filter in a Compact metal case
Optimised for long motor cables and operation under full load
High insertion loss
Optimised leakage current
Applications include: Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies, Textile machines, Packaging machines and Machine–tools
IP 20 rated
Approvals
UL 1283, CSA 22.2 No.8
Standards
IEC 60939
