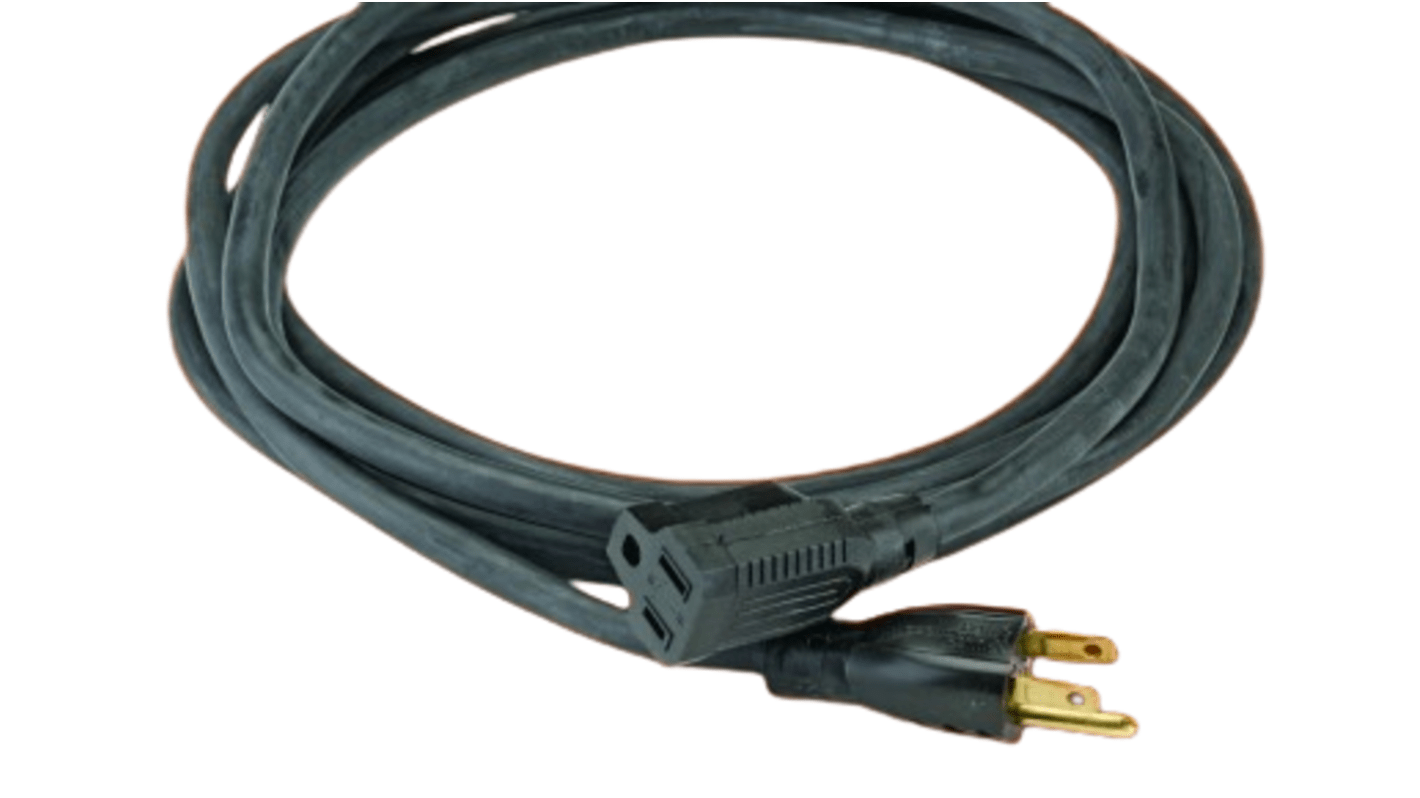

Alpha Wire Alpha Essentials Cords & Cord Sets SJT 1.32 mm² 3 Core Power Cable, Black PVC, 76m
- RS Stock No.:
- 741-7931
- Mfr. Part No.:
- 1942/3F BK003
- Brand:
- Alpha Wire
Subtotal (1 reel of 76 metres)*
£237.71
(exc. VAT)
£285.25
(inc. VAT)
FREE delivery for orders over £50.00
- 11 unit(s) ready to ship
- Plus 9 unit(s) shipping from 28 October 2025
- Plus 18 unit(s) shipping from 25 November 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £237.71 | £3.128 |
*price indicative
- RS Stock No.:
- 741-7931
- Mfr. Part No.:
- 1942/3F BK003
- Brand:
- Alpha Wire
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Cross Sectional Area | 1.32 mm² | |
Number of Cores | 3 | |
Sheath Colour | Black | |
Length | 76m | |
Armoured | No | |
Cable Type | SJT | |
Outer Diameter | 8.64mm | |
Sheath Material | PVC | |
Voltage Rating | 300 V | |
Conductor Strand Type | Stranded | |
Ground Wire | Yes | |
Minimum Operating Temperature | -30°C | |
Cable Shape | Twisted | |
Maximum Operating Temperature | +105°C | |
Size of Strands | 0.16 mm | |
Series | Alpha Essentials Cords & Cord Sets | |
Core Strands | 65/0.16 mm | |
Standards Met | EC 1907/2006 | |
Insulation Material | PVC | |
Conductor Material | Bare Copper | |
American Wire Gauge | 16 AWG | |
Number of Strands | 65 | |
Conductor Resistance | 4.2 O/1000ft | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 1.32 mm² | ||
Number of Cores 3 | ||
Sheath Colour Black | ||
Length 76m | ||
Armoured No | ||
Cable Type SJT | ||
Outer Diameter 8.64mm | ||
Sheath Material PVC | ||
Voltage Rating 300 V | ||
Conductor Strand Type Stranded | ||
Ground Wire Yes | ||
Minimum Operating Temperature -30°C | ||
Cable Shape Twisted | ||
Maximum Operating Temperature +105°C | ||
Size of Strands 0.16 mm | ||
Series Alpha Essentials Cords & Cord Sets | ||
Core Strands 65/0.16 mm | ||
Standards Met EC 1907/2006 | ||
Insulation Material PVC | ||
Conductor Material Bare Copper | ||
American Wire Gauge 16 AWG | ||
Number of Strands 65 | ||
Conductor Resistance 4.2 O/1000ft | ||
Belden Alpha Essentials Cords & Cord Sets Series Power Cable, 1.32 mm² Cross Sectional Area, 3 Number of Cores - 1942/3F BK003
Features & Benefits
• 16 AWG specification supports efficient energy flow
• PVC insulation offers excellent protection against environmental factors
• Stranded copper construction minimises resistance for superior conductivity
• Twisted design reduces electromagnetic interference
Applications
• Suitable for installations in automation machinery
• Used for powering outdoor lighting systems
• Fits perfectly within electrical distribution setups
• Designed for use in residential and commercial settings
How does the twisted design help in improving performance?
What impact does the PVC insulation have on the cable's usability?
Can this cable handle heavy electrical loads?
What are the implications of the temperature range on application?
