Alpha Wire Alpha Essentials Cords & Cord Sets SJT 1.32 mm² 3 Core Power Cable, Black PVC, 76m
- RS Stock No.:
- 741-7925
- Mfr. Part No.:
- 1942/3 BK003
- Brand:
- Alpha Wire

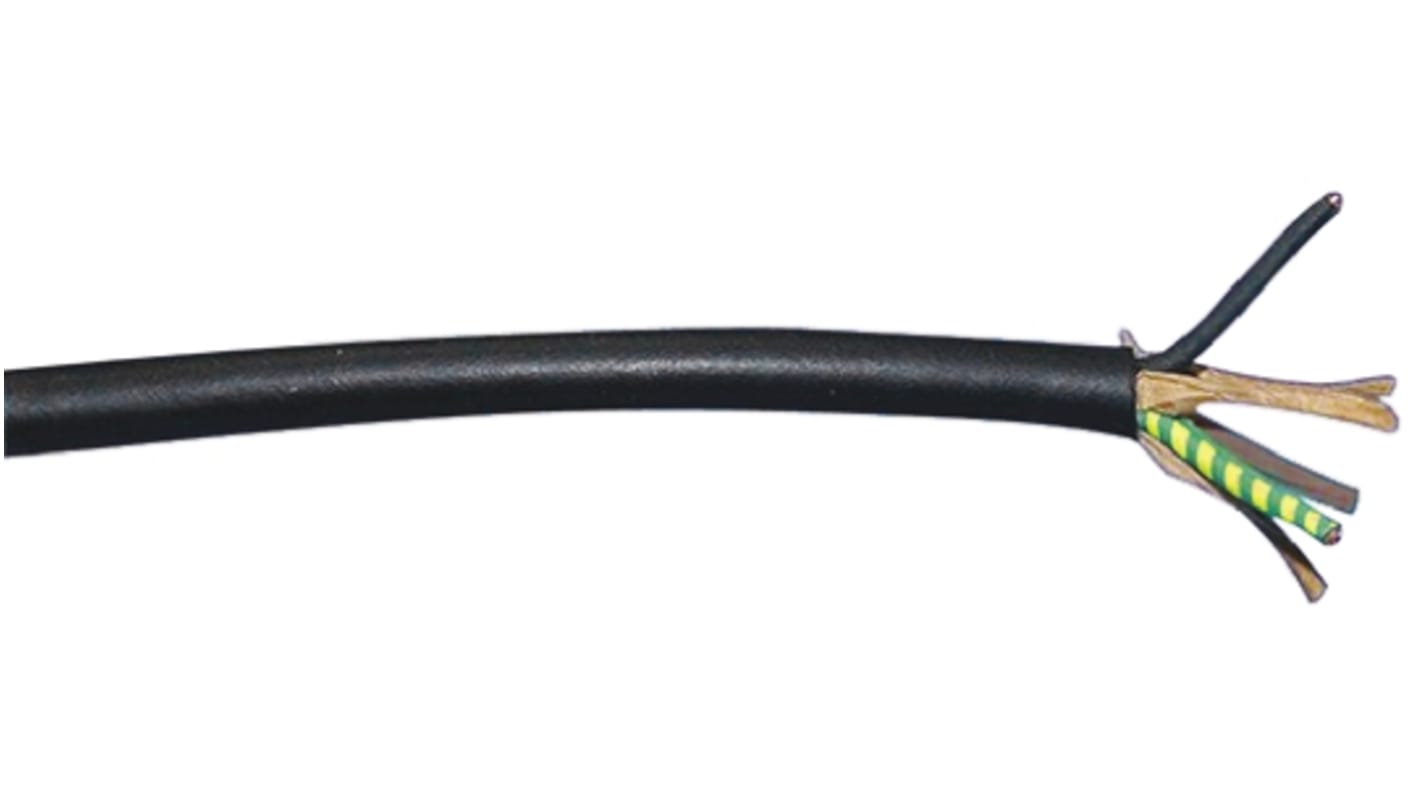

Image representative of range
Subtotal (1 reel of 76 metres)*
£270.66
(exc. VAT)
£324.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £270.66 | £3.561 |
*price indicative
- RS Stock No.:
- 741-7925
- Mfr. Part No.:
- 1942/3 BK003
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Cross Sectional Area | 1.32 mm² | |
Number of Cores | 3 | |
Sheath Colour | Black | |
Length | 76m | |
Cable Type | SJT | |
Sheath Material | PVC | |
Outer Diameter | 8.53mm | |
Voltage Rating | 300 V | |
Conductor Strand Type | Stranded | |
Number of Strands | 65 | |
Size of Strands | 0.16 mm | |
Series | Alpha Essentials Cords & Cord Sets | |
Core Strands | 65/0.16 mm | |
Insulation Material | PVC | |
Conductor Material | Bare Copper | |
Maximum Operating Temperature | +105°C | |
American Wire Gauge | 16 AWG | |
Standards Met | EC 1907/2006 | |
Minimum Operating Temperature | -30°C | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 1.32 mm² | ||
Number of Cores 3 | ||
Sheath Colour Black | ||
Length 76m | ||
Cable Type SJT | ||
Sheath Material PVC | ||
Outer Diameter 8.53mm | ||
Voltage Rating 300 V | ||
Conductor Strand Type Stranded | ||
Number of Strands 65 | ||
Size of Strands 0.16 mm | ||
Series Alpha Essentials Cords & Cord Sets | ||
Core Strands 65/0.16 mm | ||
Insulation Material PVC | ||
Conductor Material Bare Copper | ||
Maximum Operating Temperature +105°C | ||
American Wire Gauge 16 AWG | ||
Standards Met EC 1907/2006 | ||
Minimum Operating Temperature -30°C | ||
Belden Alpha Essentials Cords & Cord Sets Series Power Cable, 1.32mm² Cross Sectional Area, 300V Voltage Rating - 1942/3 BK003
This power cable is a robust 3-core SJT cable designed for versatile indoor applications. With a cross-sectional area of 1.32mm² and a length of 76m, it features a black PVC sheath and a maximum operating temperature of +105°C. The cable is constructed from stranded copper conductors, providing excellent conductivity and flexibility for various electrical needs.
Features & Benefits
• Stranded copper conductors enhance flexibility and conductivity
• PVC insulation ensures durability in diverse environmental conditions
• Rated for 300V, suitable for standard electrical applications
• Black PVC sheath provides protection and aesthetic appeal
• Designed for a temperature range of -30°C to +105°C
• Meets relevant electrical cord specifications for safety and performance
• PVC insulation ensures durability in diverse environmental conditions
• Rated for 300V, suitable for standard electrical applications
• Black PVC sheath provides protection and aesthetic appeal
• Designed for a temperature range of -30°C to +105°C
• Meets relevant electrical cord specifications for safety and performance
Applications
• Used for wiring in residential and commercial settings
• Suitable for connecting electrical equipment and machinery
• Ideal for use in automation systems and electronic devices
• Employed in mechanical requiring reliable power supply
• Suitable for connecting electrical equipment and machinery
• Ideal for use in automation systems and electronic devices
• Employed in mechanical requiring reliable power supply
What is the significance of the 3-core configuration?
The 3-core configuration allows for connection to both live and neutral wires, as well as an earth connection, ensuring safe operation in electrical applications.
How does the PVC sheath contribute to the cables performance?
The PVC sheath provides excellent insulation and resistance to wear, protecting the internal conductors from environmental damage, and ensures longevity under various operating conditions.
What applications are not recommended for this type of power cable?
This power cable should not be used in outdoor environments or exposed to direct sunlight for extended periods, as it is primarily designed for indoor applications.
How many strands are present in each conductor?
Each conductor is composed of 65 strands of bare copper, each measuring 0.16mm, which enhances the cable's flexibility and conductivity.
What temperature parameters should be considered for optimal usage?
The cable operates effectively within a temperature range of -30°C to +105°C, making it suitable for various indoor applications that require resilience to fluctuations in temperature.
