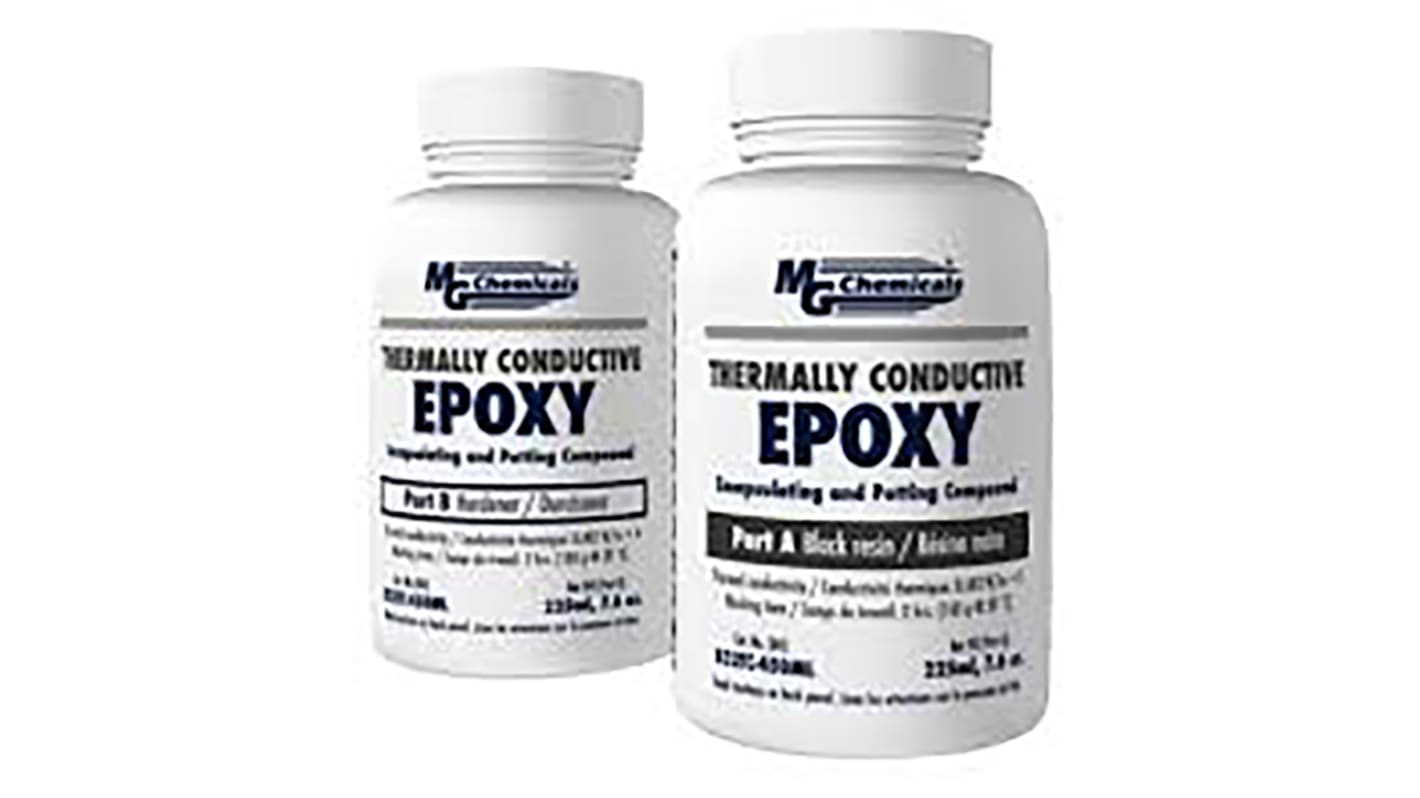

MG Chemicals 832TC-450ML Black Thermal Conductivity Epoxy Epoxy Resin Adhesive

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CA
Product Details

MG Chemicals Epoxy Potting Compounds

The MG Chemicals two-part epoxy potting compound has been designed to protect your electronic components. The liquid electric grade 832 series epoxy protects your components against static discharges, fungus, thermal shocks, mechanical impact and vibrations.

Feature and Benefits

Impact resistant
Non-conductive
Low toxicity
Improves reliability and operational range
Non-porous, water and chemical resistant
Hard to remove
Available in different colours

Typical Applications

Aviation Industry
Communication Industry
Marine Industry
Car industry

Note

Refer to the datasheet for more details on how to apply and applications

Caution

Due to exothermic reaction, heat cure temperatures should be at least 25% below the maximum temperature tolerated by the most fragile PCB component. For larger potting blocks, reduce heat cure temperature by greater margins

Potting Compounds

The Potting Compounds are pourable two-part compounds for potting and encapsulating electronic circuits and components. They protect against moisture and corrosion and improve insulation resistance and mechanical strength. They may be cured at room temperature, or oven cured. Use silicone oil aerosol as a mould release agent. Full instructions supplied with each pack.
Suitable disposable polyethylene gloves stock no. 613-3156 are available.

Specifications
Attribute Value
Product Material Epoxy
Package Type Can
Package Size 450 ml
Special Properties Thermal Conductivity
Cure Time 2 → 96 h
Colour Black
Maximum Operating Temperature +140°C
Minimum Operating Temperature -30°C
Setting Time 120min
Chemical Composition Acetone, Ethyl Lactate, Hydrocloric Acid, Isohexanes, Isopropyl Alcohol, Mineral Spirits, Xylene
Specific Gravity 1.6156
Operating Temperature Range -30 → +140 °C
Viscosity Measurement 38000 → 40000cP/s
Physical Form Liquid
