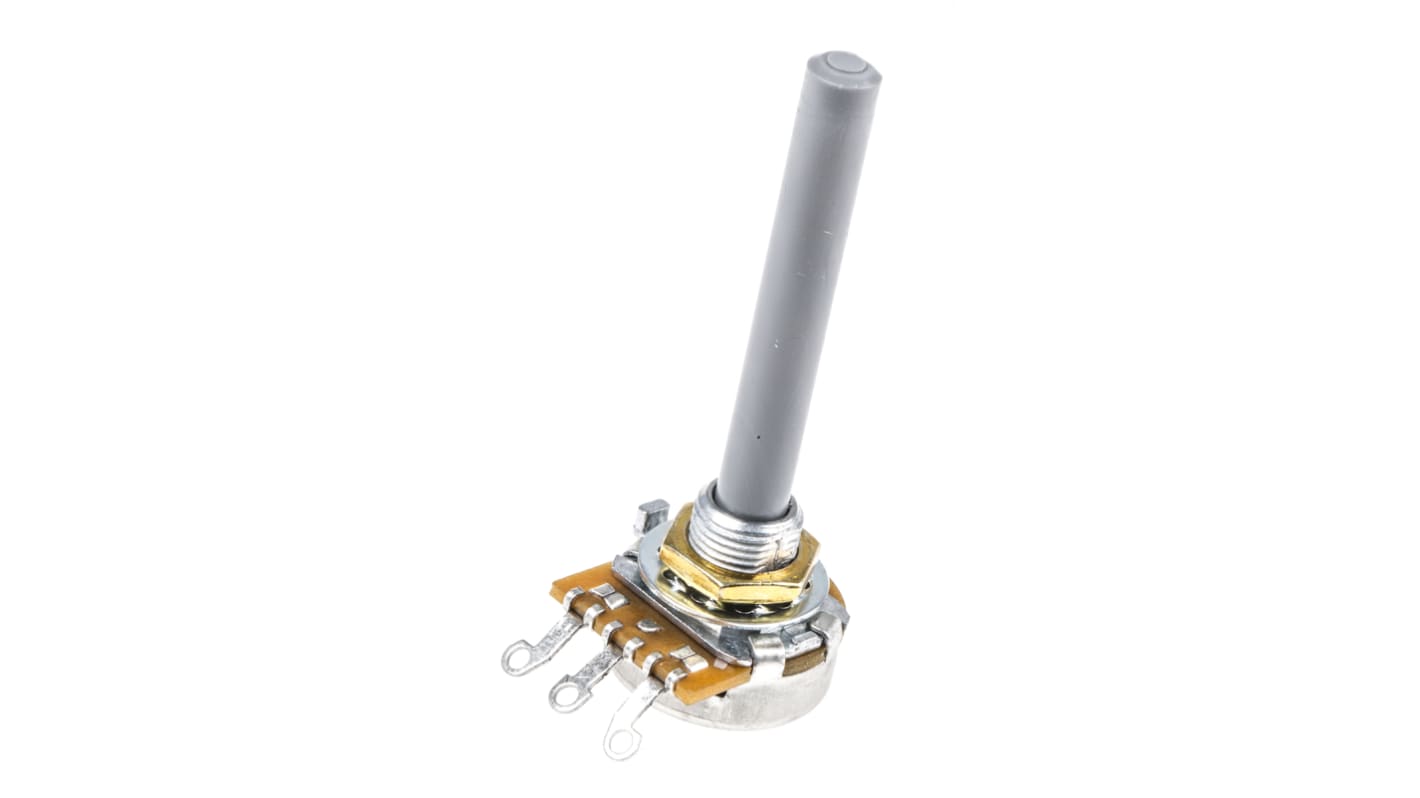

TE Connectivity 23 47 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount

RS Stock No.:: 163-8381
Mfr. Part No.:: 1624161-2
Brand:: TE Connectivity

TE Connectivity 23 47 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount

Subtotal (1 box of 200 units)*

£930.40

(exc. VAT)

£1,116.40

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 14 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Box*
200 +	£4.652	£930.40

*price indicative

RS Stock No.:: 163-8381
Mfr. Part No.:: 1624161-2
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Potentiometer Type	Rotary
	Product Type	Potentiometer
	Maximum Resistance	47kΩ
	Number of Gangs	1
	Shaft Diameter	6.35mm
	Packaging	Bulk
	Number of Turns	1
	Power Rating	0.2W
	Electrical Taper	Logarithmic
	Element Material	Carbon
	Mount Type	Panel Mount
	Termination Style	Solder Lug
	Shaft Length	50mm
	Minimum Operating Temperature	-25°C
	Adjustment Type	Side
	Pin Count	3
	Maximum Operating Temperature	70°C
	Depth	25.2mm
	Height	20.4mm
	Standards/Approvals	RoHS, REACH
	Length	60.7mm
	Series	23
	Actuator Type	Flatted Shaft
	Tolerance ±	20%

	Select all
	Brand TE Connectivity
	Potentiometer Type Rotary
	Product Type Potentiometer
	Maximum Resistance 47kΩ
	Number of Gangs 1
	Shaft Diameter 6.35mm
	Packaging Bulk
	Number of Turns 1
	Power Rating 0.2W
	Electrical Taper Logarithmic
	Element Material Carbon
	Mount Type Panel Mount
	Termination Style Solder Lug
	Shaft Length 50mm
	Minimum Operating Temperature -25°C
	Adjustment Type Side
	Pin Count 3
	Maximum Operating Temperature 70°C
	Depth 25.2mm
	Height 20.4mm
	Standards/Approvals RoHS, REACH
	Length 60.7mm
	Series 23
	Actuator Type Flatted Shaft
	Tolerance ± 20%

Datasheet

50mm Long Shaft, Rotary, Switched and Dual Potentiometers

TE Connectivity brings you a range of premium quality rotary potentiometers. With their brilliant build quality, they also boast a carbon element material and are panel mounted. They’re built with ruggedness in mind and are housed in an aluminium housing. Not to mention they’re solder lug termination to make it easier for a panel mount.
