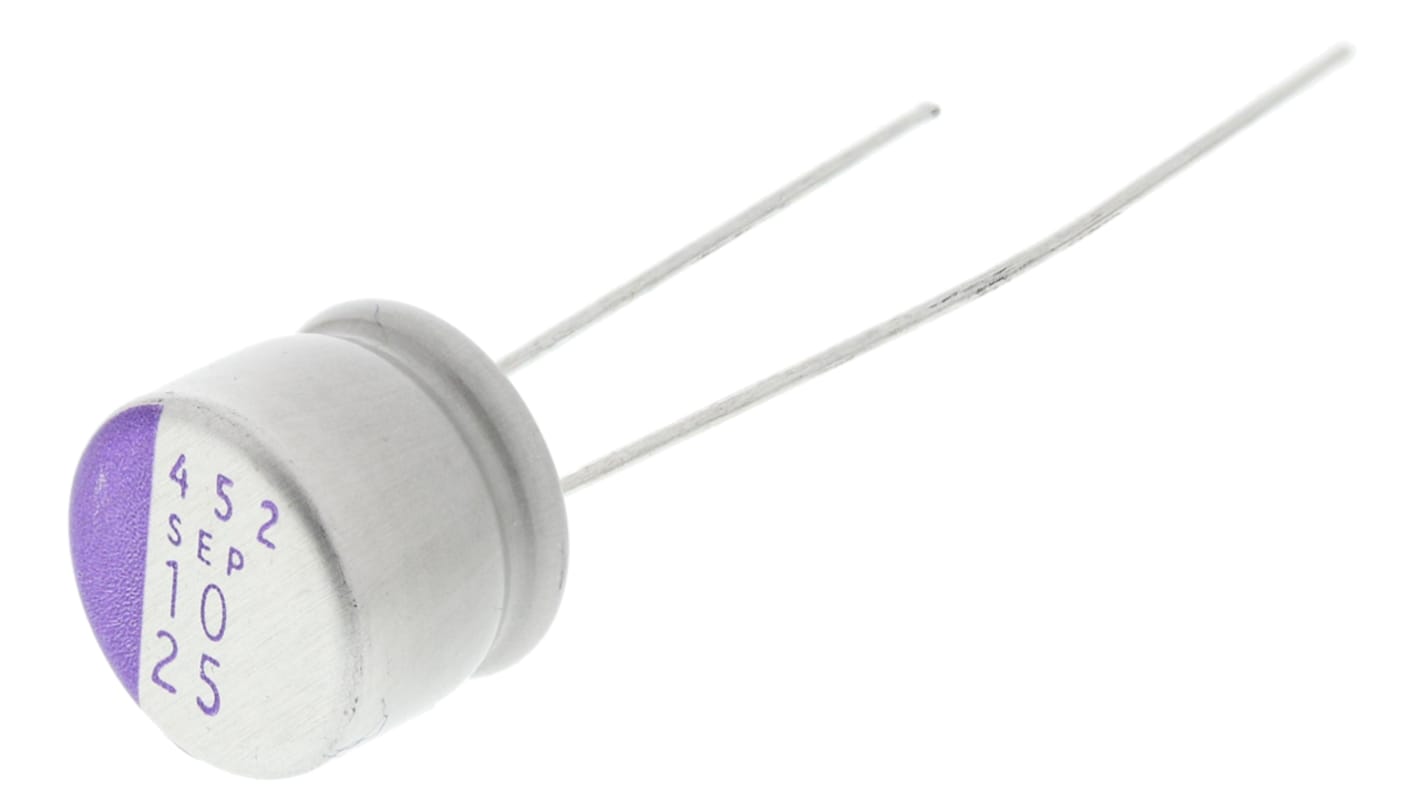

Panasonic 10μF Through Hole Polymer Capacitor, 25V dc
- RS Stock No.:
- 795-5569P
- Mfr. Part No.:
- 25SEP10M
- Brand:
- Panasonic
Bulk discount available
Subtotal 25 units (supplied in a bag)*
£24.95
(exc. VAT)
£29.95
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 15 unit(s), ready to ship
Units | Per unit |
|---|---|
| 25 - 45 | £0.998 |
| 50 - 120 | £0.922 |
| 125 - 245 | £0.862 |
| 250 + | £0.778 |
*price indicative
- RS Stock No.:
- 795-5569P
- Mfr. Part No.:
- 25SEP10M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 10µF | |
| Voltage | 25V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 60mΩ | |
| Lead Pitch | 5mm | |
| Tolerance | ±20% | |
| Length | 7mm | |
| Maximum Operating Temperature | +105°C | |
| Height | 7mm | |
| Dimensions | 8 (Dia) x 7mm | |
| Series | SEP | |
| Electrolyte Type | Solid | |
| Dissipation Factor | 10% | |
| Lifetime | 3000h | |
| Diameter | 10mm | |
| Leakage Current | 250 μA | |
| Ripple Current | 1.5A | |
| Polarised | Polar | |
| Minimum Operating Temperature | -55°C | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 10µF | ||
Voltage 25V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 60mΩ | ||
Lead Pitch 5mm | ||
Tolerance ±20% | ||
Length 7mm | ||
Maximum Operating Temperature +105°C | ||
Height 7mm | ||
Dimensions 8 (Dia) x 7mm | ||
Series SEP | ||
Electrolyte Type Solid | ||
Dissipation Factor 10% | ||
Lifetime 3000h | ||
Diameter 10mm | ||
Leakage Current 250 μA | ||
Ripple Current 1.5A | ||
Polarised Polar | ||
Minimum Operating Temperature -55°C | ||
OSCON Solid Electrolytic radial SEP series
Panasonic OS-CON SEP series electrolytic capacitors feature a solid, aluminium construction with a high conductive polymer.
Excellent noise reduction capability
Long life span
High voltage
High reliability
Low ESR and high ripple current
3000 h guarantee at +105°C
Radial lead type
Lead and Halogen free
Long life span
High voltage
High reliability
Low ESR and high ripple current
3000 h guarantee at +105°C
Radial lead type
Lead and Halogen free
Applications
Suitable uses for these electrolytic capacitors include infotainment and comfort accessories within automotive applications and ICT applications such as PCs, base stations, SSD and data centres. These radial capacitors are recommended for use in industrial infrastructure in industrial PCs, motor drivers, measuring instruments, power supplies, security cameras and inverters. SEP series capacitors are also suitable for home appliances such as air conditioners and home information appliances.
Solid Radial 105°C
