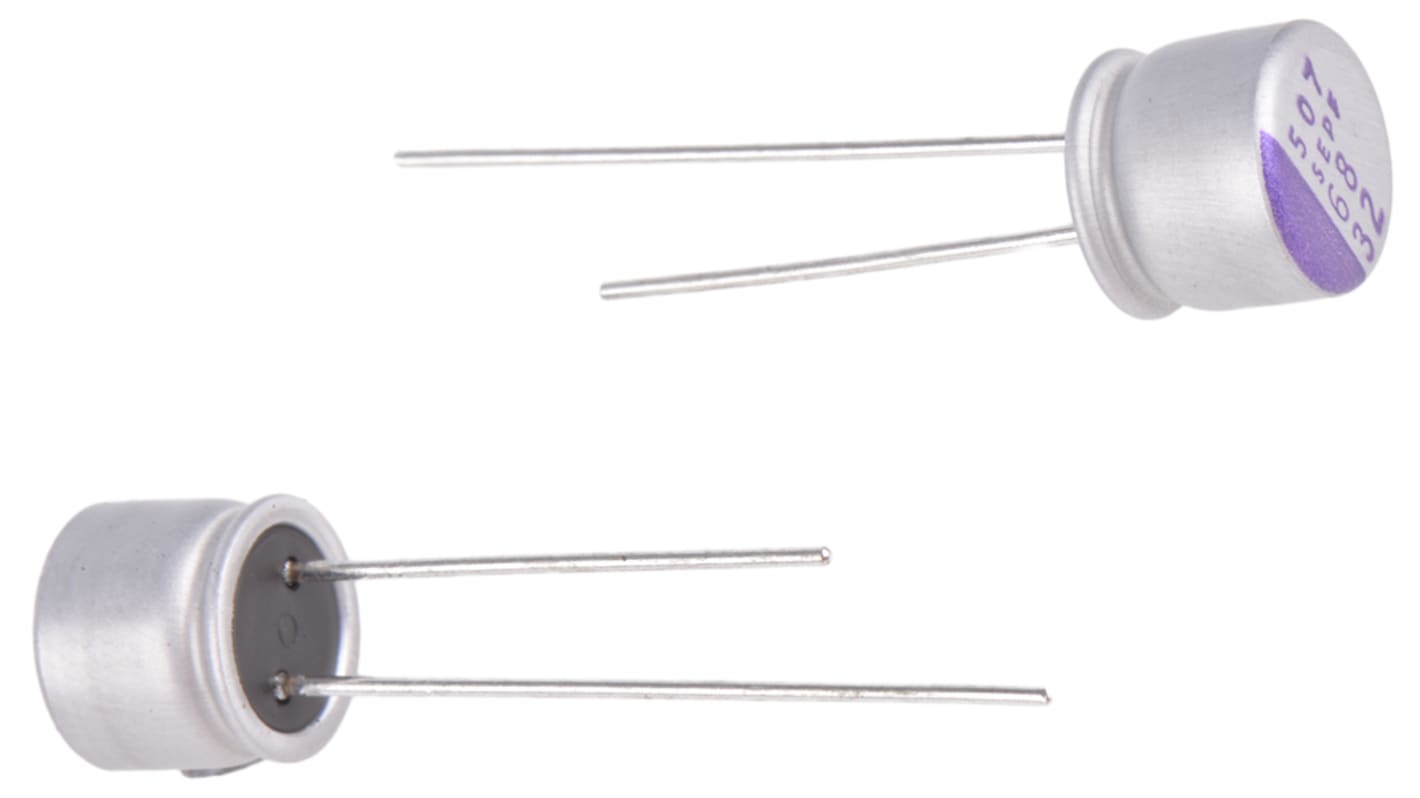

Panasonic 68μF Through Hole Polymer Capacitor, 32V dc
- RS Stock No.:
- 788-6983
- Mfr. Part No.:
- 32SEPF68M
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£5.55
(exc. VAT)
£6.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 390 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £1.11 | £5.55 |
25 - 45 | £1.054 | £5.27 |
50 - 120 | £0.978 | £4.89 |
125 - 245 | £0.91 | £4.55 |
250 + | £0.82 | £4.10 |
*price indicative
- RS Stock No.:
- 788-6983
- Mfr. Part No.:
- 32SEPF68M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Technology | Polymer | |
Capacitance | 68µF | |
Voltage | 32V dc | |
Mounting Type | Through Hole | |
Equivalent Series Resistance | 25mΩ | |
Lead Pitch | 3.5mm | |
Tolerance | ±20% | |
Maximum Operating Temperature | +105°C | |
Height | 7mm | |
Dimensions | 8 (Dia) x 7mm | |
Series | SEPF | |
Polarised | Polar | |
Dissipation Factor | 10% | |
Lifetime | 5000h | |
Diameter | 8mm | |
Leakage Current | 435 μA | |
Minimum Operating Temperature | -55°C | |
Ripple Current | 3200mArms | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 68µF | ||
Voltage 32V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 25mΩ | ||
Lead Pitch 3.5mm | ||
Tolerance ±20% | ||
Maximum Operating Temperature +105°C | ||
Height 7mm | ||
Dimensions 8 (Dia) x 7mm | ||
Series SEPF | ||
Polarised Polar | ||
Dissipation Factor 10% | ||
Lifetime 5000h | ||
Diameter 8mm | ||
Leakage Current 435 μA | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 3200mArms | ||
- COO (Country of Origin):
- JP
OSCON Solid Electrolytic radial SEPF series
Panasonic OS-CON SEPF electrolytic capacitors have a solid aluminium construction with a high conductive polymer. These aluminium capacitors cater for high voltage up to 35 V dc and feature large capacitance up to 1000μF.
5000 h guarantee at +105°C
Excellent noise reduction capability
Long life span
High voltage
High reliability
Low ESR and high ripple current
Radial lead type
Halogen free
Excellent noise reduction capability
Long life span
High voltage
High reliability
Low ESR and high ripple current
Radial lead type
Halogen free
Applications
These radial capacitors are recommended for use in industrial infrastructure in industrial PCs, motor drivers, measuring instruments, power supplies, security cameras and inverters. Suitable uses for these electrolytic capacitors include infotainment and comfort accessories within automotive applications and ICT applications such as PCs, base stations, SSD and data centres. SEPF capacitors are also suitable for home appliances such as air conditioners and home information appliances.
Solid Radial 105°C
