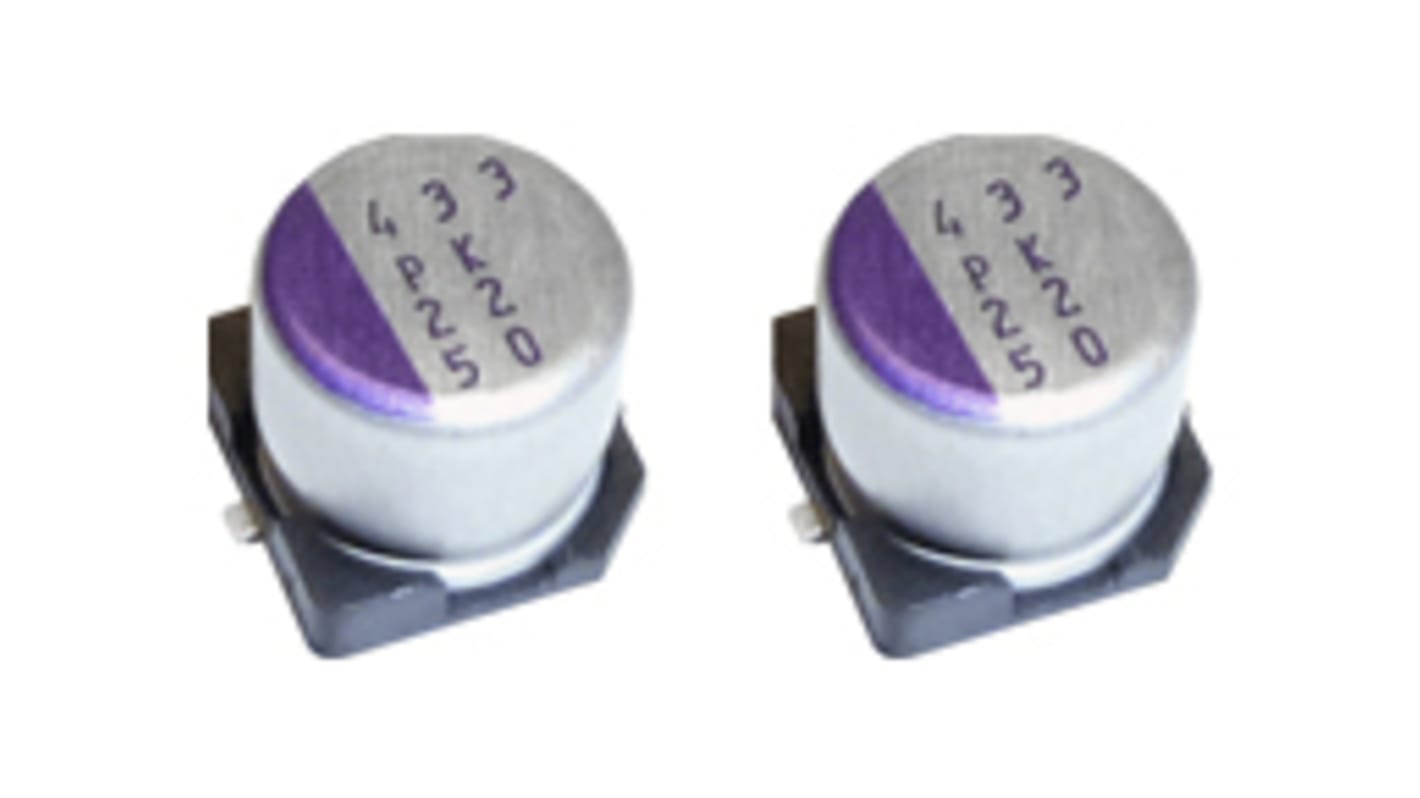

Panasonic 68 μF Surface Polymer Capacitor, 20V dc
- RS Stock No.:
- 181-3165
- Mfr. Part No.:
- 20SVPK68M
- Brand:
- Panasonic
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£5.60
(exc. VAT)
£6.70
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 July 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.56 | £5.60 |
| 100 - 240 | £0.545 | £5.45 |
| 250 - 490 | £0.53 | £5.30 |
| 500 - 990 | £0.517 | £5.17 |
| 1000 + | £0.503 | £5.03 |
*price indicative
- RS Stock No.:
- 181-3165
- Mfr. Part No.:
- 20SVPK68M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Electrolytic | |
| Product Type | Polymer Capacitor | |
| Capacitance | 68μF | |
| Voltage | 20V dc | |
| Mount Type | Surface | |
| Package/Case | 1500 | |
| Polarity | Polar | |
| Lead Pitch | 1.4mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Dimensions | 5.9 x 5.3 x 5.3 mm | |
| Length | 5.9mm | |
| Height | 5.3mm | |
| Depth | 5.3mm | |
| Series | SVPK | |
| Electrolyte Type | Solid | |
| Leakage Current | 272μA | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 0.12% | |
| Ripple Current | 2.8A | |
| Automotive Standard | No | |
| Diameter | 5mm | |
| Lifetime | 1000 h | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Electrolytic | ||
Product Type Polymer Capacitor | ||
Capacitance 68μF | ||
Voltage 20V dc | ||
Mount Type Surface | ||
Package/Case 1500 | ||
Polarity Polar | ||
Lead Pitch 1.4mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Dimensions 5.9 x 5.3 x 5.3 mm | ||
Length 5.9mm | ||
Height 5.3mm | ||
Depth 5.3mm | ||
Series SVPK | ||
Electrolyte Type Solid | ||
Leakage Current 272μA | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 0.12% | ||
Ripple Current 2.8A | ||
Automotive Standard No | ||
Diameter 5mm | ||
Lifetime 1000 h | ||
- COO (Country of Origin):
- JP
High voltage (50 V.DC max.)
125 ℃ 1000 h
Halogen free
