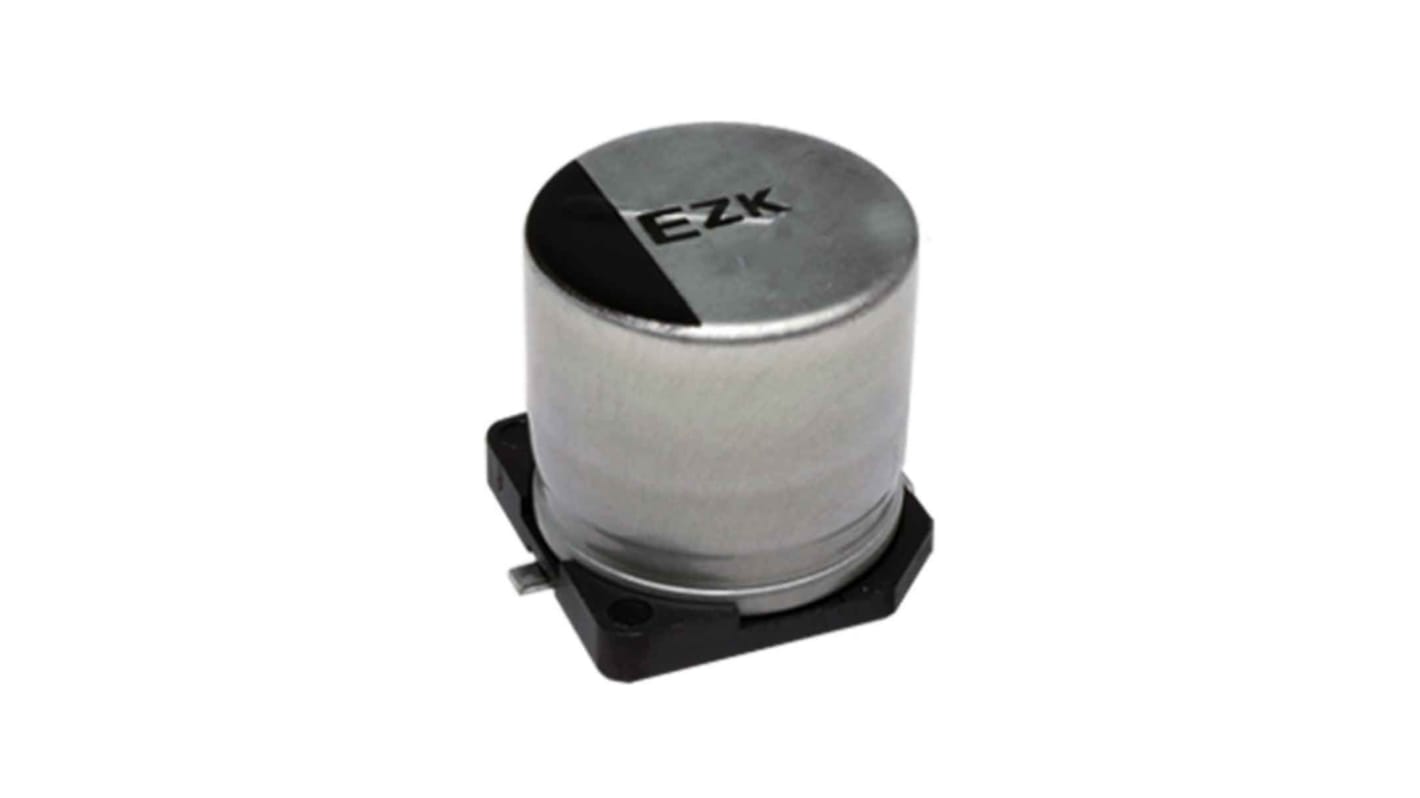

Panasonic 120μF Surface Mount Polymer Capacitor, 35V
- RS Stock No.:
- 197-2190
- Mfr. Part No.:
- EEHZKV121XUV
- Brand:
- Panasonic
Subtotal (1 reel of 900 units)*
£543.60
(exc. VAT)
£652.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,900 unit(s) shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
900 + | £0.604 | £543.60 |
*price indicative
- RS Stock No.:
- 197-2190
- Mfr. Part No.:
- EEHZKV121XUV
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Technology | Polymer | |
Capacitance | 120µF | |
Voltage | 35V | |
Mounting Type | Surface Mount | |
Equivalent Series Resistance | 35mΩ | |
Lead Pitch | 2.2mm | |
Tolerance | ±20% | |
Length | 8mm | |
Maximum Operating Temperature | +125°C | |
Dimensions | 6.3 (Dia) x 8mm | |
Series | ZKU | |
Leakage Current | 42 μA | |
Diameter | 6.3mm | |
Ripple Current | 1700mArms | |
Automotive Standard | AEC-Q200 | |
Polarised | Polar | |
Dissipation Factor | 12% | |
Lifetime | 4000h | |
Minimum Operating Temperature | -55°C | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 120µF | ||
Voltage 35V | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 35mΩ | ||
Lead Pitch 2.2mm | ||
Tolerance ±20% | ||
Length 8mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 6.3 (Dia) x 8mm | ||
Series ZKU | ||
Leakage Current 42 μA | ||
Diameter 6.3mm | ||
Ripple Current 1700mArms | ||
Automotive Standard AEC-Q200 | ||
Polarised Polar | ||
Dissipation Factor 12% | ||
Lifetime 4000h | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- JP
Panasonic Series ZKU Polymer Capacitor, 120μF Capacitance, 35V Voltage - EEHZKV121XUV
This polymer capacitor is designed for surface mounting and features a capacitance of 120 μF with a voltage rating of 35V. Measuring 6.3mm in diameter and 8mm in length, it adheres to the AEC-Q200 automotive standard, ensuring reliability in high-performance applications.
Features & Benefits
• Low equivalent series resistance enhances efficiency
• Operating temperature range from -55 °C to +125 °C supports versatility
• Polarised design ensures proper installation and alignment
• Extended lifetime of 4000 hours under standard use
• Low dissipation factor reduces energy loss
• Small lead pitch of 2.2mm facilitates compact PCB designs
• Operating temperature range from -55 °C to +125 °C supports versatility
• Polarised design ensures proper installation and alignment
• Extended lifetime of 4000 hours under standard use
• Low dissipation factor reduces energy loss
• Small lead pitch of 2.2mm facilitates compact PCB designs
Applications
• Ideal for automotive electronic systems
• Utilised in high-temperature
• Suitable for power management circuitry
• Implemented in compact electronic devices
• Employed in automated equipment and control systems
• Utilised in high-temperature
• Suitable for power management circuitry
• Implemented in compact electronic devices
• Employed in automated equipment and control systems
What performance aspects should be considered when using a polymer capacitor in high-temperature environments?
The maximum operating temperature is +125 °C, making it suitable for applications where heat generation is significant. Its construction allows for stable performance even under these conditions, ensuring longevity and reliability.
How does the ESR affect device performance in banking and filtering applications?
The low equivalent series resistance of 35 mΩ allows for minimal energy loss, which is critical in power supply circuits. This improves overall efficiency and enhances the performance of filtering applications by enabling quicker response times.
What impact does the capacitance tolerance have on circuit behaviour?
With a tolerance of ±20 %, the capacitance can vary, which influences timing and frequency response in circuits. It is essential to account for this variability in precision applications to maintain desired performance levels.
