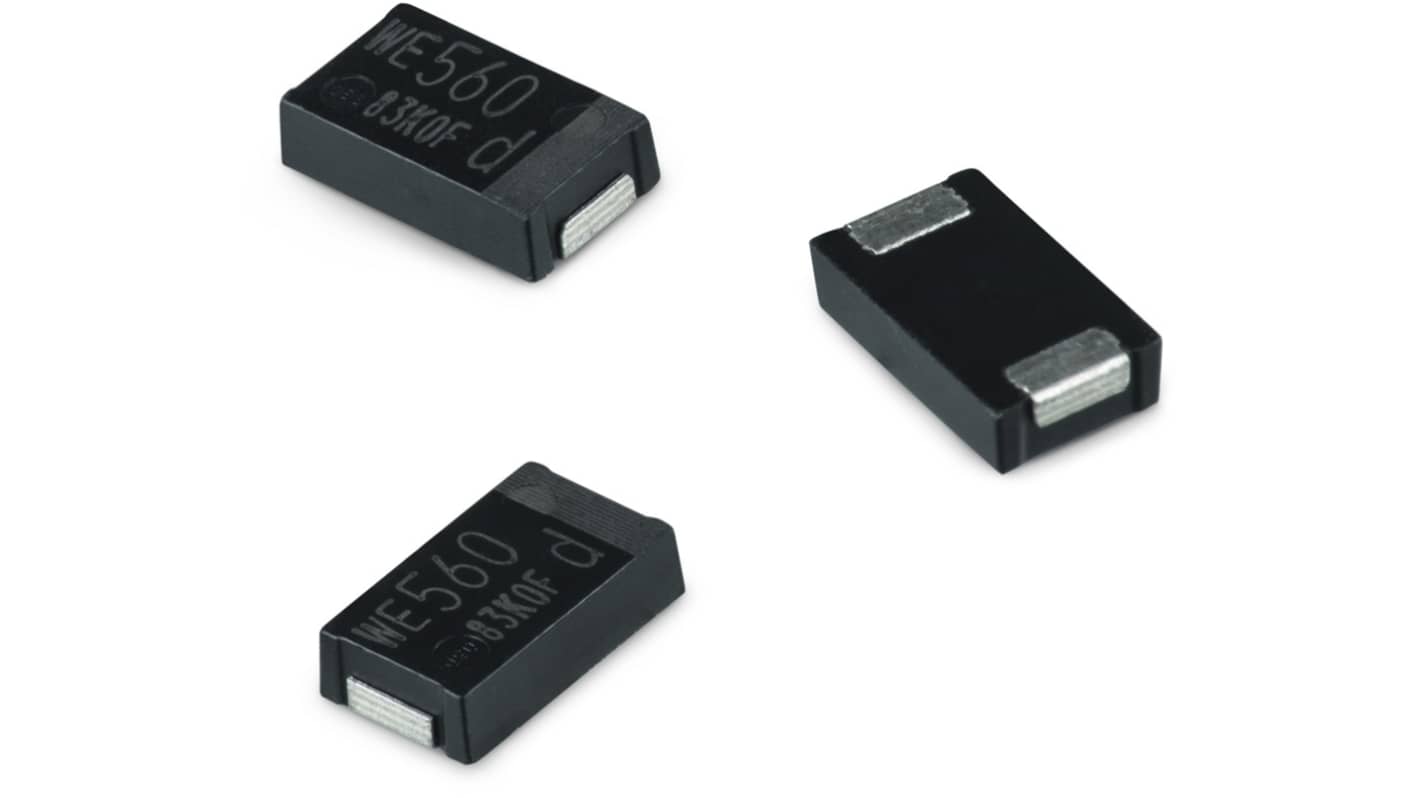

Wurth Elektronik 180μF Surface Mount Polymer Capacitor, 4V dc

View all Polymer Capacitors

Subtotal (1 reel of 3500 units)*

£3,752.00

(exc. VAT)

£4,501.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3500 +£1.072£3,752.00

*price indicative

RS Stock No.:
185-5156
Mfr. Part No.:
875035019002
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Technology

Polymer

Capacitance

180µF

Dielectric Material Family

Aluminium

Voltage

4V dc

Mounting Type

Surface Mount

Equivalent Series Resistance

9mΩ

Tolerance

±20%

Length

7.3mm

Depth

4.3mm

Height

1.9mm

Maximum Operating Temperature

+105°C

Dimensions

7.3 x 4.3 x 1.9mm

Series

WCAP-PHLE

Minimum Operating Temperature

-55°C

Dissipation Factor

6%

Polarised

Polar

Ripple Current

6.3A

Leakage Current

72 μA

Lifetime

2000h

COO (Country of Origin):
JP
Low ESR Product Series
High ripple current capability
Low profile
Mounting style: H-Chip SMT
Capacitance range: 100 μF ‒ 560 μF
Capacitance tolerance: ±20 %
Voltage range (UR): 2 ‒ 6.3 V(DC)
Operating temperature: -55 °C up to +105 °C
Endurance: 2000h @ +105 °C
Dimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9
Recommended soldering: Reflow soldering
Applications
Noise suppression
Input and output capacitor for DC/DC converter
e.g. USB charger, smart meter, power bank, server, SSD
