- RS Stock No.:
- 185-5641
- Mfr. Part No.:
- 875035019003
- Brand:
- Wurth Elektronik
Available to back order for despatch 12/12/2024
Added
Price Each (In a Pack of 5)
£1.92
(exc. VAT)
£2.30
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 20 | £1.92 | £9.60 |
25 - 95 | £1.856 | £9.28 |
100 - 495 | £1.794 | £8.97 |
500 - 1495 | £1.41 | £7.05 |
1500 + | £1.344 | £6.72 |
*price indicative |
- RS Stock No.:
- 185-5641
- Mfr. Part No.:
- 875035019003
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP

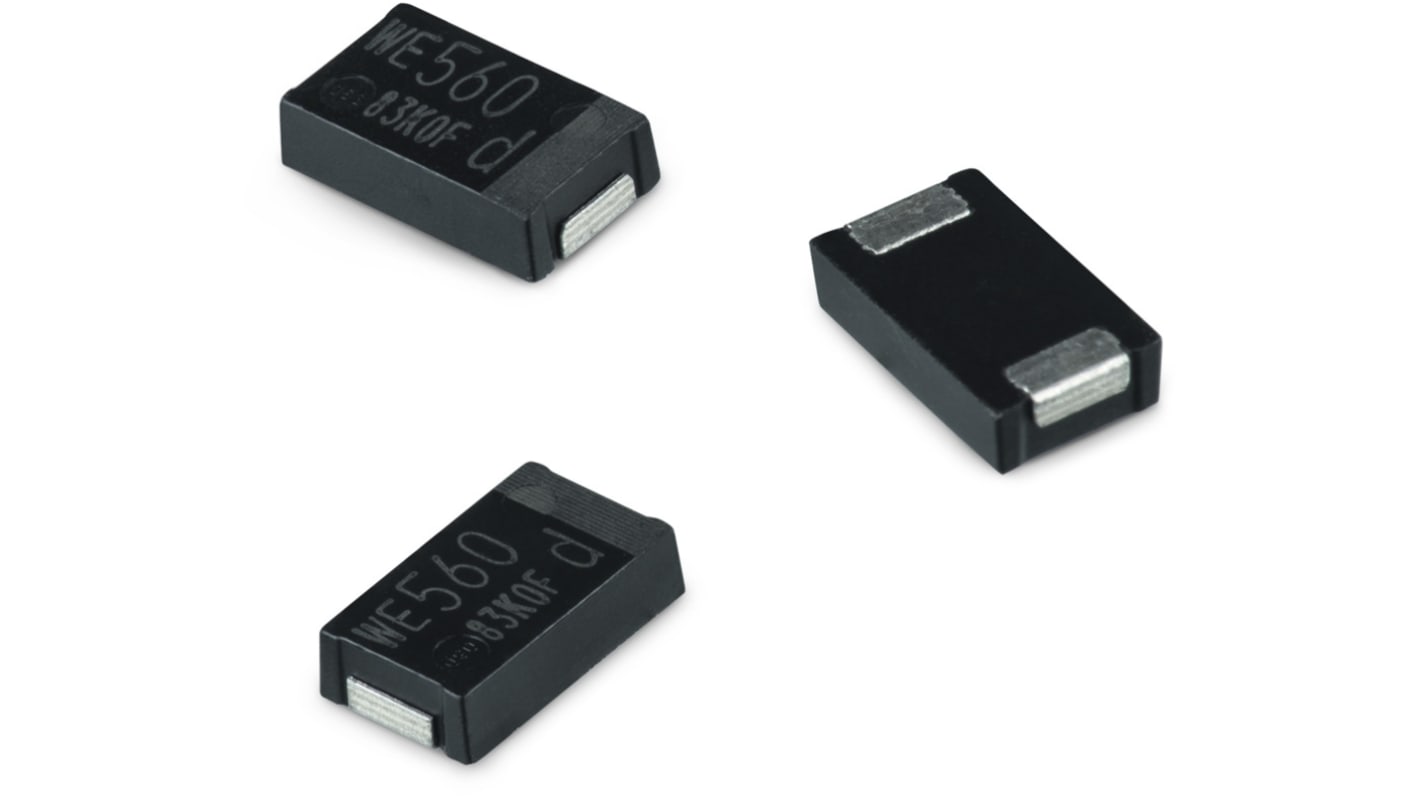

Product Details
Low ESR Product Series
High ripple current capability
Low profile
Mounting style: H-Chip SMT
Capacitance range: 100 μF ‒ 560 μF
Capacitance tolerance: ±20 %
Voltage range (UR): 2 ‒ 6.3 V(DC)
Operating temperature: -55 °C up to +105 °C
Endurance: 2000h @ +105 °C
Dimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9
Recommended soldering: Reflow soldering
Applications
Noise suppression
Input and output capacitor for DC/DC converter
e.g. USB charger, smart meter, power bank, server, SSD
High ripple current capability
Low profile
Mounting style: H-Chip SMT
Capacitance range: 100 μF ‒ 560 μF
Capacitance tolerance: ±20 %
Voltage range (UR): 2 ‒ 6.3 V(DC)
Operating temperature: -55 °C up to +105 °C
Endurance: 2000h @ +105 °C
Dimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9
Recommended soldering: Reflow soldering
Applications
Noise suppression
Input and output capacitor for DC/DC converter
e.g. USB charger, smart meter, power bank, server, SSD
Specifications
Attribute | Value |
---|---|
Technology | Polymer |
Capacitance | 220µF |
Voltage | 4V dc |
Dielectric Material Family | Aluminium |
Mounting Type | Surface Mount |
Equivalent Series Resistance | 9mΩ |
Tolerance | ±20% |
Length | 7.3mm |
Depth | 4.3mm |
Height | 1.9mm |
Maximum Operating Temperature | +105°C |
Dimensions | 7.3 x 4.3 x 1.9mm |
Series | WCAP-PHLE |
Polarised | Polar |
Lifetime | 2000h |
Ripple Current | 6.3A |
Dissipation Factor | 6% |
Minimum Operating Temperature | -55°C |
Leakage Current | 88 μA |
