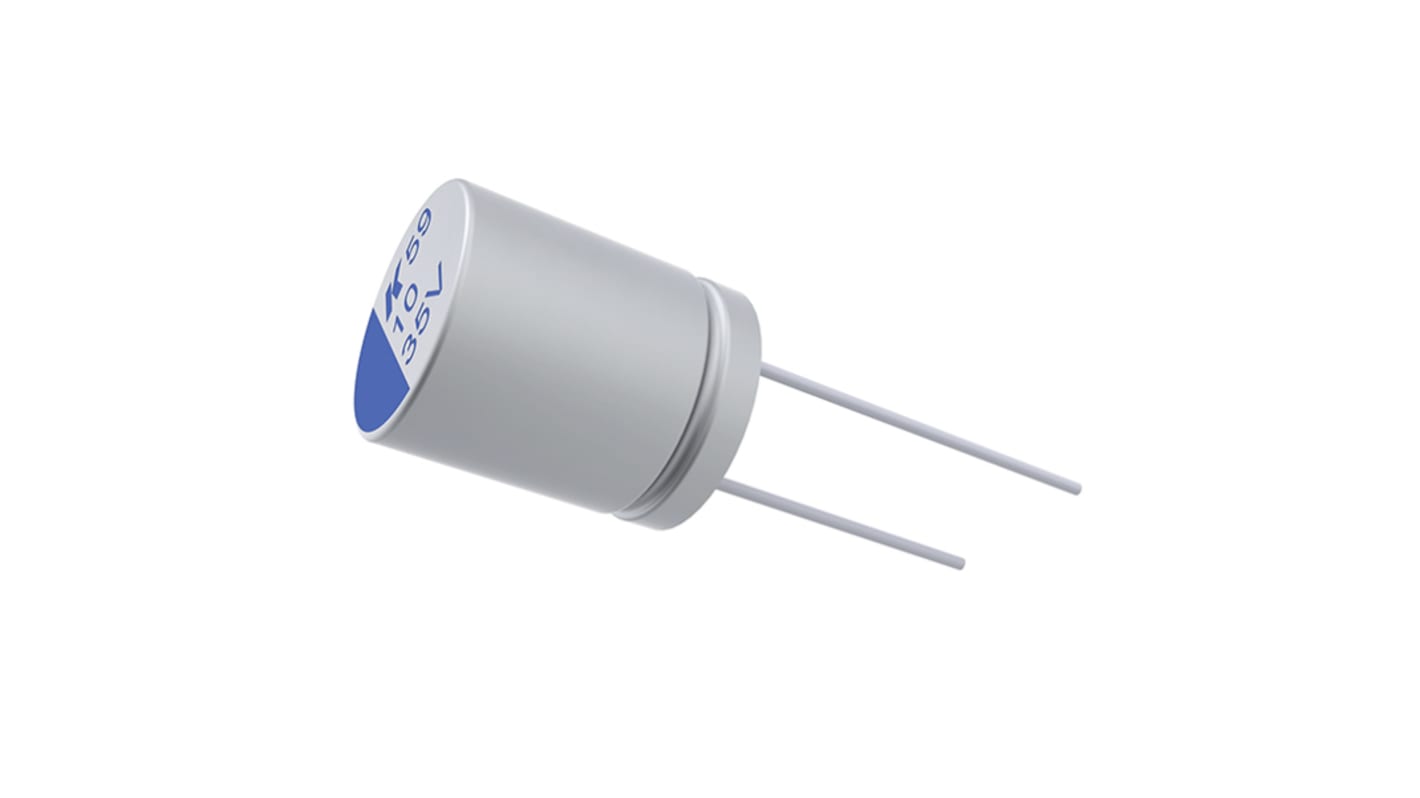

KEMET 56μF Through Hole Polymer Capacitor, 80V dc
- RS Stock No.:
- 179-7237
- Mfr. Part No.:
- A759MS566M1KAAE045
- Brand:
- KEMET
Save 31% when you buy 1000 units
Subtotal (1 pack of 5 units)*
£9.70
(exc. VAT)
£11.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,995 unit(s) shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.94 | £9.70 |
| 50 - 95 | £1.682 | £8.41 |
| 100 - 995 | £1.422 | £7.11 |
| 1000 + | £1.32 | £6.60 |
*price indicative
- RS Stock No.:
- 179-7237
- Mfr. Part No.:
- A759MS566M1KAAE045
- Brand:
- KEMET
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Technology | Electrolytic | |
| Capacitance | 56µF | |
| Dielectric Material Family | Aluminium | |
| Voltage | 80V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 45mΩ | |
| Lead Pitch | 5mm | |
| Tolerance | ±20% | |
| Length | 31mm | |
| Maximum Operating Temperature | +125°C | |
| Height | 12mm | |
| Dimensions | 10 (Dia) x 12mm | |
| Series | A759 | |
| Electrolyte Type | Solid | |
| Diameter | 10mm | |
| Polarised | Polar | |
| Leakage Current | 672 μA | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 12% | |
| Ripple Current | 2.63A | |
| Lifetime | 2000h | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Technology Electrolytic | ||
Capacitance 56µF | ||
Dielectric Material Family Aluminium | ||
Voltage 80V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 45mΩ | ||
Lead Pitch 5mm | ||
Tolerance ±20% | ||
Length 31mm | ||
Maximum Operating Temperature +125°C | ||
Height 12mm | ||
Dimensions 10 (Dia) x 12mm | ||
Series A759 | ||
Electrolyte Type Solid | ||
Diameter 10mm | ||
Polarised Polar | ||
Leakage Current 672 μA | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 12% | ||
Ripple Current 2.63A | ||
Lifetime 2000h | ||
