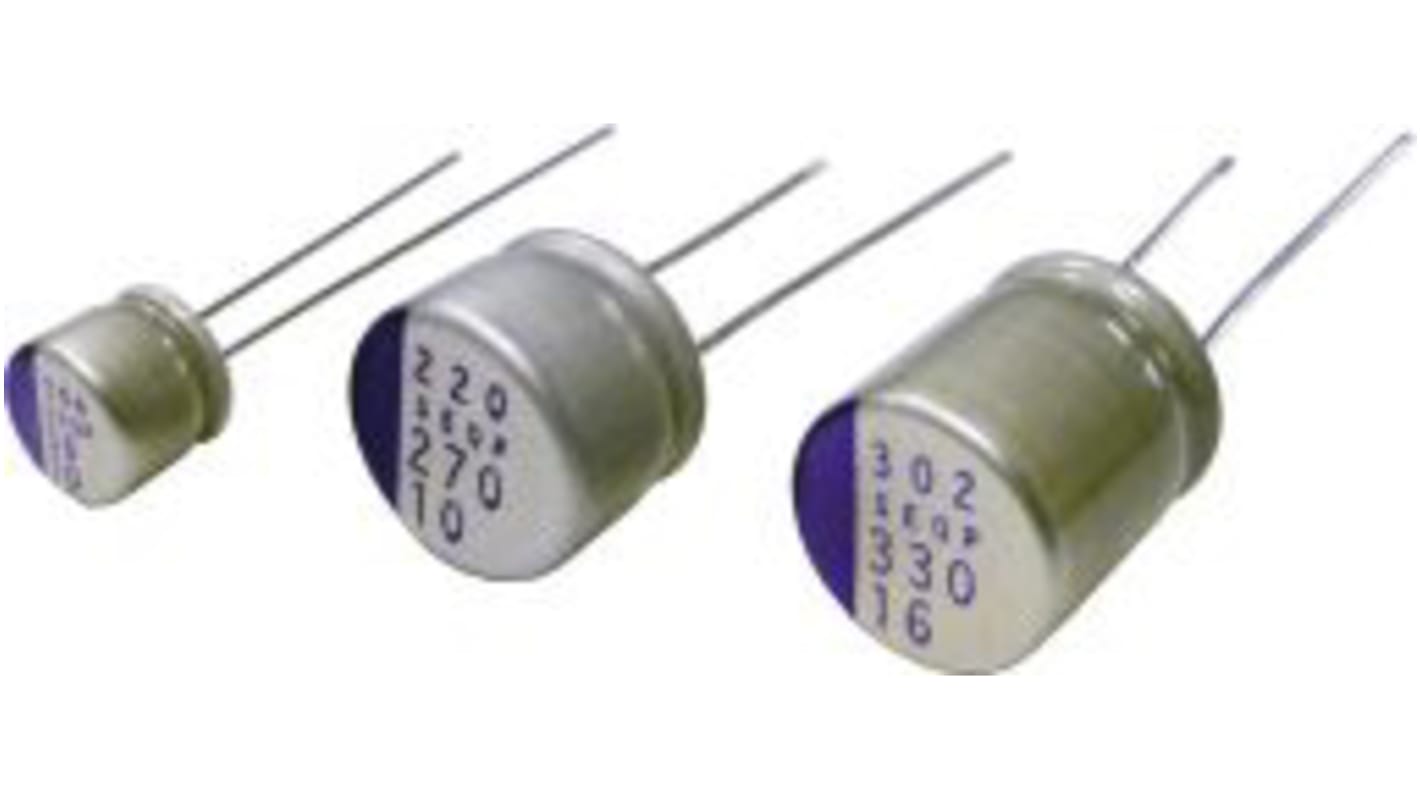

Panasonic 100μF Through Hole Polymer Capacitor, 20V dc
- RS Stock No.:
- 179-3614
- Mfr. Part No.:
- 20SEQP100M
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£5.99
(exc. VAT)
£7.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.198 | £5.99 |
| 25 - 45 | £1.166 | £5.83 |
| 50 - 120 | £1.132 | £5.66 |
| 125 - 245 | £1.10 | £5.50 |
| 250 + | £1.076 | £5.38 |
*price indicative
- RS Stock No.:
- 179-3614
- Mfr. Part No.:
- 20SEQP100M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 100µF | |
| Dielectric Material Family | Aluminium | |
| Voltage | 20V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 24mΩ | |
| Lead Pitch | 3.5mm | |
| Tolerance | ±20% | |
| Height | 12mm | |
| Maximum Operating Temperature | +125°C | |
| Dimensions | 8 (Dia) x 12mm | |
| Series | SEQP | |
| Electrolyte Type | Solid | |
| Lifetime | 1000h | |
| Leakage Current | 400 μA | |
| Polarised | Polar | |
| Diameter | 8mm | |
| Minimum Operating Temperature | -55°C | |
| Ripple Current | 1.05 A, 3.32A | |
| Dissipation Factor | 15% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 100µF | ||
Dielectric Material Family Aluminium | ||
Voltage 20V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 24mΩ | ||
Lead Pitch 3.5mm | ||
Tolerance ±20% | ||
Height 12mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 8 (Dia) x 12mm | ||
Series SEQP | ||
Electrolyte Type Solid | ||
Lifetime 1000h | ||
Leakage Current 400 μA | ||
Polarised Polar | ||
Diameter 8mm | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 1.05 A, 3.32A | ||
Dissipation Factor 15% | ||
- COO (Country of Origin):
- JP
Engineered to handle a broad range of technologies, Panasonic’s Polymer Capacitors can be designed into the most demanding applications
Ultra Low ESR
Small Size
High Ripple Current
High Endurance Based on Temperature De-Rating
Relatively Safer Short Circuit Mode Over Tantalum Capacitors
Small Size
High Ripple Current
High Endurance Based on Temperature De-Rating
Relatively Safer Short Circuit Mode Over Tantalum Capacitors
Panasonic's OS-CON Aluminum-Polymer Solid Capacitors are available in both surface-mount and through hole types. These Solid Electrolyte Aluminum OS-CON Capacitors utilize aluminum and a highly conductive polymer material to offer low ESR, excellent noise reduction and ripple current capabilities. The OS-CON Series parts are characterized by a long-life and minimal ESR changes throughout the entire product line’s rated temperature range.
