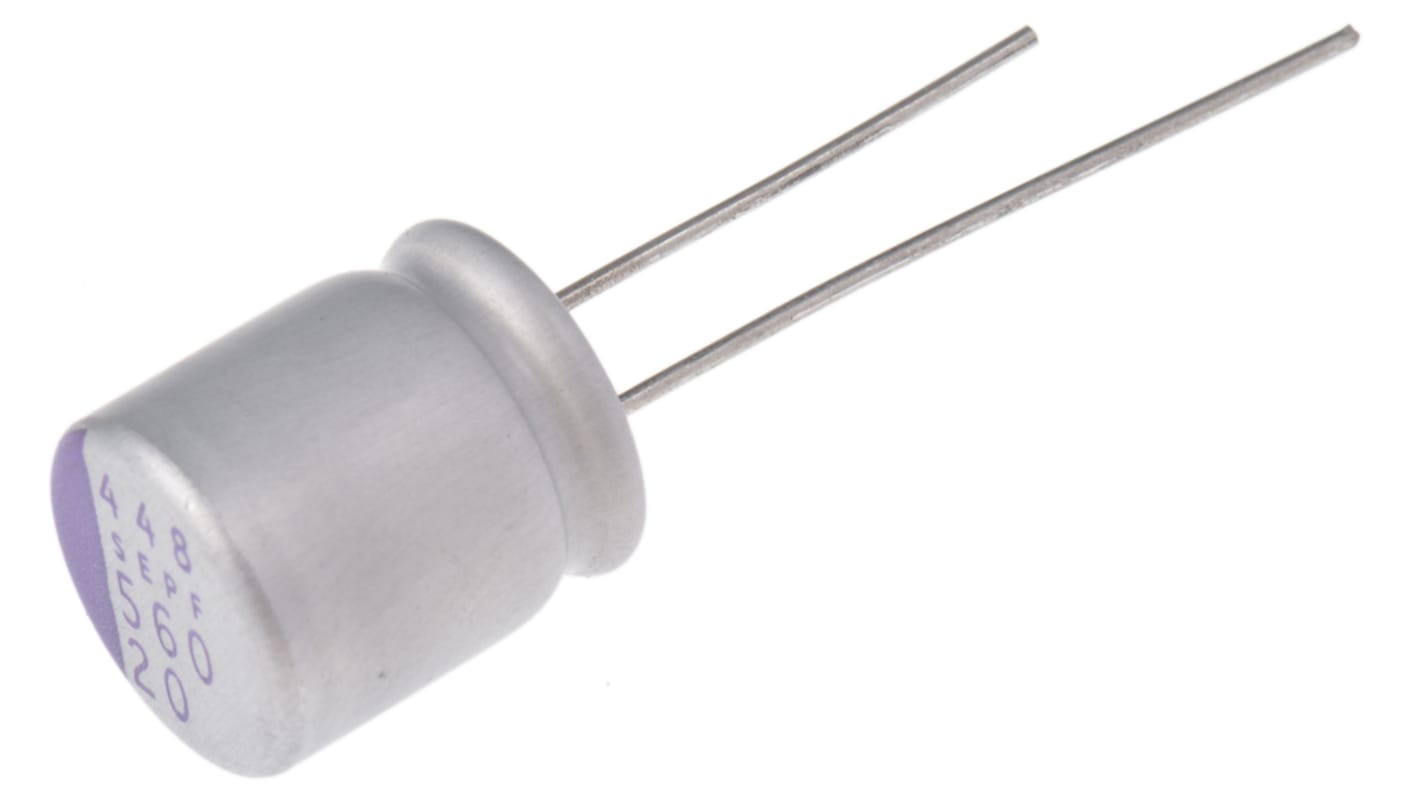

Panasonic 560μF Through Hole Polymer Capacitor, 20V dc
- RS Stock No.:
- 100-0075
- Mfr. Part No.:
- 20SEPF560M
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 bag of 200 units)*
£180.80
(exc. VAT)
£217.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 200 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 200 - 200 | £0.904 | £180.80 |
| 400 - 600 | £0.88 | £176.00 |
| 800 - 1800 | £0.856 | £171.20 |
| 2000 - 3800 | £0.834 | £166.80 |
| 4000 + | £0.814 | £162.80 |
*price indicative
- RS Stock No.:
- 100-0075
- Mfr. Part No.:
- 20SEPF560M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 560µF | |
| Voltage | 20V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 12mΩ | |
| Lead Pitch | 5mm | |
| Tolerance | ±20% | |
| Length | 13mm | |
| Maximum Operating Temperature | +105°C | |
| Height | 13mm | |
| Dimensions | 10 (Dia) x 13mm | |
| Series | SEPF | |
| Electrolyte Type | Solid | |
| Ripple Current | 5.4A | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 12% | |
| Diameter | 10mm | |
| Lifetime | 5000h | |
| Leakage Current | 2240 μA | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 560µF | ||
Voltage 20V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 12mΩ | ||
Lead Pitch 5mm | ||
Tolerance ±20% | ||
Length 13mm | ||
Maximum Operating Temperature +105°C | ||
Height 13mm | ||
Dimensions 10 (Dia) x 13mm | ||
Series SEPF | ||
Electrolyte Type Solid | ||
Ripple Current 5.4A | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 12% | ||
Diameter 10mm | ||
Lifetime 5000h | ||
Leakage Current 2240 μA | ||
Polarised Polar | ||
- COO (Country of Origin):
- JP
OSCON Solid Electrolytic radial SEPF series
Panasonic OS-CON SEPF electrolytic capacitors have a solid aluminium construction with a high conductive polymer. These aluminium capacitors cater for high voltage up to 35 V dc and feature large capacitance up to 1000μF.
5000 h guarantee at +105°C
Excellent noise reduction capability
Long life span
High voltage
High reliability
Low ESR and high ripple current
Radial lead type
Halogen free
Excellent noise reduction capability
Long life span
High voltage
High reliability
Low ESR and high ripple current
Radial lead type
Halogen free
Applications
These radial capacitors are recommended for use in industrial infrastructure in industrial PCs, motor drivers, measuring instruments, power supplies, security cameras and inverters. Suitable uses for these electrolytic capacitors include infotainment and comfort accessories within automotive applications and ICT applications such as PCs, base stations, SSD and data centres. SEPF capacitors are also suitable for home appliances such as air conditioners and home information appliances.
Solid Radial 105°C
