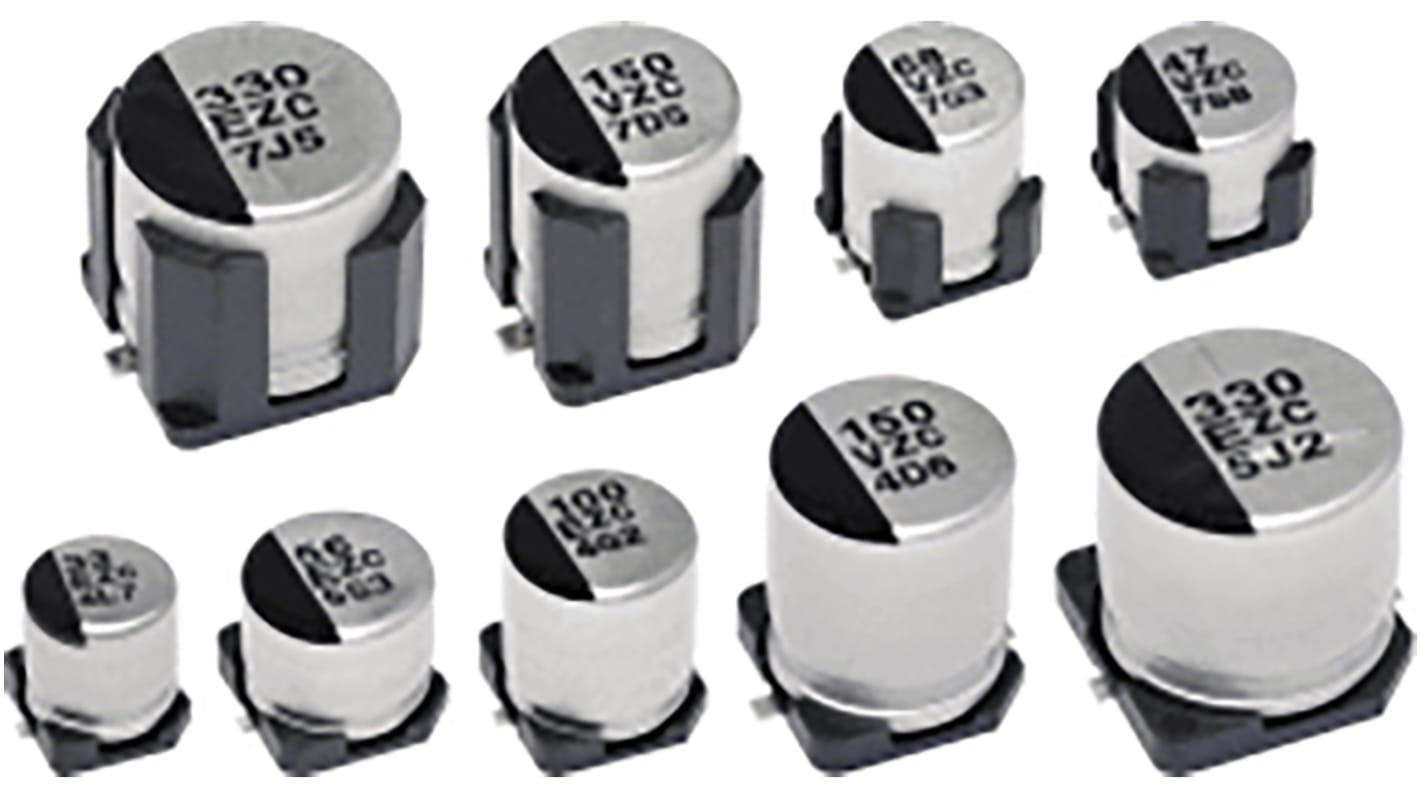

Panasonic 270μF Surface Mount Polymer Capacitor, 35V dc
- RS Stock No.:
- 179-3426
- Mfr. Part No.:
- EEHZC1V271V
- Brand:
- Panasonic
Subtotal (1 reel of 500 units)*
£452.00
(exc. VAT)
£542.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
500 + | £0.904 | £452.00 |
*price indicative
- RS Stock No.:
- 179-3426
- Mfr. Part No.:
- EEHZC1V271V
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Technology | Hybrid | |
Capacitance | 270µF | |
Voltage | 35V dc | |
Dielectric Material Family | Aluminium | |
Mounting Type | Surface Mount | |
Equivalent Series Resistance | 20mΩ | |
Lead Pitch | 4.6mm | |
Tolerance | ±20% | |
Length | 10.2mm | |
Height | 12mm | |
Maximum Operating Temperature | +125°C | |
Dimensions | 10 (Dia) x 10.2mm | |
Series | ZC | |
Ripple Current | 2 A, 2.8A | |
Leakage Current | 94.5 μA | |
Diameter | 10mm | |
Dissipation Factor | 0.12% | |
Minimum Operating Temperature | -55°C | |
Automotive Standard | AEC-Q200 | |
Polarised | Polar | |
Lifetime | 1000h | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Technology Hybrid | ||
Capacitance 270µF | ||
Voltage 35V dc | ||
Dielectric Material Family Aluminium | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 20mΩ | ||
Lead Pitch 4.6mm | ||
Tolerance ±20% | ||
Length 10.2mm | ||
Height 12mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 10 (Dia) x 10.2mm | ||
Series ZC | ||
Ripple Current 2 A, 2.8A | ||
Leakage Current 94.5 μA | ||
Diameter 10mm | ||
Dissipation Factor 0.12% | ||
Minimum Operating Temperature -55°C | ||
Automotive Standard AEC-Q200 | ||
Polarised Polar | ||
Lifetime 1000h | ||
- COO (Country of Origin):
- JP
Very low ESR and high frequency characteristics
Stable characteristic not dependent on temperature and voltage
Higher safety than general tantalum electrolytic capacitors
Stable characteristic not dependent on temperature and voltage
Higher safety than general tantalum electrolytic capacitors
High voltage is realized by the polymer and liquid electrolyte. (80 V.DC max.)
Long life, Endurance : 105℃ 10000h~150℃ 1000h
Capacitor with the electrolyte fused with conductive polymer and electrolyte liquid
As features of both conductive polymer and electrolyte liquid, large ripple current(low Equivalent Series Resistance : ESR), low leakage current and high reliability contribute to downsizing and high reliability of the equipment
Suitable for automotive equipment and base stations which need compact and high reliability components.
Long life, Endurance : 105℃ 10000h~150℃ 1000h
Capacitor with the electrolyte fused with conductive polymer and electrolyte liquid
As features of both conductive polymer and electrolyte liquid, large ripple current(low Equivalent Series Resistance : ESR), low leakage current and high reliability contribute to downsizing and high reliability of the equipment
Suitable for automotive equipment and base stations which need compact and high reliability components.
