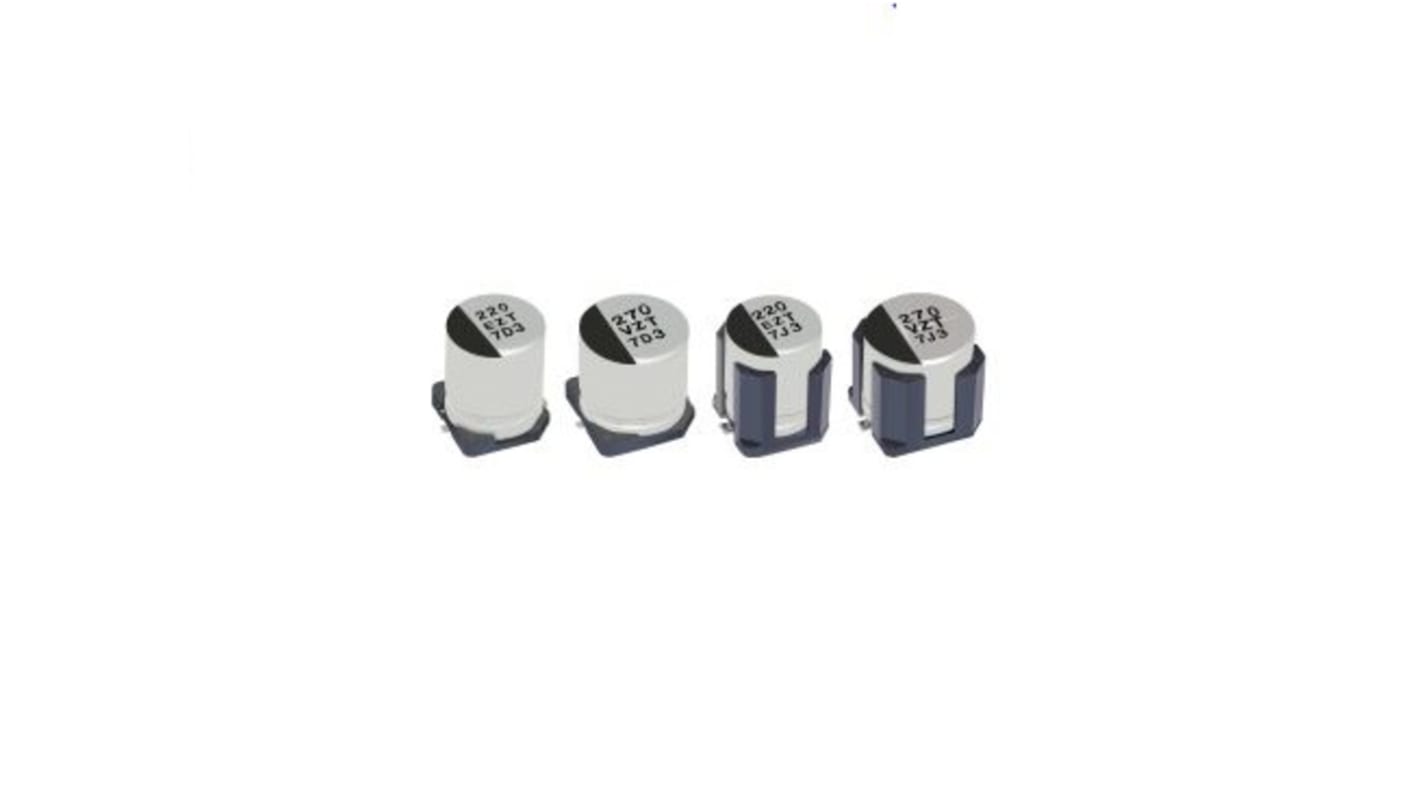

Panasonic 150μF Surface Mount Polymer Capacitor, 35V dc

View all Polymer Capacitors

Subtotal (1 reel of 500 units)*

£431.50

(exc. VAT)

£518.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
500 +£0.863£431.50

*price indicative

Sponsored
Panasonic 220μF Electrolytic Aluminium Capacitor EEUFM1E221
Panasonic Logo
Precision Performance with Panasonic – Aluminium Capacitors for Demanding Applications
Panasonic Aluminium Capacitors offer reliability, low ESR, and excellent ripple current handling in compact designs. They are built for long service life. Perfect for automotive, industrial, and power applications, these components maintain consistent performance in real-world operating environments.
Shop Here
RS Stock No.:
210-6007
Mfr. Part No.:
EEHZT1V151V
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Technology

Hybrid

Capacitance

150µF

Voltage

35V dc

Mounting Type

Surface Mount

Equivalent Series Resistance

22mΩ

Lead Pitch

4.6mm

Tolerance

±20%

Length

10.5mm

Height

12mm

Maximum Operating Temperature

+125°C

Dimensions

8 x 10.5mm

Series

ZT

Electrolyte Type

Solid

Lifetime

4000h

Ripple Current

2.9A

Leakage Current

52.5 μA

Polarised

Polar

Diameter

8mm

Minimum Operating Temperature

-55°C

Dissipation Factor

12%

COO (Country of Origin):
JP
The Panasonic ZT series V type uses hybrid technology. It has voltage rating of 35 V and capacitance of 150 uF with 125 °C maximum temperature range. It provides high safety with compact design. It has ESR value 22 mOhm with over all dimensions of 8x10.5 mm.

Endurance 4000 h at 125 ℃
Higher ripple current (75 % to 118 % higher than ZC series)
Vibration-proof product is available upon request.
AEC-Q200 compliant
RoHS compliant
