Panasonic 47μF Surface Mount Polymer Capacitor, 35V dc
- RS Stock No.:
- 179-3383
- Mfr. Part No.:
- 35SVPD47M
- Brand:
- Panasonic
Subtotal (1 reel of 400 units)*
£303.20
(exc. VAT)
£364.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 400 + | £0.758 | £303.20 |
*price indicative
- RS Stock No.:
- 179-3383
- Mfr. Part No.:
- 35SVPD47M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 47µF | |
| Dielectric Material Family | Aluminium | |
| Voltage | 35V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 30mΩ | |
| Lead Pitch | 4.6mm | |
| Tolerance | ±20% | |
| Length | 12.6mm | |
| Height | 12.6mm | |
| Maximum Operating Temperature | +125°C | |
| Dimensions | 10 (Dia) x 12.6mm | |
| Series | SVPD | |
| Electrolyte Type | Solid | |
| Ripple Current | 1.15 A, 3.65A | |
| Dissipation Factor | 0.12% | |
| Lifetime | 2000h | |
| Leakage Current | 329 μA | |
| Polarised | Polar | |
| Diameter | 10mm | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 47µF | ||
Dielectric Material Family Aluminium | ||
Voltage 35V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 30mΩ | ||
Lead Pitch 4.6mm | ||
Tolerance ±20% | ||
Length 12.6mm | ||
Height 12.6mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 10 (Dia) x 12.6mm | ||
Series SVPD | ||
Electrolyte Type Solid | ||
Ripple Current 1.15 A, 3.65A | ||
Dissipation Factor 0.12% | ||
Lifetime 2000h | ||
Leakage Current 329 μA | ||
Polarised Polar | ||
Diameter 10mm | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- JP

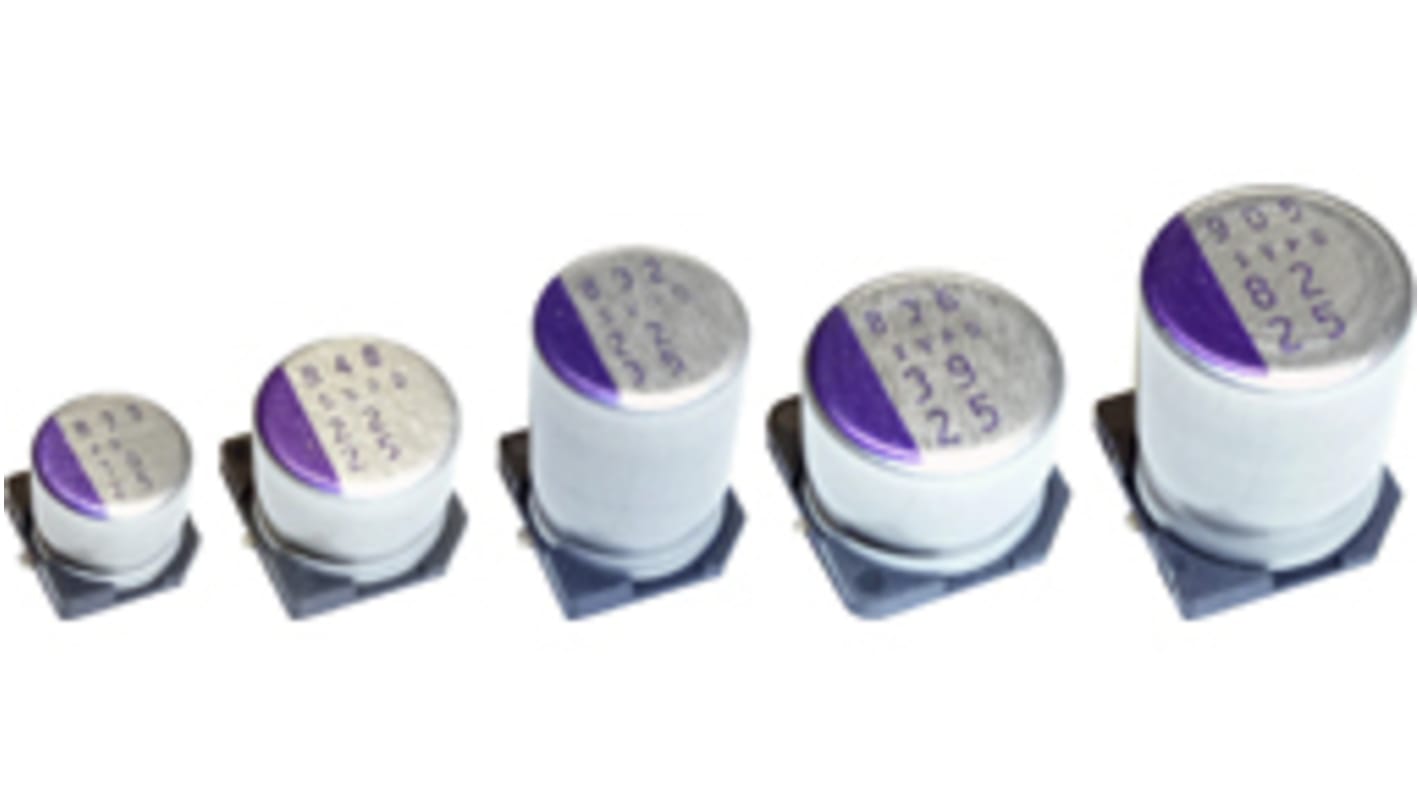

OSCON Solid Electrolytic SVPD Series
Endurance of 2000h at 125℃
Available for high reliability applications such as Automotive and Industrial equipment
Available for high reliability applications such as Automotive and Industrial equipment
Low ESR obtained by using conductive polymer electrolyte.
Pb-free
Long life
Superior temperature characteristics.
Wide capacitance range from 1μF to 2700μF.
High voltage, high reliability.
Pb-free
Long life
Superior temperature characteristics.
Wide capacitance range from 1μF to 2700μF.
High voltage, high reliability.
OS-CON is an aluminum solid capacitor with high conductive polymer. OS-CON acquires low Equivalent Series Resistance (ESR), excellent noise reduction capability and frequency characteristics. In addition, OS-CON has a long life span and its ESR has little change even at low temperatures since the electrolyte is solid.
Super high voltage : 100 V.DC max.
Low ESR and High ripple current (C10 size : 16 V.DC / 8 mΩ / 5800 mAr.m.s.)
Long life, Endurance : 105 ℃ 5000 h
Low ESR and High ripple current (C10 size : 16 V.DC / 8 mΩ / 5800 mAr.m.s.)
Long life, Endurance : 105 ℃ 5000 h
