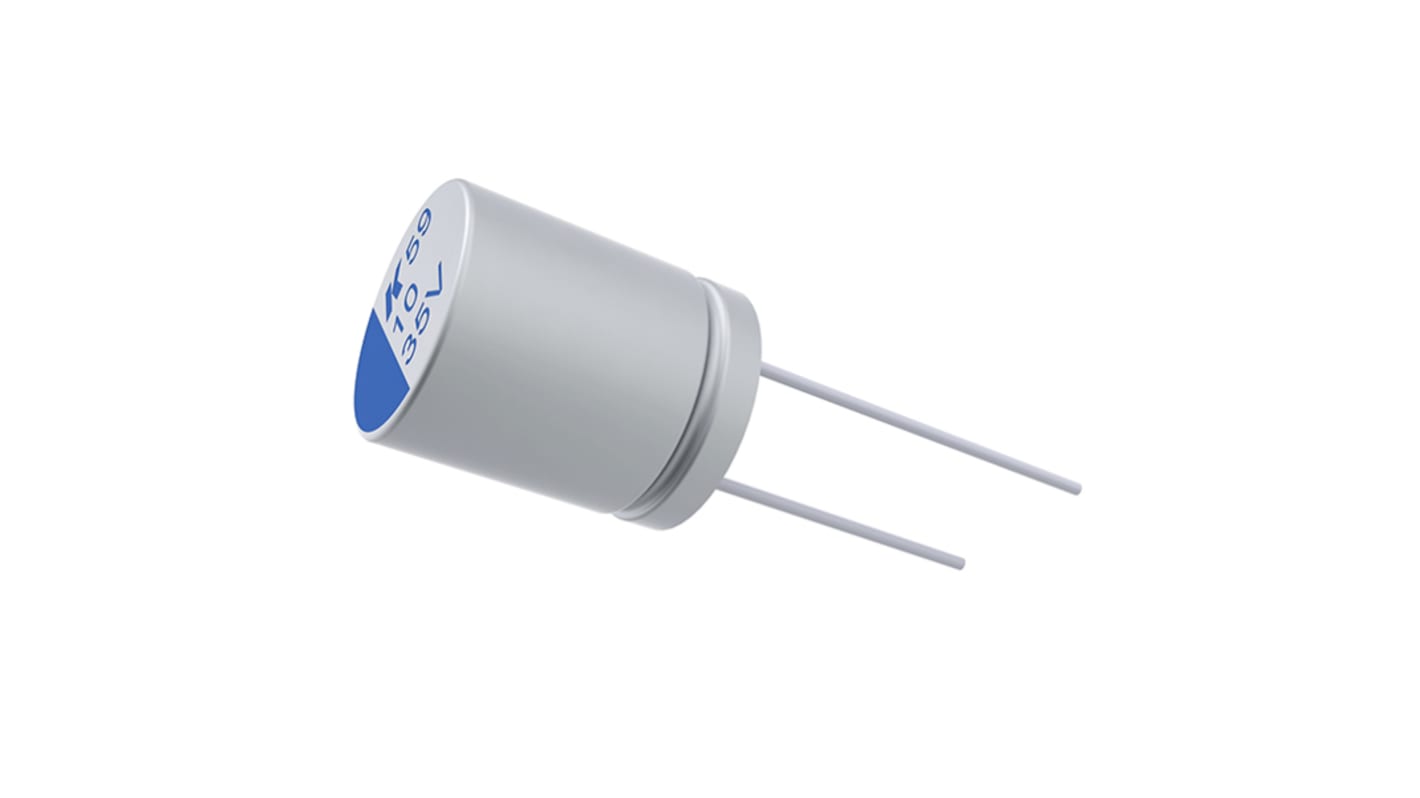

KEMET 47μF Through Hole Polymer Capacitor, 63V dc
- RS Stock No.:
- 173-9406
- Mfr. Part No.:
- A759KS476M1JAAE068
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.26
(exc. VAT)
£7.51
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5,000 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £1.252 | £6.26 |
25 - 45 | £1.19 | £5.95 |
50 - 120 | £1.102 | £5.51 |
125 - 245 | £1.026 | £5.13 |
250 + | £0.926 | £4.63 |
*price indicative
- RS Stock No.:
- 173-9406
- Mfr. Part No.:
- A759KS476M1JAAE068
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Technology | Electrolytic | |
Capacitance | 47µF | |
Voltage | 63V dc | |
Dielectric Material Family | Aluminium | |
Mounting Type | Through Hole | |
Equivalent Series Resistance | 68mΩ | |
Lead Pitch | 3.5mm | |
Tolerance | ±20% | |
Height | 12mm | |
Maximum Operating Temperature | +125°C | |
Dimensions | 8 (Dia) x 12mm | |
Series | A759 | |
Electrolyte Type | Solid | |
Ripple Current | 1.63A | |
Lifetime | 2000h | |
Leakage Current | 444.15 μA | |
Polarised | Polar | |
Dissipation Factor | 12% | |
Minimum Operating Temperature | -55°C | |
Diameter | 8mm | |
Select all | ||
---|---|---|
Brand KEMET | ||
Technology Electrolytic | ||
Capacitance 47µF | ||
Voltage 63V dc | ||
Dielectric Material Family Aluminium | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 68mΩ | ||
Lead Pitch 3.5mm | ||
Tolerance ±20% | ||
Height 12mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 8 (Dia) x 12mm | ||
Series A759 | ||
Electrolyte Type Solid | ||
Ripple Current 1.63A | ||
Lifetime 2000h | ||
Leakage Current 444.15 μA | ||
Polarised Polar | ||
Dissipation Factor 12% | ||
Minimum Operating Temperature -55°C | ||
Diameter 8mm | ||
- COO (Country of Origin):
- CN
KEMETs A759 Single-Ended Conductive Polymer AluminumSolid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A759 highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties, is able to withstand higher ripple currents duringnormal operation. The A759 is ideally suited for industrial and commercial applications. Typical applications include long life LED drivers, professional power amplifiers and industrial power supplies).
Through-hole form factor
High Voltage
Low impedance
High ripple current
125°C/2,000 hours
High Voltage
Low impedance
High ripple current
125°C/2,000 hours
