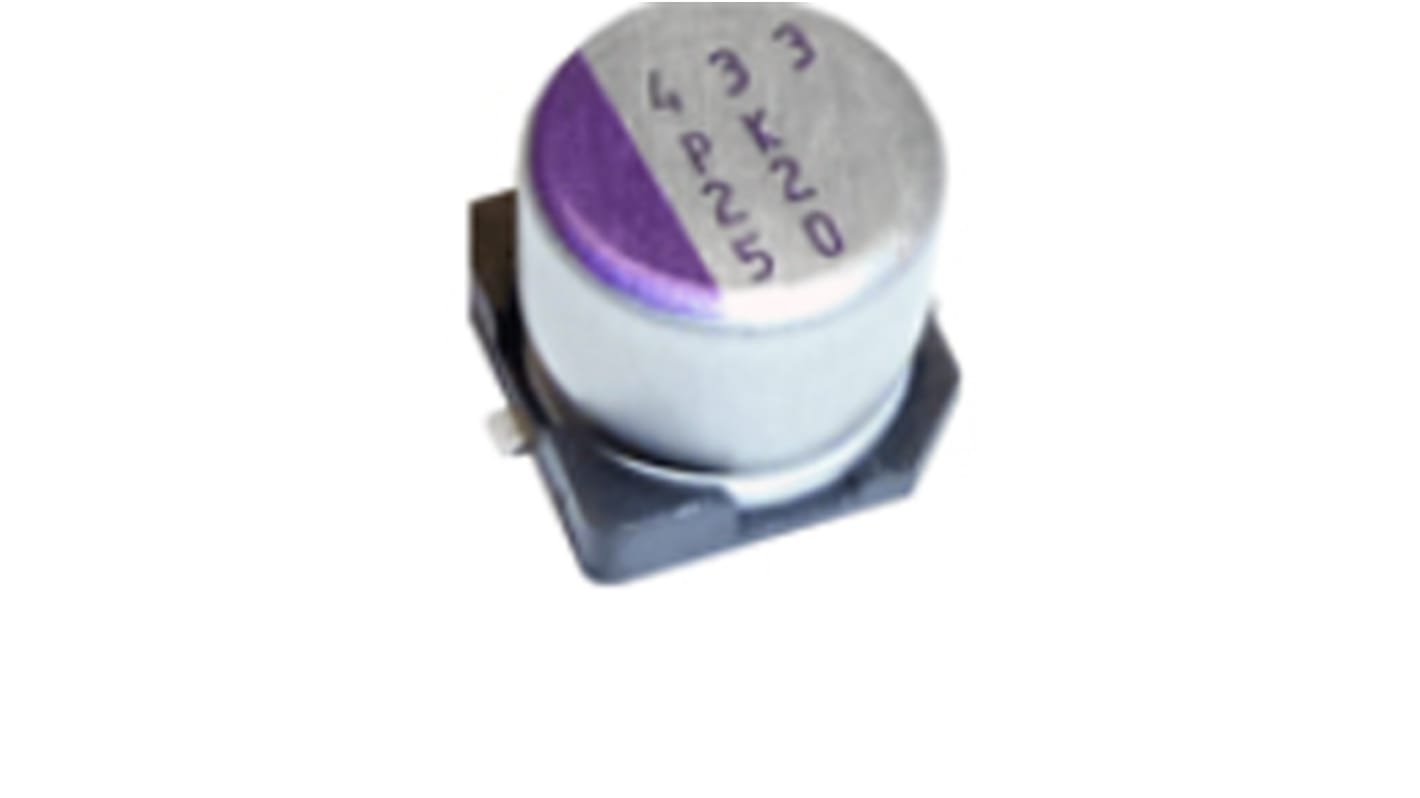

Panasonic 22μF Surface Mount Polymer Capacitor, 50V dc
- RS Stock No.:
- 144-6586
- Mfr. Part No.:
- 50SVPK22M
- Brand:
- Panasonic
Subtotal (1 reel of 1000 units)*
£620.00
(exc. VAT)
£740.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.62 | £620.00 |
*price indicative
- RS Stock No.:
- 144-6586
- Mfr. Part No.:
- 50SVPK22M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 22µF | |
| Voltage | 50V dc | |
| Dielectric Material Family | Aluminium | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 35mΩ | |
| Lead Pitch | 2.1mm | |
| Tolerance | ±20% | |
| Length | 6.6mm | |
| Depth | 6.6mm | |
| Maximum Operating Temperature | +125°C | |
| Height | 5.9mm | |
| Dimensions | 6.6 x 6.6 x 5.9mm | |
| Series | SVPK | |
| Electrolyte Type | Solid | |
| Ripple Current | 820 mArms, 2600mArms | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 12% | |
| Leakage Current | 220 μA | |
| Polarised | Polar | |
| Diameter | 6.3mm | |
| Lifetime | 1000h | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 22µF | ||
Voltage 50V dc | ||
Dielectric Material Family Aluminium | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 35mΩ | ||
Lead Pitch 2.1mm | ||
Tolerance ±20% | ||
Length 6.6mm | ||
Depth 6.6mm | ||
Maximum Operating Temperature +125°C | ||
Height 5.9mm | ||
Dimensions 6.6 x 6.6 x 5.9mm | ||
Series SVPK | ||
Electrolyte Type Solid | ||
Ripple Current 820 mArms, 2600mArms | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 12% | ||
Leakage Current 220 μA | ||
Polarised Polar | ||
Diameter 6.3mm | ||
Lifetime 1000h | ||
- COO (Country of Origin):
- JP
OSCON SVPK Series Conductive Polymer Aluminum Solid Capacitors
Panasonic OS- CON SVPK Series Polymer aluminium capacitors utilize aluminium and a high conductivity polymer material to offer low ESR, noise reduction and ripple current capabilities. These capacitors are high temperature reflow solder capable, and offer a capacitance range up to 470 μF.Temperature range –55 °C to +125 °C.
Features
Long lifetime at high temperatures
Stable temperature characteristics
Stable temperature characteristics
Applications
PC Server
LED lighting
Audio /Video equipment
Test and Measurement
Set top box
Router/switch/base station
LED lighting
Audio /Video equipment
Test and Measurement
Set top box
Router/switch/base station
Solid Radial 105°C
