Oceansmile 2 PoE Injector
- RS Stock No.:
- 252-6696
- Mfr. Part No.:
- POE4805-US
- Brand:
- Oceansmile
Subtotal (1 unit)*
£8.23
(exc. VAT)
£9.88
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 189 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.23 |
*price indicative
- RS Stock No.:
- 252-6696
- Mfr. Part No.:
- POE4805-US
- Brand:
- Oceansmile
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Oceansmile | |
| Product Type | PoE Injector | |
| MTBF | 30kH | |
| Length | 83mm | |
| Width | 47mm | |
| Depth | 53.5mm | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | EN60950-1, IEC61000-4-5, EN55022, GB4943, IEC61000-4-2, IEC61000-4-29, IEC61000-4-4 | |
| Number of Ethernet Ports | 2 | |
| Series | POE-4805 | |
| Select all | ||
|---|---|---|
Brand Oceansmile | ||
Product Type PoE Injector | ||
MTBF 30kH | ||
Length 83mm | ||
Width 47mm | ||
Depth 53.5mm | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals EN60950-1, IEC61000-4-5, EN55022, GB4943, IEC61000-4-2, IEC61000-4-29, IEC61000-4-4 | ||
Number of Ethernet Ports 2 | ||
Series POE-4805 | ||

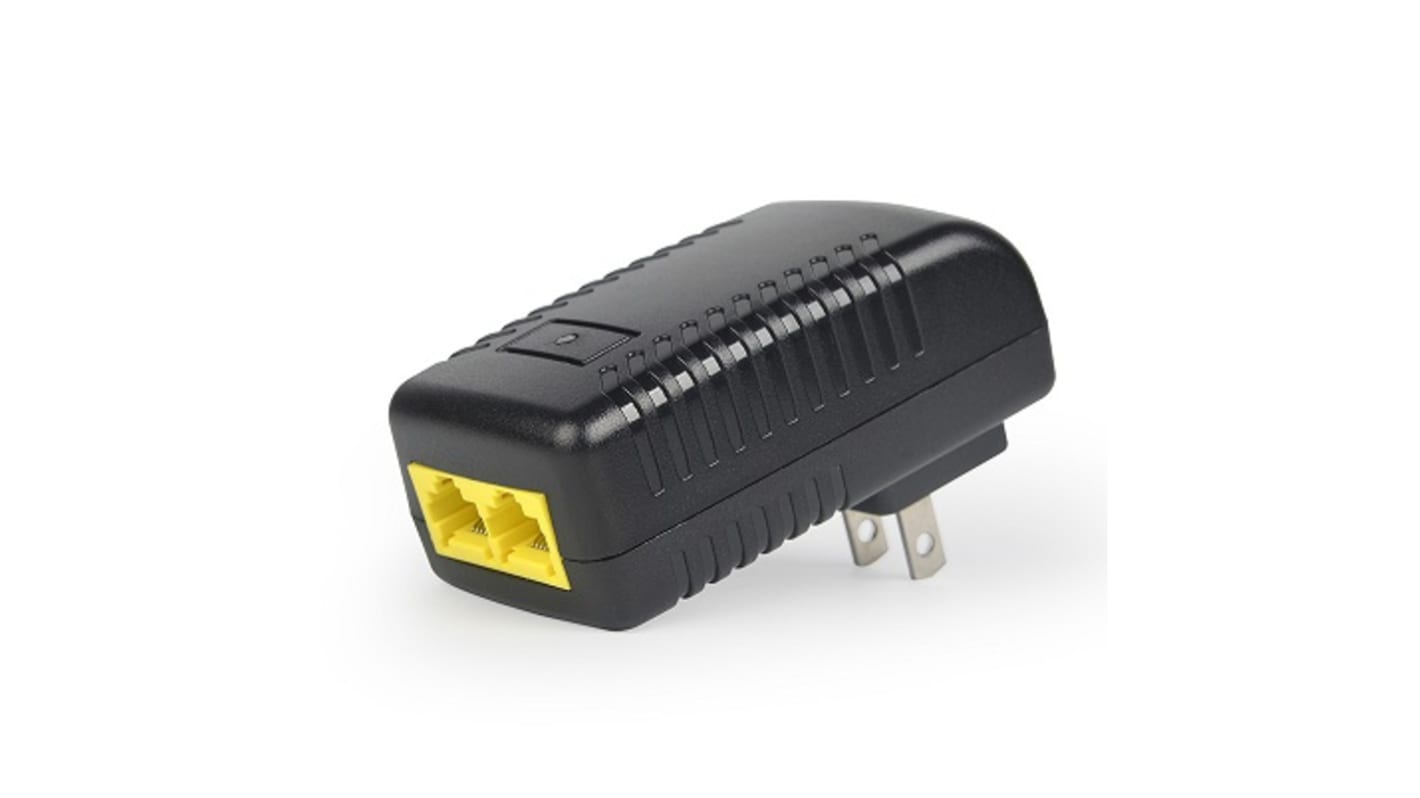

The oceansmile injector adapter can be used to power devices with POE support, such as IP cameras or wireless access points (WAPs). Compact, Wall-mounted design makes it easy to install the adapter in areas where space is limited, and can be set in seconds without the need for configuration.
Output- 48 V DC 500ma
Input- 100-240 V 50/60 Hz
Yield- 48v-0.5a
Input current- 0.5A
Efficiency- 80% min
Line / load control- 3% / 5%
Rotational speed / noise- 200mv p-p
Rotation delay- 2 seconds max
Lifting time- 40 MS max
Short circuit, overcurrent and voltage protection
Compact, portable size with a comfortable design on the wall
