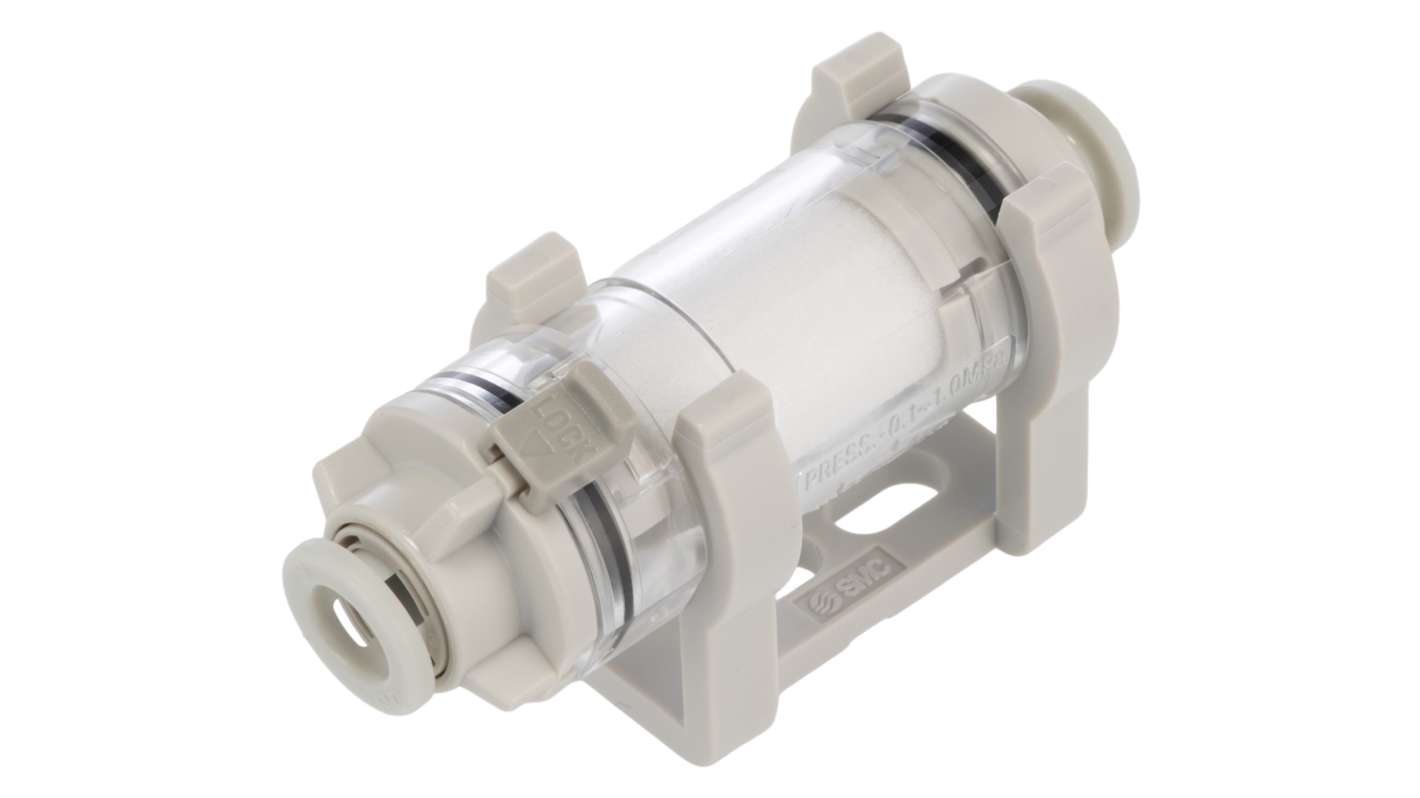

SMC Vacuum Filter - ZFC Series, 5 μm, 6 mm Dia Port Connection
- RS Stock No.:
- 175-9945
- Mfr. Part No.:
- ZFC54-B
- Brand:
- SMC
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£13.84
(exc. VAT)
£16.61
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 200 unit(s) ready to ship
- Plus 274 unit(s) ready to ship from another location
- Plus 313 unit(s) shipping from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.84 |
| 5 - 9 | £13.44 |
| 10 + | £12.99 |
*price indicative
- RS Stock No.:
- 175-9945
- Mfr. Part No.:
- ZFC54-B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Vacuum Filter | |
| Port Size | 6 mm Dia | |
| Filtration Size | 5μm | |
| Connection Thread Standard | Metric | |
| Series | ZFC | |
| Maximum Flow Rate | 20L/min | |
| Housing Material | Resin Polybutylene | |
| Seal Material | Hydrogenated Nitrile Rubber | |
| Element Material | Sintered Resin | |
| Overall Length | 53.9mm | |
| Maximum Operating Pressure | 1 Mpa | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Pressure | -100kPa | |
| Minimum Operating Temperature | 0°C | |
| Overall Height | 33.4mm | |
| Standards/Approvals | RoHS | |
| Overall Width | 23mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Vacuum Filter | ||
Port Size 6 mm Dia | ||
Filtration Size 5μm | ||
Connection Thread Standard Metric | ||
Series ZFC | ||
Maximum Flow Rate 20L/min | ||
Housing Material Resin Polybutylene | ||
Seal Material Hydrogenated Nitrile Rubber | ||
Element Material Sintered Resin | ||
Overall Length 53.9mm | ||
Maximum Operating Pressure 1 Mpa | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Pressure -100kPa | ||
Minimum Operating Temperature 0°C | ||
Overall Height 33.4mm | ||
Standards/Approvals RoHS | ||
Overall Width 23mm | ||
- COO (Country of Origin):
- JP
SMC ZFC Series Vacuum Filter, 5μm Filtration size, 20L/min Maximum Flow Rate - ZFC54-B
This vacuum filter is designed for efficient filtration in various industrial applications. The compact unit features a port connection diameter of 6mm and achieves a maximum flow rate of 20 L/min. It operates within a temperature range of 0 to +60 °C, making it suitable for multiple environments. The advanced design ensures effective 5 μm filtration to protect equipment from particulates and dust.
Features & Benefits
• Capable of handling both positive and vacuum pressures
• Maximum operating pressure of 1 MPa enhances reliability
• 5 μm filtration efficiency protects sensitive components
• Flexible tubing options accommodate diverse installations
• Compact design optimises installation space without compromising performance
• Two element colours available for easy visual identification
Applications
• Used in automated production lines for enhanced equipment protection
• Suitable for pneumatic systems requiring compression and vacuum aspects
• Ideal for electrical and mechanical industry
• Employed in environments with dusty conditions to maintain air quality
What is the maintenance process for ensuring optimal performance?
Regular maintenance involves checking and replacing the filter element when the pressure drop reaches 0.1 MPa for positive pressure or 20 kPa for vacuum pressure. Cleaning any dust or debris from the filter housing before replacing the element is also crucial.
How do various tubing options enhance installation versatility?
The availability of both metric and inch tubing sizes allows compatibility with different systems and equipment, which streamlines the integration into existing setups, ensuring seamless operation.
What happens if the device is exposed to harsh chemicals or corrosive environments?
The vacuum filter should not be used in environments where corrosive gases or chemicals are present. Such conditions can lead to equipment failure and affect filtration efficiency. Proper protective measures should be implemented for safe operation.
