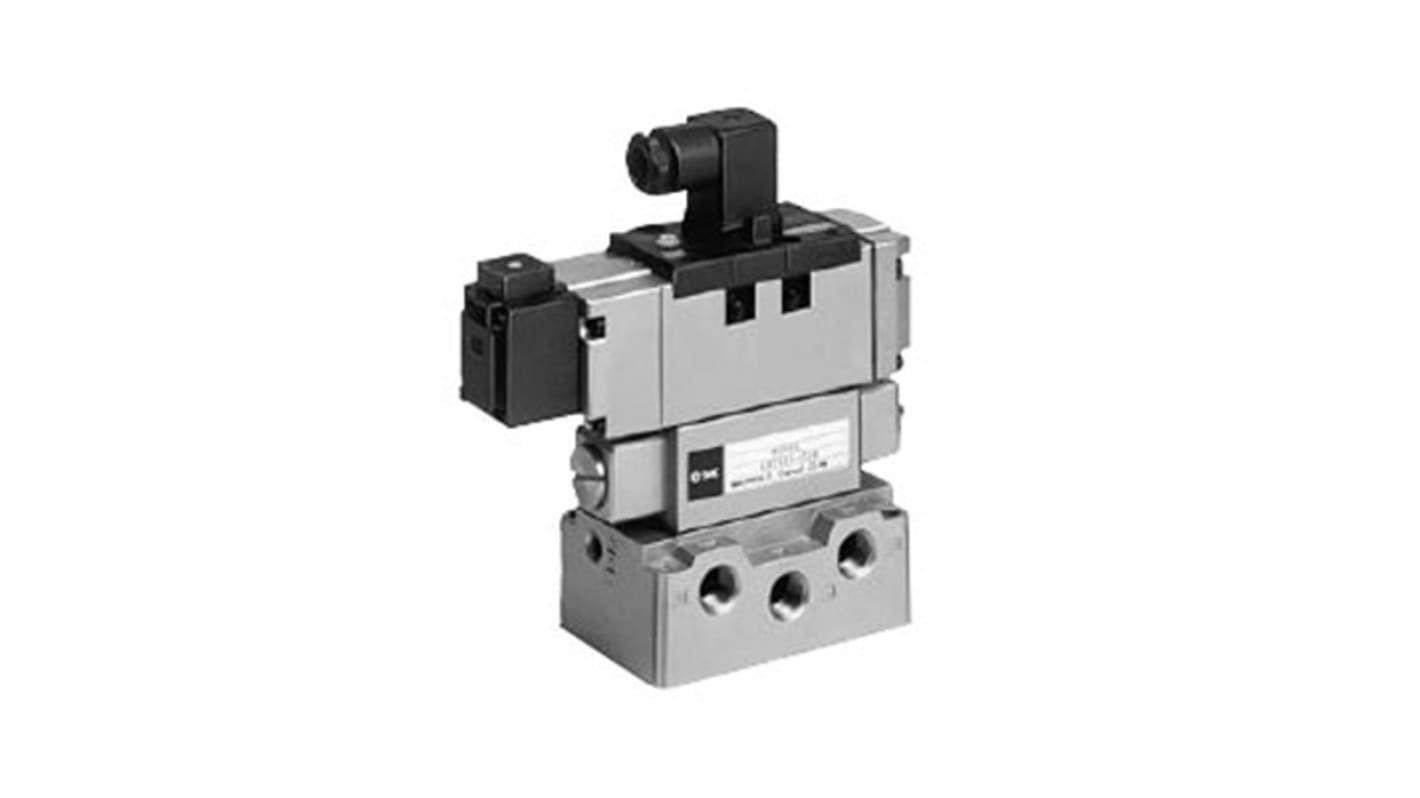

SMC Pneumatic Solenoid Valve - Flow Control Solenoid Rc (PT) VS7-6 Series 220V ac
- RS Stock No.:
- 288-6930
- Mfr. Part No.:
- EVS7-6-FG-S-6CVO-Q
- Brand:
- SMC
Subtotal (1 unit)*
£86.32
(exc. VAT)
£103.58
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £86.32 |
*price indicative
- RS Stock No.:
- 288-6930
- Mfr. Part No.:
- EVS7-6-FG-S-6CVO-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | 1/8 in | |
| Connection Thread Standard | Rc (PT) | |
| Actuation Type | Solenoid | |
| Voltage | 220V ac | |
| Seal Material | Nitrile Rubber (NBR) | |
| Solenoid Type | Single | |
| Series | VS7-6 | |
| Mount Type | Bolt Mount | |
| Maximum Operating Pressure | 1.0 Mpa | |
| Minimum Pilot Pressure | 0.1MPa | |
| Minimum Operating Temperature | 5°C | |
| Valve Function | Flow Control | |
| Maximum Flow Rate | 1472.25NL/min | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | JIS B8375, JIS C4003, RoHS | |
| Hazardous Area Certification | NO | |
| Number of Positions | 1 | |
| Electrical Connection Type | DIN Connector | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size 1/8 in | ||
Connection Thread Standard Rc (PT) | ||
Actuation Type Solenoid | ||
Voltage 220V ac | ||
Seal Material Nitrile Rubber (NBR) | ||
Solenoid Type Single | ||
Series VS7-6 | ||
Mount Type Bolt Mount | ||
Maximum Operating Pressure 1.0 Mpa | ||
Minimum Pilot Pressure 0.1MPa | ||
Minimum Operating Temperature 5°C | ||
Valve Function Flow Control | ||
Maximum Flow Rate 1472.25NL/min | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals JIS B8375, JIS C4003, RoHS | ||
Hazardous Area Certification NO | ||
Number of Positions 1 | ||
Electrical Connection Type DIN Connector | ||
- COO (Country of Origin):
- JP
The SMC pneumatic solenoid valve from SMC Pneumatics is a high-quality component designed for efficient control of air flow in various industrial applications. With its durable construction and reliable performance, it is a must-have for any facility requiring precision pneumatic control.
Compact and lightweight design for easy installation and space-saving
High flow capacity for improved efficiency in air flow control
Corrosion-resistant materials ensure long-lasting durability in challenging environments
Quick response time for precise control of air flow
Low power consumption for cost-effective operation
