Festo 5/2 Monostable Solenoid Valve - Electrical M7 VMPA Series 24V dc, 533342
- RS Stock No.:
- 250-2719
- Mfr. Part No.:
- VMPA1-M1H-M-PI
- Brand:
- Festo
Subtotal (1 unit)*
£100.78
(exc. VAT)
£120.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 64 unit(s) ready to ship
- Plus 103 unit(s) ready to ship from another location
- Plus 63 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £100.78 |
*price indicative
- RS Stock No.:
- 250-2719
- Mfr. Part No.:
- VMPA1-M1H-M-PI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 5/2 Monostable | |
Connection Port Thread | M7 | |
Actuation Type | Electrical | |
Manufacturer Series | VMPA | |
Mounting Style | Through Hole | |
Solenoid Voltage | 24V dc | |
Number of Ports | 5/2 | |
Body Material | Aluminium | |
Maximum Flow Rate | 360L/min | |
Minimum Operating Pressure | -0.9bar | |
Maximum Operating Temperature | +50°C | |
Configuration | 5/2 | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -5°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 5/2 Monostable | ||
Connection Port Thread M7 | ||
Actuation Type Electrical | ||
Manufacturer Series VMPA | ||
Mounting Style Through Hole | ||
Solenoid Voltage 24V dc | ||
Number of Ports 5/2 | ||
Body Material Aluminium | ||
Maximum Flow Rate 360L/min | ||
Minimum Operating Pressure -0.9bar | ||
Maximum Operating Temperature +50°C | ||
Configuration 5/2 | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -5°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

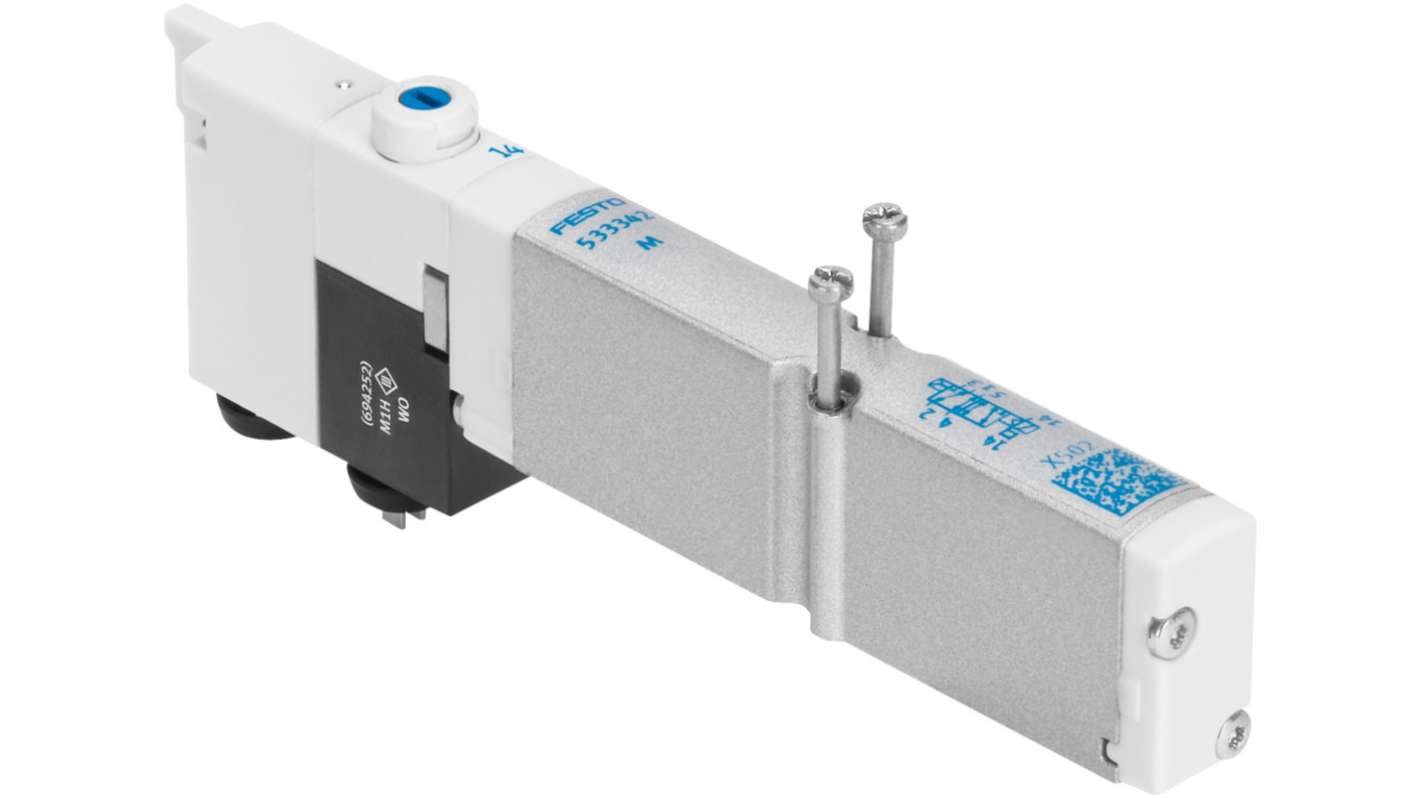

Festo VMPA Series Solenoid Valve, 24V DC Solenoid Voltage, 360L/min Maximum Flow Rate - VMPA1-M1H-M-PI, Numeric Part Number: 533342
This solenoid valve is a functional element in automation systems, recognised for its 5/2 monostable configuration. With a valve size of 10mm and a robust die cast aluminium body, it efficiently controls pneumatic functions, making it fitting for various industrial settings. Operating at 24V DC, it ensures dependable performance with high flow rates in challenging environments.
Features & Benefits
• Monostable design promotes effective switching capability
• Maximum pressure operation of 10 bar
• Electrical actuation simplifies integration with control systems
• High flow rate of 360L/min caters to various applications
• IP65 protection class provides durability in tough conditions
• Compatible with lubricated operation for increased longevity
• Maximum pressure operation of 10 bar
• Electrical actuation simplifies integration with control systems
• High flow rate of 360L/min caters to various applications
• IP65 protection class provides durability in tough conditions
• Compatible with lubricated operation for increased longevity
Applications
• Applied in pneumatic control systems
• Suitable for manufacturing automation
• Utilised in robotics and machinery for valve management
• Effective for fluid control in industrial environments
• Suitable for manufacturing automation
• Utilised in robotics and machinery for valve management
• Effective for fluid control in industrial environments
Can it handle varying operating pressures?
Yes, it operates efficiently between -0.9 to 10 bar.
Is it suitable for use in humid conditions?
Yes, it can function with up to 90% humidity at 40°C.
Will it function in a vacuum?
Yes, it is suitable for vacuum applications.
