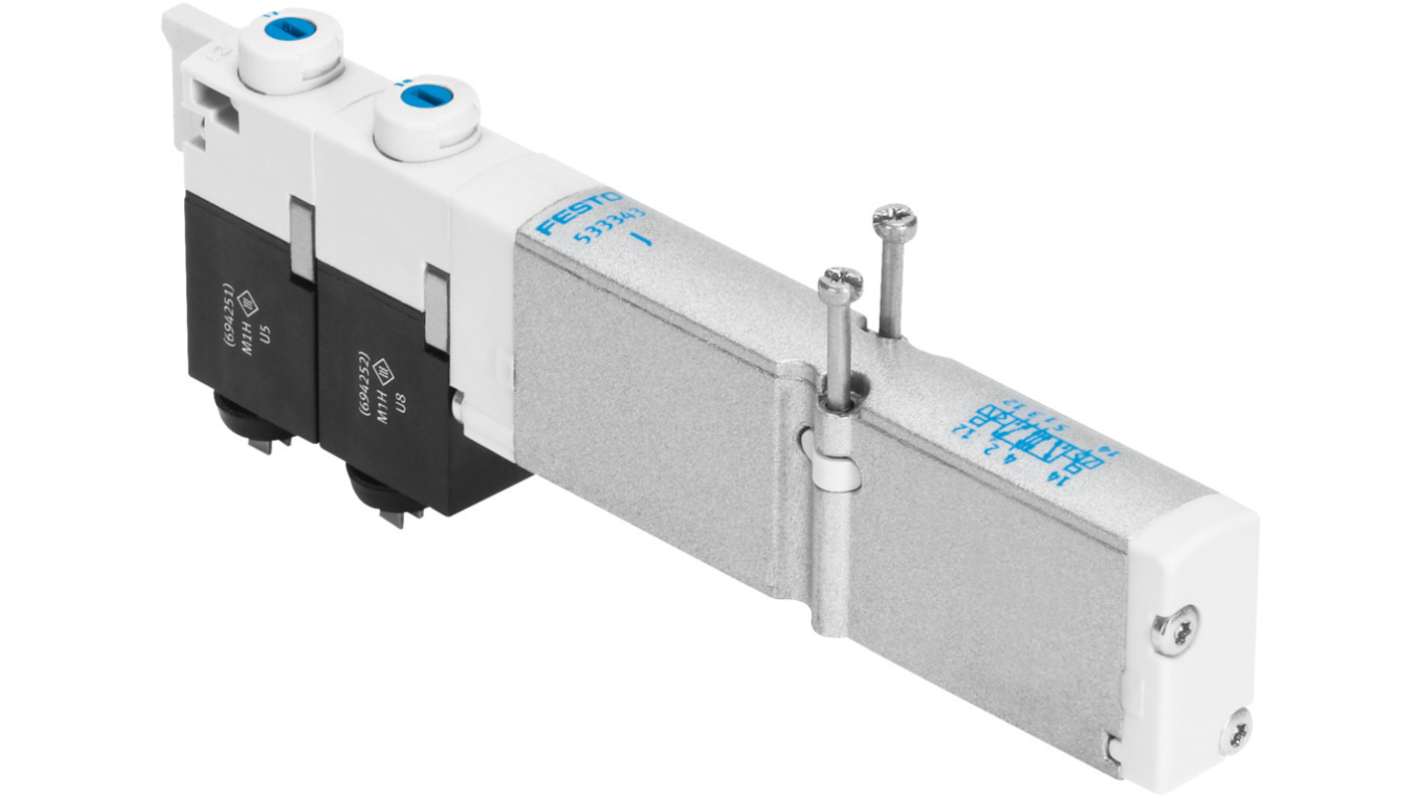

Festo 5/3 Closed Solenoid Valve - Electrical M7 VMPA Series 24V dc, 533345

View all Pneumatic Solenoid Valves

Subtotal (1 unit)*

£151.10

(exc. VAT)

£181.32

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
  • Plus 37 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£151.10

*price indicative

Pneumatic Solenoid Valves to Solenoid Valve Coils
Need Coils for Your Solenoid Valves?
Pneumatic solenoid valves rely on compatible coils to operate efficiently. If you're browsing valves, don’t forget to check out our range of solenoid valve coils—designed to deliver reliable actuation and optimal performance. Whether you're replacing a coil or building a new system, pairing your valve with the right coil ensures smooth and responsive control.
Shop Now
RS Stock No.:
250-2718
Mfr. Part No.:
VMPA1-M1H-G-PI
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Function

5/3 Closed

Connection Port Thread

M7

Actuation Type

Electrical

Manufacturer Series

VMPA

Mounting Style

Through Hole

Solenoid Voltage

24V dc

Number of Ports

5/3

Body Material

Aluminium

Maximum Flow Rate

320L/min

Minimum Operating Pressure

-0.9bar

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

-5°C

Maximum Operating Pressure

10 bar

RoHS Status: Exempt

COO (Country of Origin):
DE

Festo VMPA Series Solenoid Valve, 24V DC Solenoid Voltage, Die Cast Aluminium Body - VMPA1-M1H-G-PI, Numeric Part Number: 533345


This electrically actuated solenoid valve is designed for controlling pneumatic systems. It is compatible with the valve terminal MPA-S, features a valve size of 10mm, and operates at 24V dc. The flow rate of 320L/min provides effective performance for various industrial applications.

Features & Benefits


• 5/3 closed functionality allows flexible flow control
• Electrical actuation ensures swift and precise operation
• High flow rate supports various pneumatic applications
• Compatible with different mounting positions for added versatility
• Mechanical spring reset enhances system dependability
• Sealing principle designed for soft sealing to minimise leaks

Applications


• Controls compressed air systems
• Suitable for integration in automated machinery
• Employed in industrial automation settings
• Ideal for requiring pneumatic control

Can it handle high flow rates efficiently?


Yes, it supports a flow rate of 320L/min.

Will it operate at varying pressures?


Yes, it functions within a pressure range of -0.9 to 10 bar.

Is it suitable for use in harsh environments?


Yes, it has a corrosion resistance classification of CRC 1.

Can it function in a vacuum?


Yes, it is suitable for vacuum applications.
