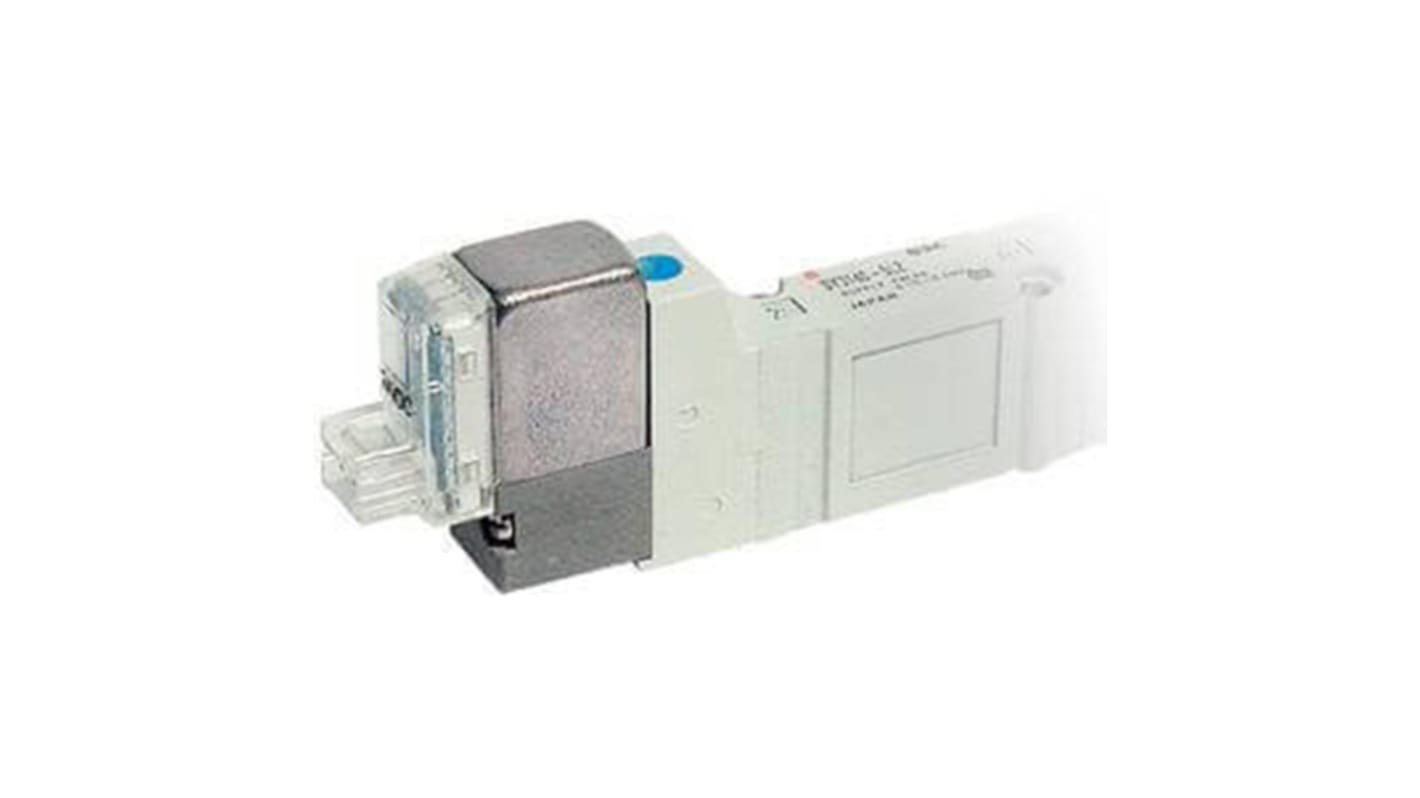

SMC Solenoid Valve - Solenoid G SY7000 Series 24V

RS Stock No.:: 232-8301
Mfr. Part No.:: SY7220-4DZ-02F-Q
Brand:: SMC

SMC Solenoid Valve - Solenoid G SY7000 Series 24V

View all Pneumatic Solenoid Valves

Subtotal (1 unit)*

£114.38

(exc. VAT)

£137.26

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 14 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£114.38

*price indicative

Explore SMC's Pneumatic Logic Controllers

Pair Pneumatic Solenoid Valves with Pneumatic Logic Controllers for seamless automation—valves handle actuation while controllers manage logic for efficient, reliable system control

Shop Now

RS Stock No.:: 232-8301
Mfr. Part No.:: SY7220-4DZ-02F-Q
Brand:: SMC

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Solenoid Valve
	Port Size	M5
	Connection Thread Standard	G
	Actuation Type	Solenoid
	Seal Material	Rubber
	Solenoid Type	Double
	Series	SY7000
	Voltage	24V
	Mount Type	Base
	Number of Ports	5
	Maximum Operating Pressure	0.7 bar
	Body Material	Die Cast Zinc
	Minimum Pilot Pressure	0.25bar
	Maximum Pilot Pressure	0.7bar
	Minimum Operating Temperature	-10°C
	Port Gender	Female
	Maximum Operating Temperature	50°C
	Solenoid Power Consumption	0.1W
	Hazardous Area Certification	No
	Length	169.4mm
	Height	66mm
	Standards/Approvals	RoHS
	Number of Positions	2
	Electrical Connection Type	DIN Terminal

	Select all
	Brand SMC
	Product Type Solenoid Valve
	Port Size M5
	Connection Thread Standard G
	Actuation Type Solenoid
	Seal Material Rubber
	Solenoid Type Double
	Series SY7000
	Voltage 24V
	Mount Type Base
	Number of Ports 5
	Maximum Operating Pressure 0.7 bar
	Body Material Die Cast Zinc
	Minimum Pilot Pressure 0.25bar
	Maximum Pilot Pressure 0.7bar
	Minimum Operating Temperature -10°C
	Port Gender Female
	Maximum Operating Temperature 50°C
	Solenoid Power Consumption 0.1W
	Hazardous Area Certification No
	Length 169.4mm
	Height 66mm
	Standards/Approvals RoHS
	Number of Positions 2
	Electrical Connection Type DIN Terminal

Datasheet - SY7220-4DZ-02F-Q

COO (Country of Origin):: JP

The SMC 5 Port solenoid valve has 24V, 12V supply voltage. It has IP67 protection. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.

Function 2 (2 Position Single)

Piping 20 (Body Ported)

Pilot Type internal pilot

Coil Specifications standard
