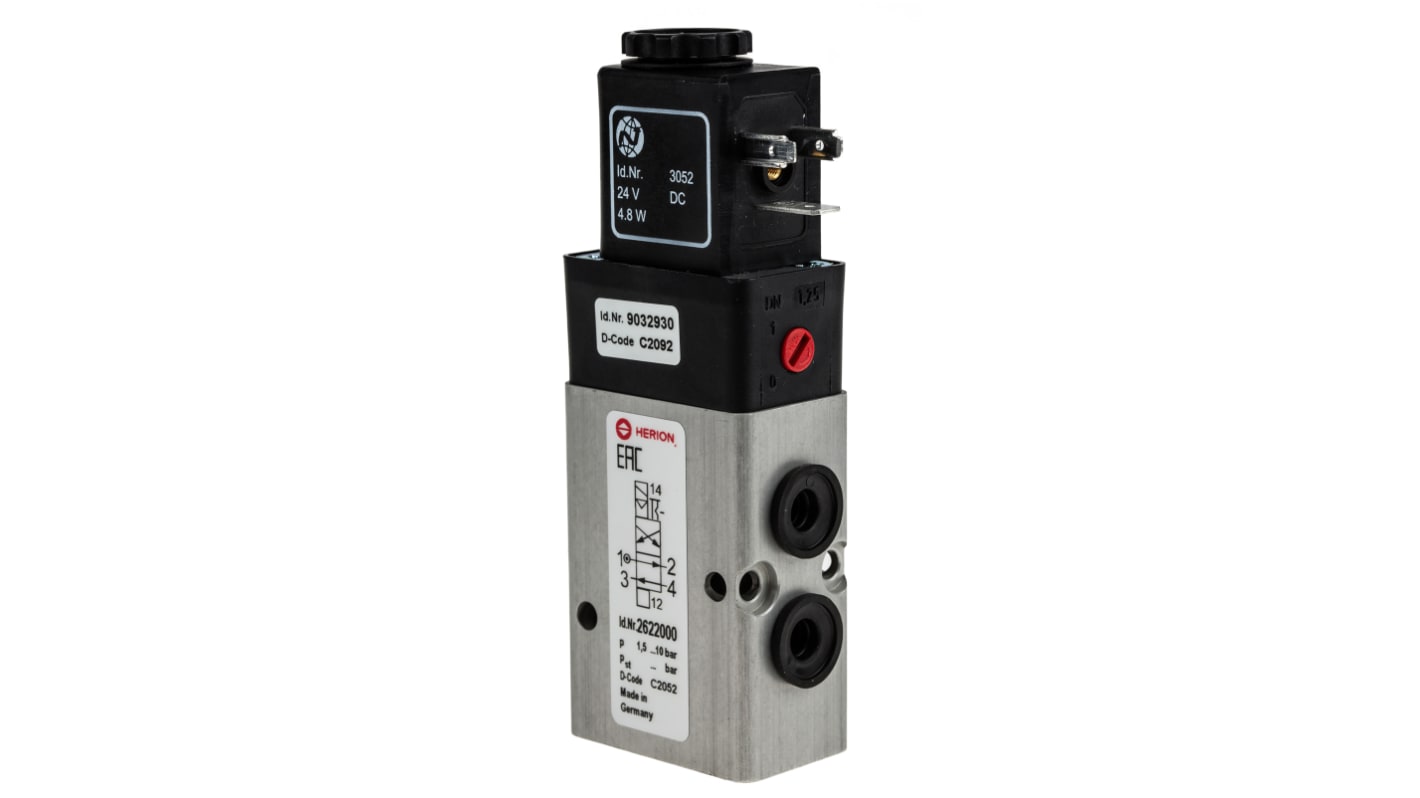

Norgren Pneumatic Solenoid Valve - Solenoid/Spring G 1/8 26220 Series 24V dc
- RS Stock No.:
- 218-0147
- Mfr. Part No.:
- 2622000305202400
- Brand:
- Norgren
Save 3% when you buy 10 units
Subtotal (1 unit)*
£292.18
(exc. VAT)
£350.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £292.18 |
5 - 9 | £286.34 |
10 + | £280.50 |
*price indicative
- RS Stock No.:
- 218-0147
- Mfr. Part No.:
- 2622000305202400
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Connection Port Thread | G 1/8 | |
Actuation Type | Solenoid/Spring | |
Manufacturer Series | 26220 | |
Mounting Style | Inline | |
Solenoid Voltage | 24V dc | |
Number of Ports | 4-way | |
Body Material | Aluminium | |
Maximum Flow Rate | 700L/min | |
Solenoid Power Consumption | 4.8W | |
Minimum Operating Pressure | 1.5bar | |
Configuration | 4/2 | |
Thread Size | 1/8in | |
Number of Positions | 2 | |
Maximum Operating Temperature | +50°C | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -10°C | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Norgren | ||
Connection Port Thread G 1/8 | ||
Actuation Type Solenoid/Spring | ||
Manufacturer Series 26220 | ||
Mounting Style Inline | ||
Solenoid Voltage 24V dc | ||
Number of Ports 4-way | ||
Body Material Aluminium | ||
Maximum Flow Rate 700L/min | ||
Solenoid Power Consumption 4.8W | ||
Minimum Operating Pressure 1.5bar | ||
Configuration 4/2 | ||
Thread Size 1/8in | ||
Number of Positions 2 | ||
Maximum Operating Temperature +50°C | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -10°C | ||
Thread Standard G | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Solenoid Valve, 230V AC, 24V DC - 26220 Series - 2622000305202400
This pneumatic solenoid valve from IMI Norgren regulates and controls airflow in pressurised systems to keep your industrial process applications running smoothly. It's a 4-way, 2-position (4/2) solenoid-actuated spool valve that directs, stops and starts the passage of gases. This in turn regulates cylinders and other actuation components in your pneumatic equipment. Its IP65 (ingress protection) rating means this valve is dust-tight, preventing damage from contamination and increasing its lifespan.
Features & Benefits
• Operating temperature range from -10°C to +60°C for use in extreme environments
• Aluminium housing and the plastic pilot flange are resistant to corrosion for durability
• NBR (nitrile butadiene rubber) seals withstand abrasion and compression so remain airtight
• Aluminium housing and the plastic pilot flange are resistant to corrosion for durability
• NBR (nitrile butadiene rubber) seals withstand abrasion and compression so remain airtight
Applications
• Pneumatic actuators like cylinders
• Motors and turbines
• Diaphragms and tubes
• Motors and turbines
• Diaphragms and tubes
How do I know if my solenoid valve is working?
You can see how well your pneumatic solenoid valve is working by gauging the performance of the linked equipment and listening for an audible 'click' when air is emitted. If you hear a faint 'click' or notice a decrease in cylinder speed, it may indicate a problem.
