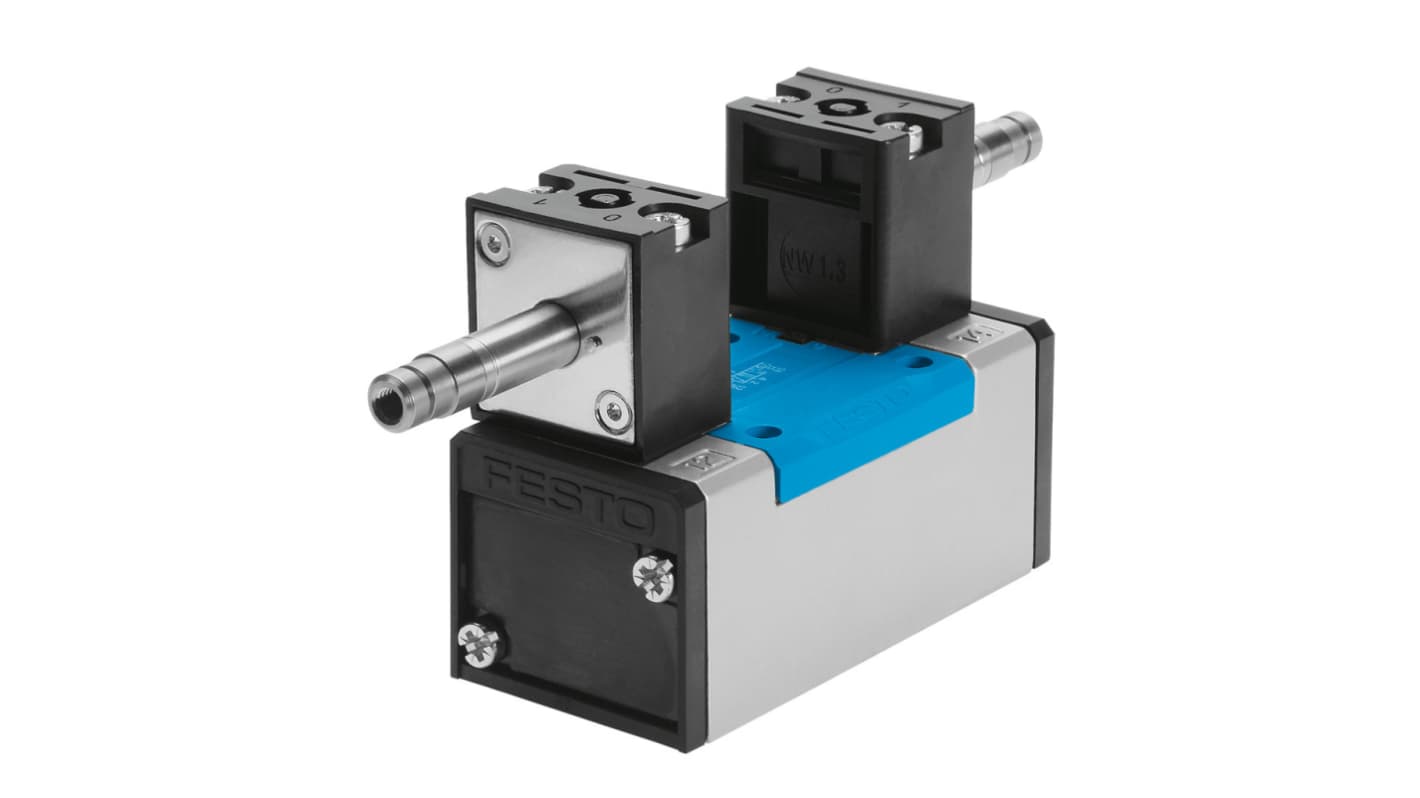

Festo 5/2 Bistable Solenoid Valve - Electrical G 1/4 JMN1H Series, 159690
- RS Stock No.:
- 202-1208
- Mfr. Part No.:
- JMN1H-5/2-D-1-C
- Brand:
- Festo
Subtotal (1 unit)*
£133.44
(exc. VAT)
£160.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £133.44 |
*price indicative
- RS Stock No.:
- 202-1208
- Mfr. Part No.:
- JMN1H-5/2-D-1-C
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 5/2 Bistable | |
Connection Port Thread | G 1/4 | |
Actuation Type | Electrical | |
Manufacturer Series | JMN1H | |
Mounting Style | Through Hole | |
Number of Ports | 5 | |
Body Material | Aluminium | |
Maximum Flow Rate | 1200L/min | |
Minimum Operating Pressure | 2bar | |
Number of Positions | 2 | |
Maximum Operating Pressure | 10 bar | |
Thread Size | 1/4in | |
Maximum Operating Temperature | +50°C | |
Minimum Operating Temperature | -5°C | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 5/2 Bistable | ||
Connection Port Thread G 1/4 | ||
Actuation Type Electrical | ||
Manufacturer Series JMN1H | ||
Mounting Style Through Hole | ||
Number of Ports 5 | ||
Body Material Aluminium | ||
Maximum Flow Rate 1200L/min | ||
Minimum Operating Pressure 2bar | ||
Number of Positions 2 | ||
Maximum Operating Pressure 10 bar | ||
Thread Size 1/4in | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -5°C | ||
Thread Standard G | ||
- COO (Country of Origin):
- HU
Festo JMN1H Series Solenoid Valve, 5/2 Bistable Function, G 1/4 Connection Port Thread - JMN1H-5/2-D-1-C, Numeric Part Number: 159690
This solenoid valve represents a reliable choice for various automation needs, designed specifically for pneumatic applications. It features a 5/2 bistable function, allowing for effective control over airflow, and boasts a threaded connection port of G 1/4 for straightforward integration into existing systems. Constructed from die-cast aluminium, this valve ensures durability while operating effectively within a temperature range of -5°C to +50°C.
Features & Benefits
• Electrical actuation enables precise control of fluid flow
• High flow rate of 1200L/min enhances system performance
• Suitable for a minimum operating pressure of 2 bar
• Operates at a maximum pressure of 10 bar for robust applications
• Designed for through-hole mounting for easy installation
• Two-position functionality caters to varied control requirements
• High flow rate of 1200L/min enhances system performance
• Suitable for a minimum operating pressure of 2 bar
• Operates at a maximum pressure of 10 bar for robust applications
• Designed for through-hole mounting for easy installation
• Two-position functionality caters to varied control requirements
Applications
• Used in automated process control systems
• Ideal for industrial machinery requiring pneumatic control
• Suitable for robotics and material handling systems
• Utilised in packaging and material transport machinery
• Commonly found in assembly line automation
• Ideal for industrial machinery requiring pneumatic control
• Suitable for robotics and material handling systems
• Utilised in packaging and material transport machinery
• Commonly found in assembly line automation
What materials are used in the construction of this valve?
The body is made from die-cast aluminium, providing strength and durability while ensuring optimal performance under varying conditions.
How does this valve perform in terms of flow and pressure capabilities?
With a maximum flow rate of 1200L/min, it efficiently handles air distribution and supports operations at pressures ranging from 2 bar to 10 bar, making it versatile for various applications.
What kind of mounting is available for this model?
This valve is designed for through-hole mounting, facilitating straightforward integration into many systems while ensuring a secure fit.
What temperature ranges can this valve operate within?
It is designed to function in conditions ranging from -5°C to +50°C, allowing for use in diverse operational environments.
How many ports are included in the design of this valve?
This model features five ports, providing flexibility in configuring plumbing and airflow management tailored to specific applications.
