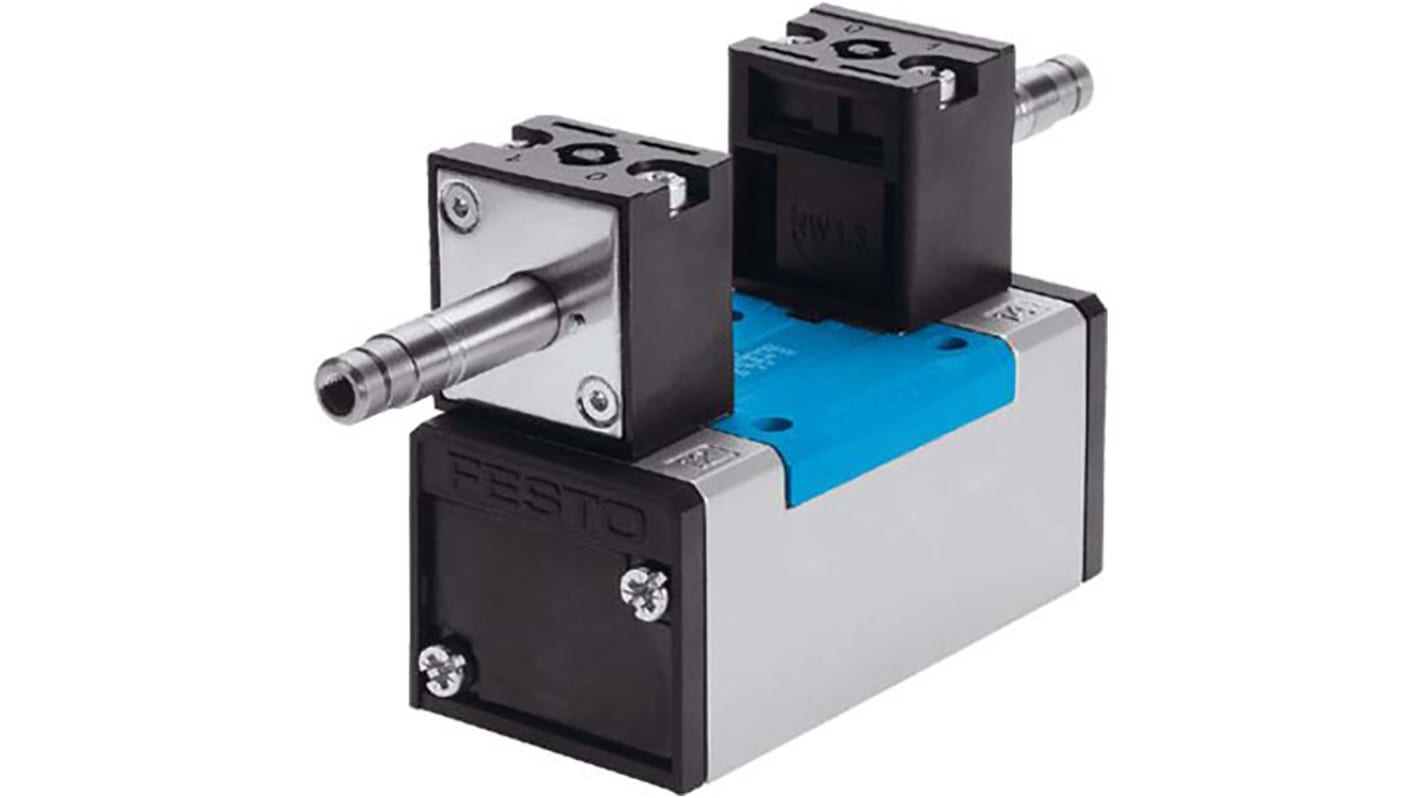

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - Electric JMN1H-5/2-D-3-C Series 159714
- RS Stock No.:
- 203-7257
- Mfr. Part No.:
- JMN1H-5/2-D-3-C
- Brand:
- Festo
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£296.51
(exc. VAT)
£355.81
(inc. VAT)
- RS Stock No.:
- 203-7257
- Mfr. Part No.:
- JMN1H-5/2-D-3-C
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid/Pilot-Operated Control Valve | |
| Port Size | 14.5 mm | |
| Actuation Type | Electric | |
| Series | JMN1H-5/2-D-3-C | |
| Seal Material | Nitrile Rubber (NBR) | |
| Mount Type | Base | |
| Body Material | Die Cast Aluminium | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Flow Rate | 4500L/min | |
| Valve Function | 5/2 Bistable | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | ISO 5599-1 | |
| Width | 65mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid/Pilot-Operated Control Valve | ||
Port Size 14.5 mm | ||
Actuation Type Electric | ||
Series JMN1H-5/2-D-3-C | ||
Seal Material Nitrile Rubber (NBR) | ||
Mount Type Base | ||
Body Material Die Cast Aluminium | ||
Maximum Operating Pressure 10 bar | ||
Maximum Flow Rate 4500L/min | ||
Valve Function 5/2 Bistable | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals ISO 5599-1 | ||
Width 65mm | ||
- COO (Country of Origin):
- HU
The Festo's solenoid valve with manual override without solenoid coil or socket and solenoid coil and socket should be ordered separately. It has piston slide of structure and its width size is 65 mm and used operating pressure up to 2 - 10 bar. Its standard nominal flow rate is 4,500 l/min.
Ambient temperature -5 to 50 °C
Protection class IP65
