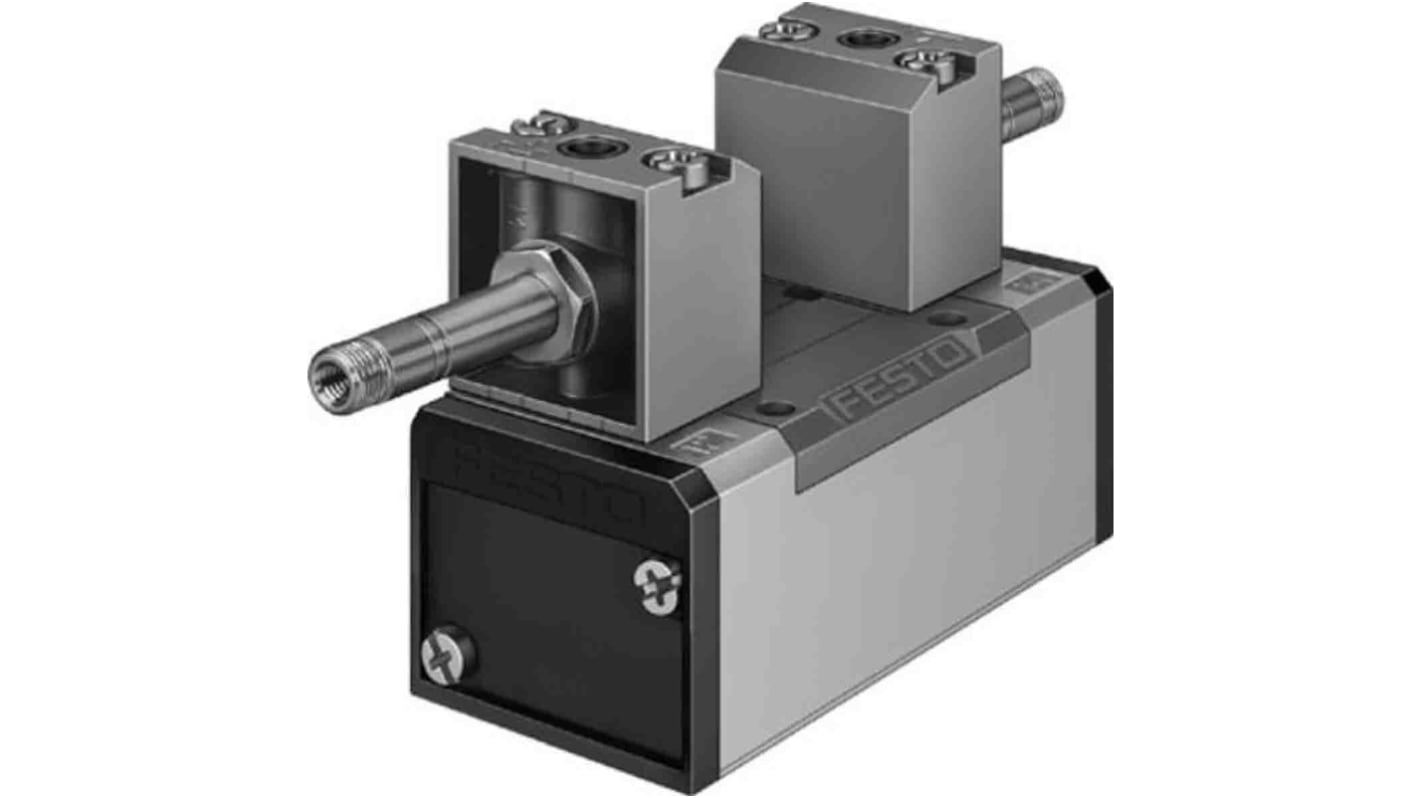

Festo 5/2 Bistable Solenoid Valve - Electrical G 1/8 JMFH Series, 150980
- RS Stock No.:
- 202-1213
- Mfr. Part No.:
- JMFH-5/2-D-1-C
- Brand:
- Festo
Subtotal (1 unit)*
£167.07
(exc. VAT)
£200.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £167.07 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£133.44
(exc. VAT)
£160.13
(inc. VAT)
- RS Stock No.:
- 202-1213
- Mfr. Part No.:
- JMFH-5/2-D-1-C
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 5/2 Bistable | |
Connection Port Thread | G 1/8 | |
Actuation Type | Electrical | |
Manufacturer Series | JMFH | |
Mounting Style | Sub Base | |
Number of Ports | 5 | |
Body Material | Aluminium | |
Maximum Flow Rate | 1200L/min | |
Minimum Operating Pressure | 2bar | |
Number of Positions | 2 | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -5°C | |
Maximum Operating Temperature | +40°C | |
Configuration | 5/2 | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 5/2 Bistable | ||
Connection Port Thread G 1/8 | ||
Actuation Type Electrical | ||
Manufacturer Series JMFH | ||
Mounting Style Sub Base | ||
Number of Ports 5 | ||
Body Material Aluminium | ||
Maximum Flow Rate 1200L/min | ||
Minimum Operating Pressure 2bar | ||
Number of Positions 2 | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +40°C | ||
Configuration 5/2 | ||
- COO (Country of Origin):
- HU
Festo 5/2 Bistable Solenoid Valve, G 1/8, Electrical Actuation - JMFH-5/2-D-1-C
Looking for a vibration-resistant and shock-resistant solution to controlling pneumatic flows? This bistable solenoid valve from Festo will do the job. It uses an electrical actuator to send single pulses to open and close a valve position, and you'll get a non-reversible flow direction with minimal energy consumption. The device has a piston slide and gate valve design and a sub-base mounting style, so you can be sure of secure installation.
• Standard G 1/8 connection port thread offers easy installation
• Five-port, two-position valve lets you adjust speed in both directions of a double-acting pneumatic actuator by controlling the flow rate with throttle valves
• IP65 (ingress protection) rating indicates a dust-tight construction and protection against jets of water
• Five-port, two-position valve lets you adjust speed in both directions of a double-acting pneumatic actuator by controlling the flow rate with throttle valves
• IP65 (ingress protection) rating indicates a dust-tight construction and protection against jets of water
Applications
• Compressed-air applications
• Reverse osmosis systems
• Automatic irrigation systems
• Reverse osmosis systems
• Automatic irrigation systems
What's this device made from?
This solenoid valve's housing is made of die-cast aluminium, which provides highly conductive, corrosion-resistant protection for the coils and other components. The material also offers a positive weight-to-strength ratio, making this device is a convenient and efficient option for your pneumatic flow systems.
