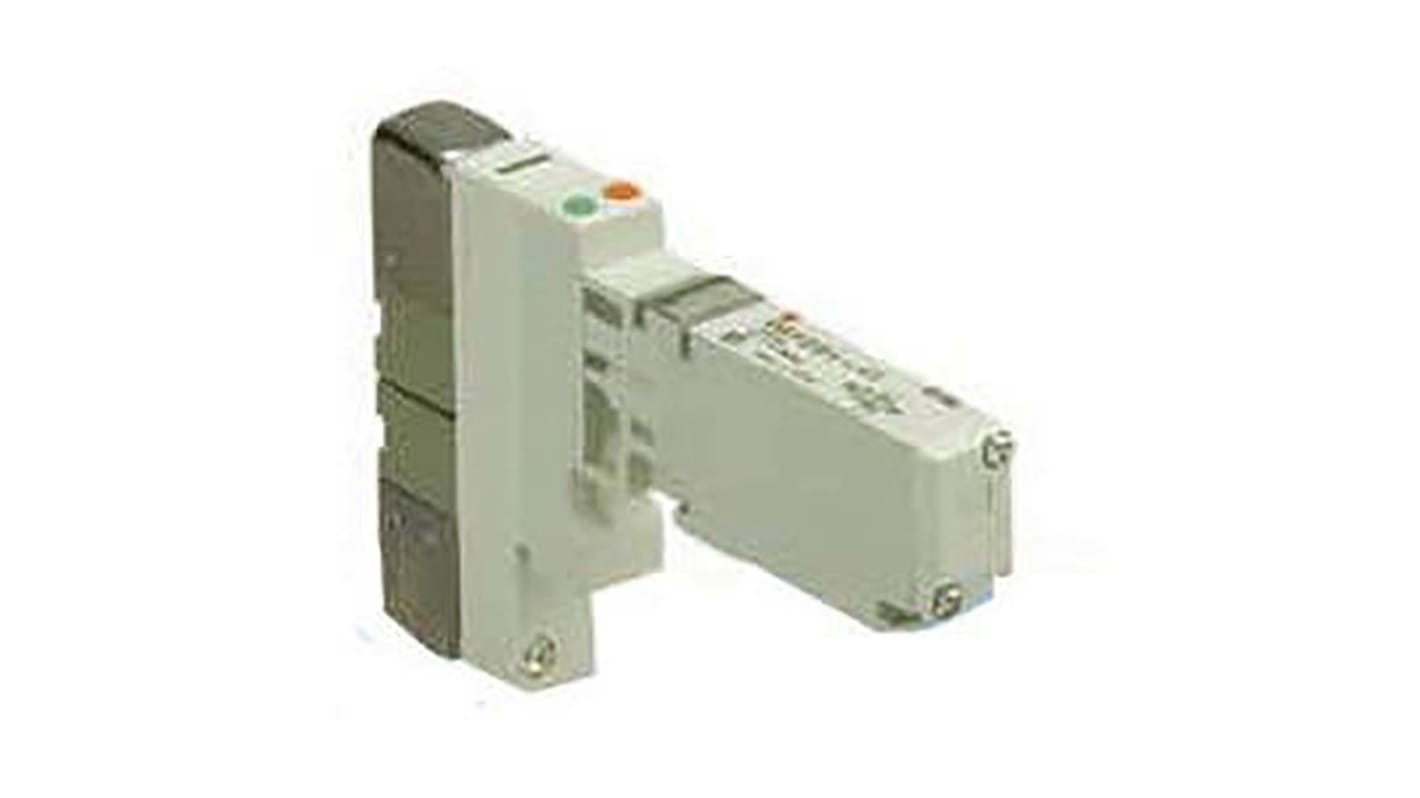

SMC 5/3 Solenoid Pilot Valve - Solenoid VQ1000 Series
- RS Stock No.:
- 196-4608
- Mfr. Part No.:
- VQ1300N-51-Q
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£120.00
(exc. VAT)
£144.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £120.00 |
5 + | £115.20 |
*price indicative
- RS Stock No.:
- 196-4608
- Mfr. Part No.:
- VQ1300N-51-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Function | 5/3 | |
Actuation Type | Solenoid | |
Manufacturer Series | VQ1000 | |
Solenoid Fitted | Yes | |
Number of Ports | 5 | |
Body Material | Die Cast Zinc | |
Maximum Flow Rate | 178L/min | |
Solenoid Power Consumption | 0.4 W, 0.95W | |
Minimum Operating Pressure | 0.1MPa | |
Maximum Operating Pressure | 0.7 MPa | |
Minimum Operating Temperature | -10°C | |
Number of Positions | 3 | |
Maximum Operating Temperature | +50°C | |
Thread Standard | Rc | |
Select all | ||
---|---|---|
Brand SMC | ||
Function 5/3 | ||
Actuation Type Solenoid | ||
Manufacturer Series VQ1000 | ||
Solenoid Fitted Yes | ||
Number of Ports 5 | ||
Body Material Die Cast Zinc | ||
Maximum Flow Rate 178L/min | ||
Solenoid Power Consumption 0.4 W, 0.95W | ||
Minimum Operating Pressure 0.1MPa | ||
Maximum Operating Pressure 0.7 MPa | ||
Minimum Operating Temperature -10°C | ||
Number of Positions 3 | ||
Maximum Operating Temperature +50°C | ||
Thread Standard Rc | ||
- COO (Country of Origin):
- JP
Fluid: air/inert gas
Operating pressure range: 0.1MPa - 0.7MPa
(high pressure style 1.0MPa)
Effective area mm 2 (Cv): metal seal 3.6 (0.2),
rubber seal 5.4 (0.3)
Coil rated voltage: 12, 24VDC,
100, 110, 200, 220VAC
Ambient & fluid temperature: -10 to 50°C
Operating pressure range: 0.1MPa - 0.7MPa
(high pressure style 1.0MPa)
Effective area mm 2 (Cv): metal seal 3.6 (0.2),
rubber seal 5.4 (0.3)
Coil rated voltage: 12, 24VDC,
100, 110, 200, 220VAC
Ambient & fluid temperature: -10 to 50°C
