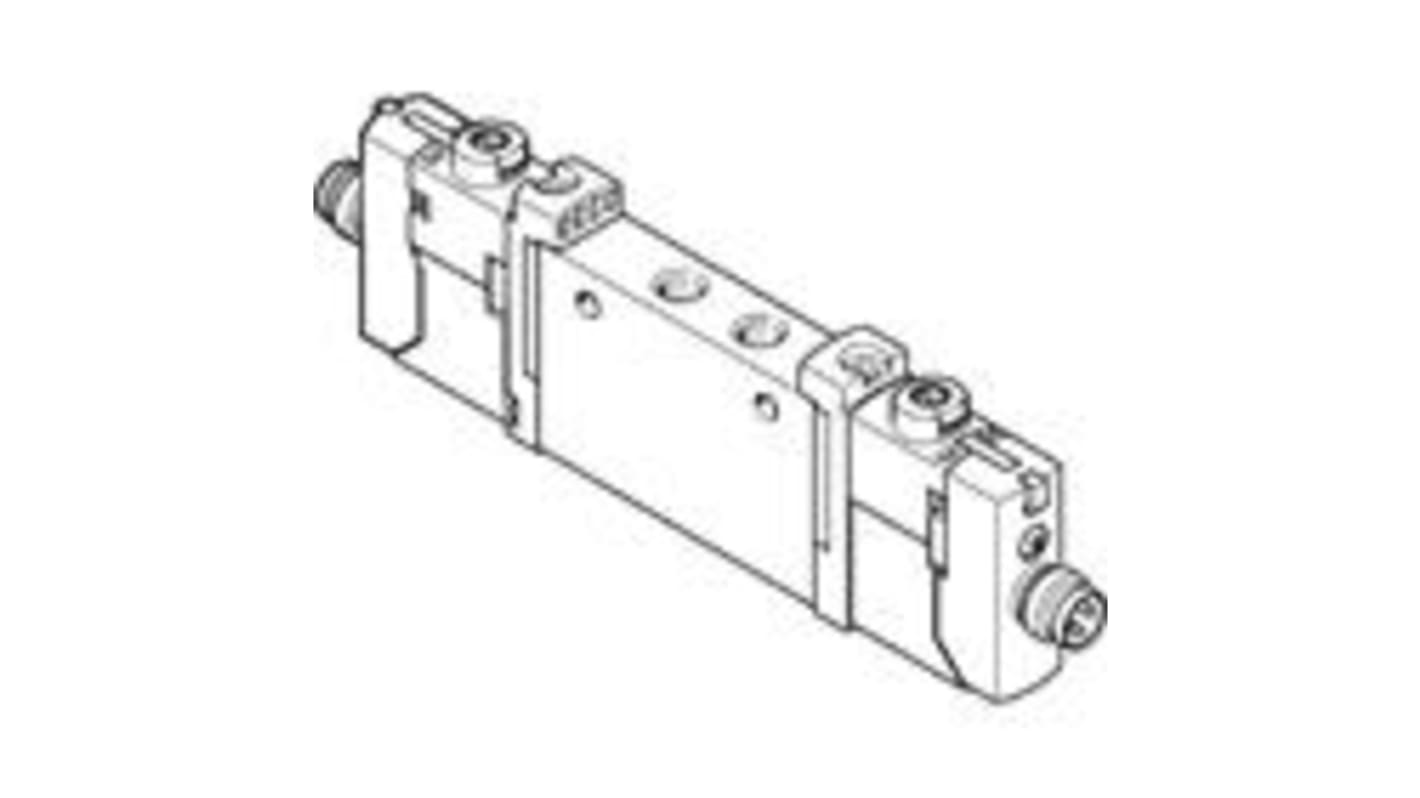

Festo 3/2 Pneumatic Solenoid Valve - Solenoid M7 VUVG Series 24V dc, 8031480
- RS Stock No.:
- 181-6421
- Mfr. Part No.:
- VUVG-L10-T32C-MT-M7-1R8L
- Brand:
- Festo
1 In stock for delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£127.61
(exc. VAT)
£153.13
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £127.61 |
| 5 + | £122.50 |
- RS Stock No.:
- 181-6421
- Mfr. Part No.:
- VUVG-L10-T32C-MT-M7-1R8L
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Internal pilot air supply can bechosen with an operating pressure in the range 1.5 … 8 bar, 2.5 … 8 bar or 3 … 8 bar (depending on the valve used). The pilot air supply is branched from duct 1 (compressed air supply) using an internal connection. The internal pilot air is branched from port 1 in the valve body. The external pilot air (port 12/14) is supplied individually at each valve housing
Specifications
Attribute | Value |
|---|---|
| Function | 3/2 |
| Connection Port Thread | M7 |
| Actuation Type | Solenoid |
| Manufacturer Series | VUVG |
| Mounting Style | Inline |
| Solenoid Voltage | 24V dc |
| Solenoid Fitted | Yes |
| Number of Ports | 3 |
| Body Material | Aluminium Alloy |
| Maximum Flow Rate | 150L/min |
| Solenoid Power Consumption | 1W |
| Minimum Operating Pressure | 2.5bar |
| Minimum Operating Temperature | -5°C |
| Number of Positions | 4 |
| Maximum Operating Pressure | 8bar |
| Maximum Operating Temperature | +60°C |
| Thread Standard | Metric |
