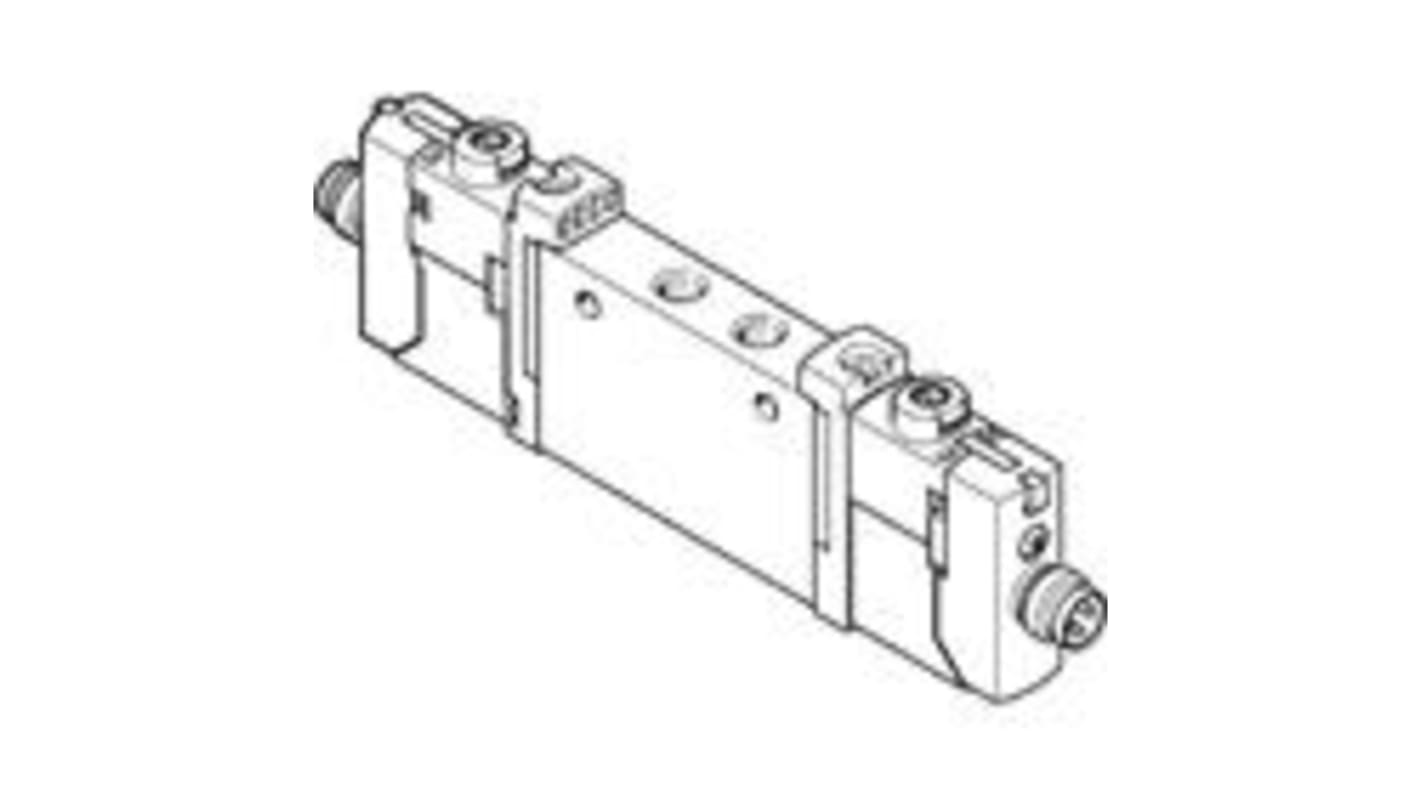

Festo 3/2 Pneumatic Solenoid Valve - Solenoid Metric M5 VUVG Series 24V dc, 8031468

View all Pneumatic Solenoid Valves
Save 3% when you buy 5 units

Subtotal (1 unit)*

£124.53

(exc. VAT)

£149.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£124.53
5 +£119.55

*price indicative

RS Stock No.:
181-6419
Mfr. Part No.:
VUVG-L10-T32C-MT-M5-1R8L
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Function

3/2

Connection Port Thread

Metric M5

Actuation Type

Solenoid

Manufacturer Series

VUVG

Mounting Style

Inline

Solenoid Voltage

24V dc

Solenoid Fitted

Yes

Number of Ports

3

Body Material

Aluminium Alloy

Maximum Flow Rate

135L/min

Solenoid Power Consumption

1W

Minimum Operating Pressure

2.5bar

Minimum Operating Temperature

-5°C

Maximum Operating Pressure

8bar

Number of Positions

4

Maximum Operating Temperature

+60°C

Thread Standard

Metric

COO (Country of Origin):
DE
Internal pilot air supply can bechosen with an operating pressure in the range 1.5 … 8 bar, 2.5 … 8 bar or 3 … 8 bar (depending on the valve used). The pilot air supply is branched from duct 1 (compressed air supply) using an internal connection. The internal pilot air is branched from port 1 in the valve body. The external pilot air (port 12/14) is supplied individually at each valve housing

2x 3/2-way valve, normal position closed, single solenoid:
