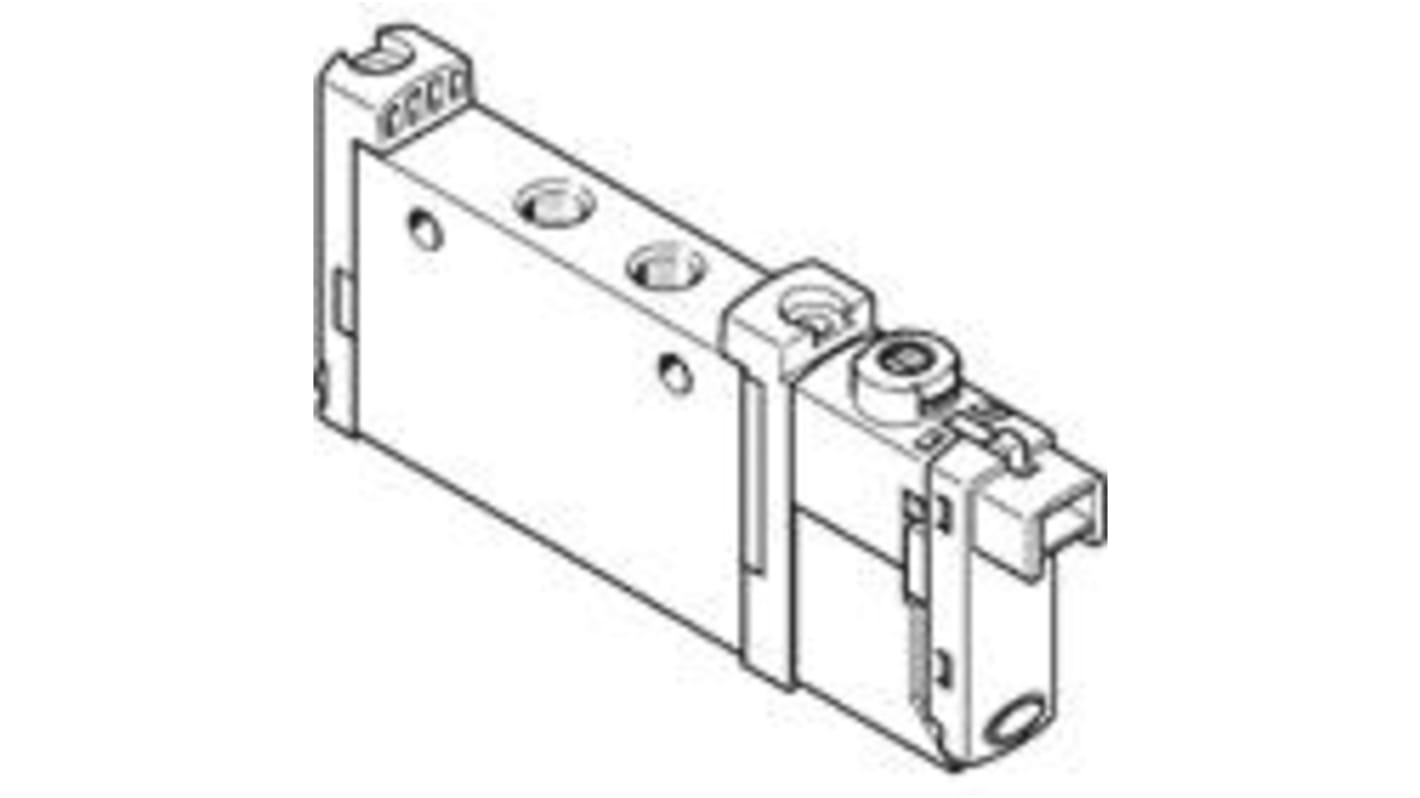

Festo 5/2 Pneumatic Solenoid Valve - Solenoid M7 VUVG Series 24V dc, 578163
- RS Stock No.:
- 181-6403
- Mfr. Part No.:
- VUVG-L10-M52-MT-M7-1H2L-W1
- Brand:
- Festo
Available to back order for despatch 06/06/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£78.46
(exc. VAT)
£94.15
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £78.46 |
| 5 + | £75.33 |
- RS Stock No.:
- 181-6403
- Mfr. Part No.:
- VUVG-L10-M52-MT-M7-1H2L-W1
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Internal pilot air supply can bechosen with an operating pressure in the range 1.5 … 8 bar, 2.5 … 8 bar or 3 … 8 bar (depending on the valve used). The pilot air supply is branched from duct 1 (compressed air supply) using an internal connection. The internal pilot air is branched from port 1 in the valve body. The external pilot air (port 12/14) is supplied individually at each valve housing
Specifications
Attribute | Value |
|---|---|
| Function | 5/2 |
| Connection Port Thread | M7 |
| Actuation Type | Solenoid |
| Manufacturer Series | VUVG |
| Mounting Style | Inline |
| Solenoid Voltage | 24V dc |
| Solenoid Fitted | Yes |
| Number of Ports | 5 |
| Body Material | Aluminium Alloy |
| Maximum Flow Rate | 220L/min |
| Solenoid Power Consumption | 1W |
| Minimum Operating Pressure | 3bar |
| Maximum Operating Pressure | 8bar |
| Number of Positions | 2 |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -5°C |
| Thread Standard | Metric |
- RS Stock No.:
- 181-6403
- Mfr. Part No.:
- VUVG-L10-M52-MT-M7-1H2L-W1
- Brand:
- Festo
