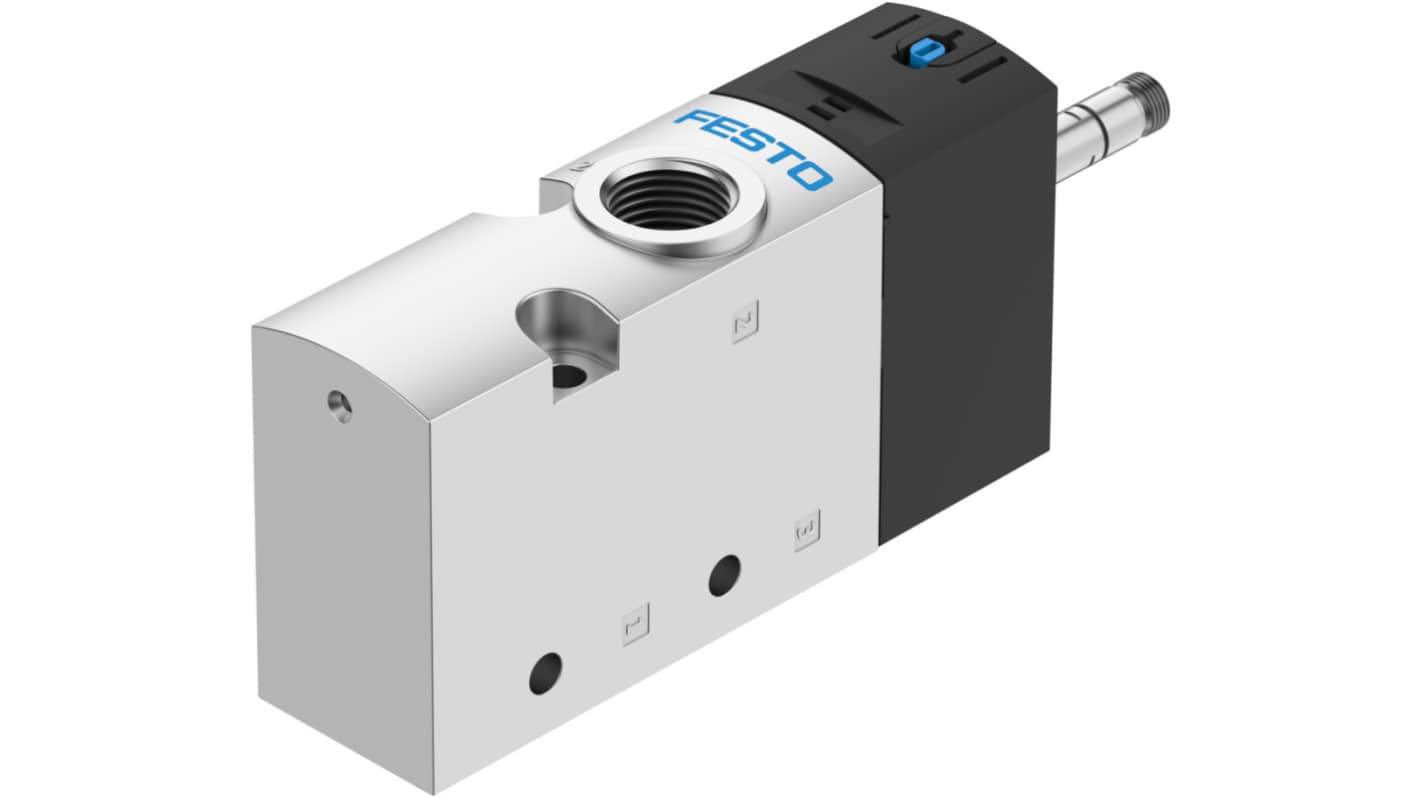

Festo 3/2 Pneumatic Solenoid Valve - Solenoid G 3/8 VUVS Series, 575566
- RS Stock No.:
- 181-6384
- Mfr. Part No.:
- VUVS-L30-M32C-MD-G38-F8
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£75.48
(exc. VAT)
£90.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £75.48 |
5 + | £72.46 |
*price indicative
- RS Stock No.:
- 181-6384
- Mfr. Part No.:
- VUVS-L30-M32C-MD-G38-F8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 3/2 | |
Connection Port Thread | G 3/8 | |
Actuation Type | Solenoid | |
Manufacturer Series | VUVS | |
Mounting Style | Inline | |
Solenoid Fitted | Yes | |
Number of Ports | 3 | |
Body Material | Die Cast Aluminium | |
Maximum Flow Rate | 2300L/min | |
Minimum Operating Pressure | 2.5bar | |
Configuration | 3/2 | |
Thread Size | 3/8in | |
Maximum Operating Pressure | 10bar | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Number of Positions | 2 | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 3/2 | ||
Connection Port Thread G 3/8 | ||
Actuation Type Solenoid | ||
Manufacturer Series VUVS | ||
Mounting Style Inline | ||
Solenoid Fitted Yes | ||
Number of Ports 3 | ||
Body Material Die Cast Aluminium | ||
Maximum Flow Rate 2300L/min | ||
Minimum Operating Pressure 2.5bar | ||
Configuration 3/2 | ||
Thread Size 3/8in | ||
Maximum Operating Pressure 10bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Number of Positions 2 | ||
Thread Standard G | ||
- COO (Country of Origin):
- CN
Festo VUVS Series Pneumatic Solenoid Valves, 3/2 Function, G 3/8 Connection Port Thread - VUVS-L30-M32C-MD-G38-F8, Numeric Part Number: 575566
This pneumatic solenoid valve is designed for efficient operation in various industrial applications. It features a robust die-cast aluminium body and measures 31 mm in size. This valve performs in a 3/2 configuration, suitable for both downstream and exhaust functions, enhancing flexibility in automation processes.
Features & Benefits
• Electric actuation enables precise control over flow
• High flow rate of 2300 l/min supports demanding applications
• Operates within a pressure range of 2.5 to 10 bar
• Mechanical spring reset ensures reliable functionality
• Soft sealing principle promotes effective leak prevention
• Optional mounting positions provide installation flexibility
• High flow rate of 2300 l/min supports demanding applications
• Operates within a pressure range of 2.5 to 10 bar
• Mechanical spring reset ensures reliable functionality
• Soft sealing principle promotes effective leak prevention
• Optional mounting positions provide installation flexibility
Applications
• Used with pneumatic systems requiring reliable flow control
• Suitable for automated assembly lines demanding high efficiency
• Utilised in industries where precise pressure control is critical
• Employed in environments that operate within a temperature range of -10 °C to +60 °C
• Suitable for automated assembly lines demanding high efficiency
• Utilised in industries where precise pressure control is critical
• Employed in environments that operate within a temperature range of -10 °C to +60 °C
What is the maximum flow rate available with this valve?
The valve supports a maximum flow rate of 2300 l/min, making it highly efficient for demanding pneumatic applications.
How does the design contribute to its performance in harsh environments?
The die-cast aluminium housing provides excellent durability, while the materials used ensure good performance under moderate corrosion stress and varying temperature gradients.
What kind of operating media is suitable for this valve?
It is designed to operate with compressed air, compliant with ISO 8573-1:2010 standards, which allows for lubrication if needed, ensuring smooth operation.
