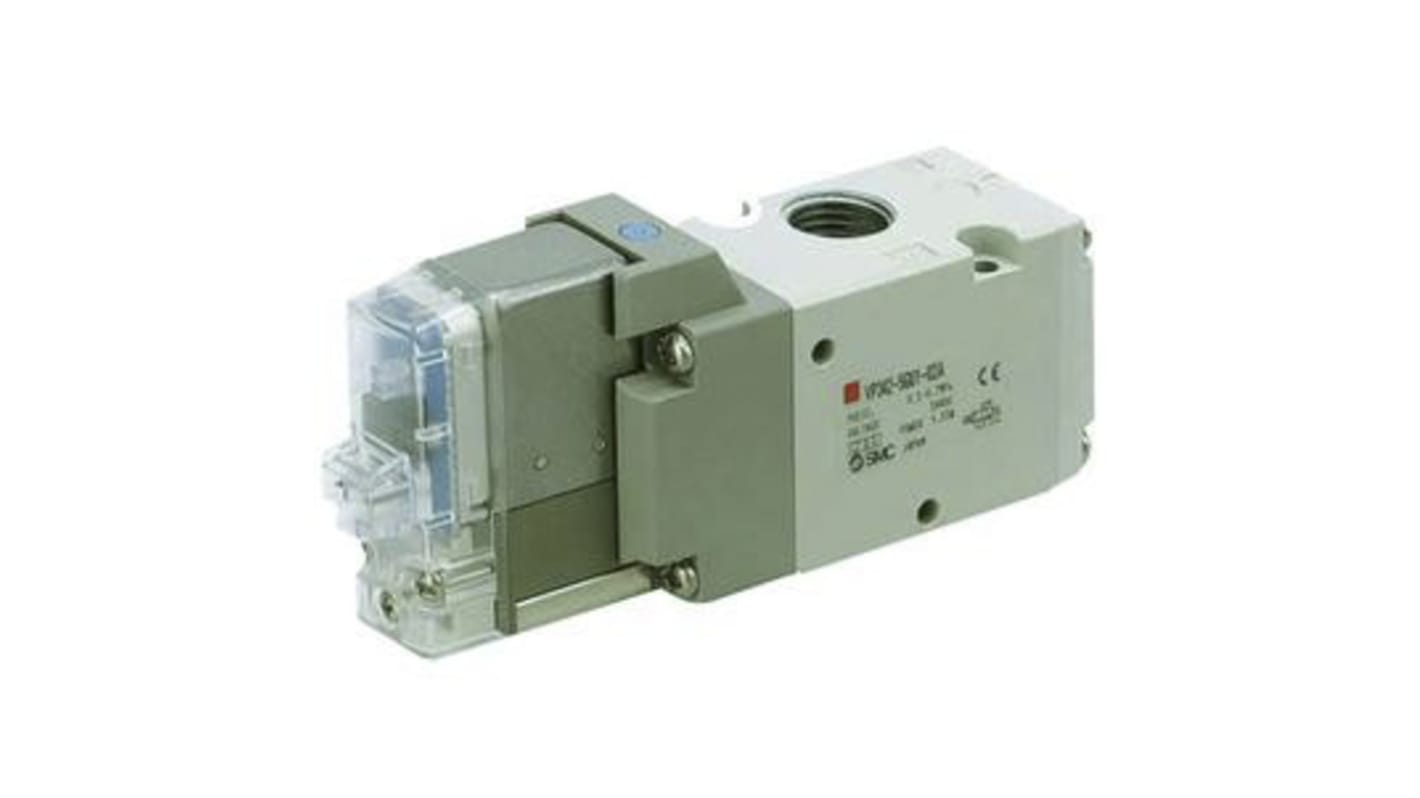

SMC Pneumatic Solenoid Valve - Solenoid G 1/2 VP700 Series 24V dc
- RS Stock No.:
- 176-5417
- Mfr. Part No.:
- VP717KY-5YO1
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£113.33
(exc. VAT)
£136.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £113.33 |
| 5 + | £107.67 |
*price indicative
- RS Stock No.:
- 176-5417
- Mfr. Part No.:
- VP717KY-5YO1
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Connection Port Thread | G 1/2 | |
| Actuation Type | Solenoid | |
| Manufacturer Series | VP700 | |
| Mounting Style | Stand-Alone | |
| Solenoid Voltage | 24V dc | |
| Solenoid Fitted | Yes | |
| Number of Ports | 3 | |
| Maximum Flow Rate | 3056 (A to R) L/min, 3149 (P to A) L/min | |
| Solenoid Power Consumption | 0.35 W, 0.45 (With Light) W | |
| Minimum Operating Pressure | 0.2MPa | |
| Maximum Operating Pressure | 1 MPa | |
| Minimum Operating Temperature | -10°C | |
| Thread Size | 1/2in | |
| Number of Positions | 3 | |
| Maximum Operating Temperature | +50°C | |
| Configuration | Normally Closed | |
| Thread Standard | G | |
Select all | ||
|---|---|---|
Brand SMC | ||
Connection Port Thread G 1/2 | ||
Actuation Type Solenoid | ||
Manufacturer Series VP700 | ||
Mounting Style Stand-Alone | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 3 | ||
Maximum Flow Rate 3056 (A to R) L/min, 3149 (P to A) L/min | ||
Solenoid Power Consumption 0.35 W, 0.45 (With Light) W | ||
Minimum Operating Pressure 0.2MPa | ||
Maximum Operating Pressure 1 MPa | ||
Minimum Operating Temperature -10°C | ||
Thread Size 1/2in | ||
Number of Positions 3 | ||
Maximum Operating Temperature +50°C | ||
Configuration Normally Closed | ||
Thread Standard G | ||
- COO (Country of Origin):
- JP
SMC's VP300/500/700 series solenoid valve, offers high flow capacity and reduced power consumption (1.55W standard, 0.55W with power saving circuit). The series may be used as either a selector valve, or a divider valve. It is vacuum applicable up to –101.2kPa. Series VP3145/3165/3185 is a large size, 3 port solenoid valve with a rubber seal. It is possible to use the series in vacuum applications or under low pressure. Both series are available in a normally closed or normally open styles.
3 port, pilot poppet type valve
Available with power saving circuit to reduce power consumption
Port sizes from 1/8 to 1/2, depending on series
Thread types: Rc, G, NPT, NPTF
Available with power saving circuit to reduce power consumption
Port sizes from 1/8 to 1/2, depending on series
Thread types: Rc, G, NPT, NPTF
