SMC Pneumatic Solenoid Valve - NC Solenoid NPT, Rc, NPTF, G, M5 VQZ100 Series 24V
- RS Stock No.:
- 612-655
- Mfr. Part No.:
- VQZ115-5G1-CP-Q
- Brand:
- SMC

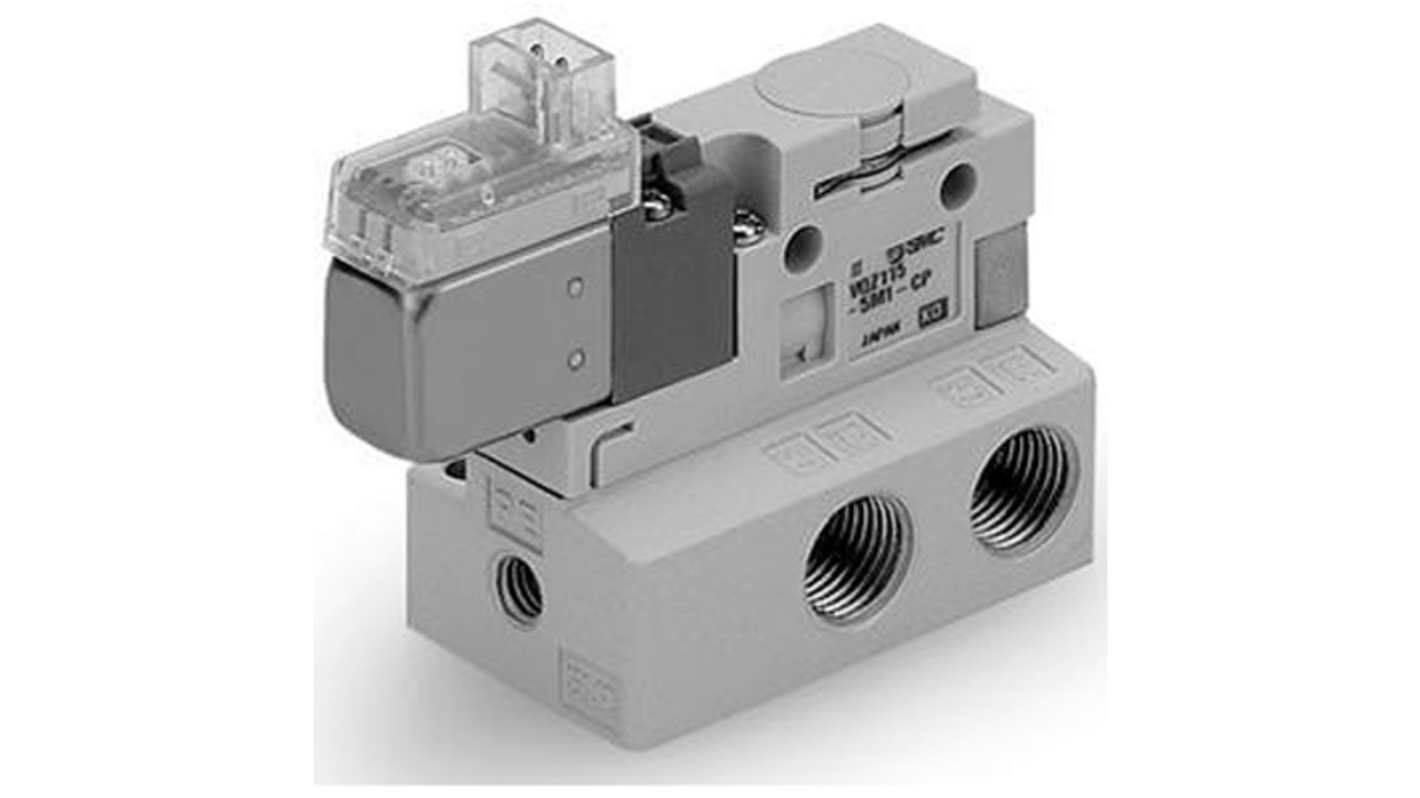

Image representative of range
Subtotal (1 unit)*
£49.17
(exc. VAT)
£59.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.17 |
*price indicative
- RS Stock No.:
- 612-655
- Mfr. Part No.:
- VQZ115-5G1-CP-Q
- Brand:
- SMC
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Solenoid Valve | |
| Connection Thread Standard | NPT, Rc, NPTF, G, M5 | |
| Actuation Type | Solenoid | |
| Seal Material | Rubber Seal | |
| Voltage | 24V | |
| Series | VQZ100 | |
| Mount Type | DIN Rail | |
| Number of Ports | 3 | |
| Body Material | Die Cast Aluminium | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Port Gender | Female | |
| Maximum Pilot Pressure | 1.0MPa | |
| Minimum Operating Temperature | -10°C | |
| Valve Function | NC | |
| Minimum Pilot Pressure | 0.15MPa | |
| Maximum Flow Rate | 4.1dm³/s | |
| Solenoid Power Consumption | 0.35W | |
| Maximum Operating Temperature | 50°C | |
| Length | 10mm | |
| Hazardous Area Certification | No | |
| Width | 1mm | |
| Standards/Approvals | CE | |
| Height | 45mm | |
| Number of Positions | 2 | |
| Electrical Connection Type | Grommet | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Solenoid Valve | ||
Connection Thread Standard NPT, Rc, NPTF, G, M5 | ||
Actuation Type Solenoid | ||
Seal Material Rubber Seal | ||
Voltage 24V | ||
Series VQZ100 | ||
Mount Type DIN Rail | ||
Number of Ports 3 | ||
Body Material Die Cast Aluminium | ||
Maximum Operating Pressure 0.7 Mpa | ||
Port Gender Female | ||
Maximum Pilot Pressure 1.0MPa | ||
Minimum Operating Temperature -10°C | ||
Valve Function NC | ||
Minimum Pilot Pressure 0.15MPa | ||
Maximum Flow Rate 4.1dm³/s | ||
Solenoid Power Consumption 0.35W | ||
Maximum Operating Temperature 50°C | ||
Length 10mm | ||
Hazardous Area Certification No | ||
Width 1mm | ||
Standards/Approvals CE | ||
Height 45mm | ||
Number of Positions 2 | ||
Electrical Connection Type Grommet | ||
- COO (Country of Origin):
- JP
The SMC Base Mount Solenoid Valves combine convenience with durability and performance in a traditional mounting style, making them easy to install and maintain. Body Ported Solenoid Valves offer flexibility, high performance, and long service life in an inline body style, Ideal for versatile system integration.
Response time metal seal 14ms or less
Ambient and fluid temperature -10 to 50 degree Celsius
