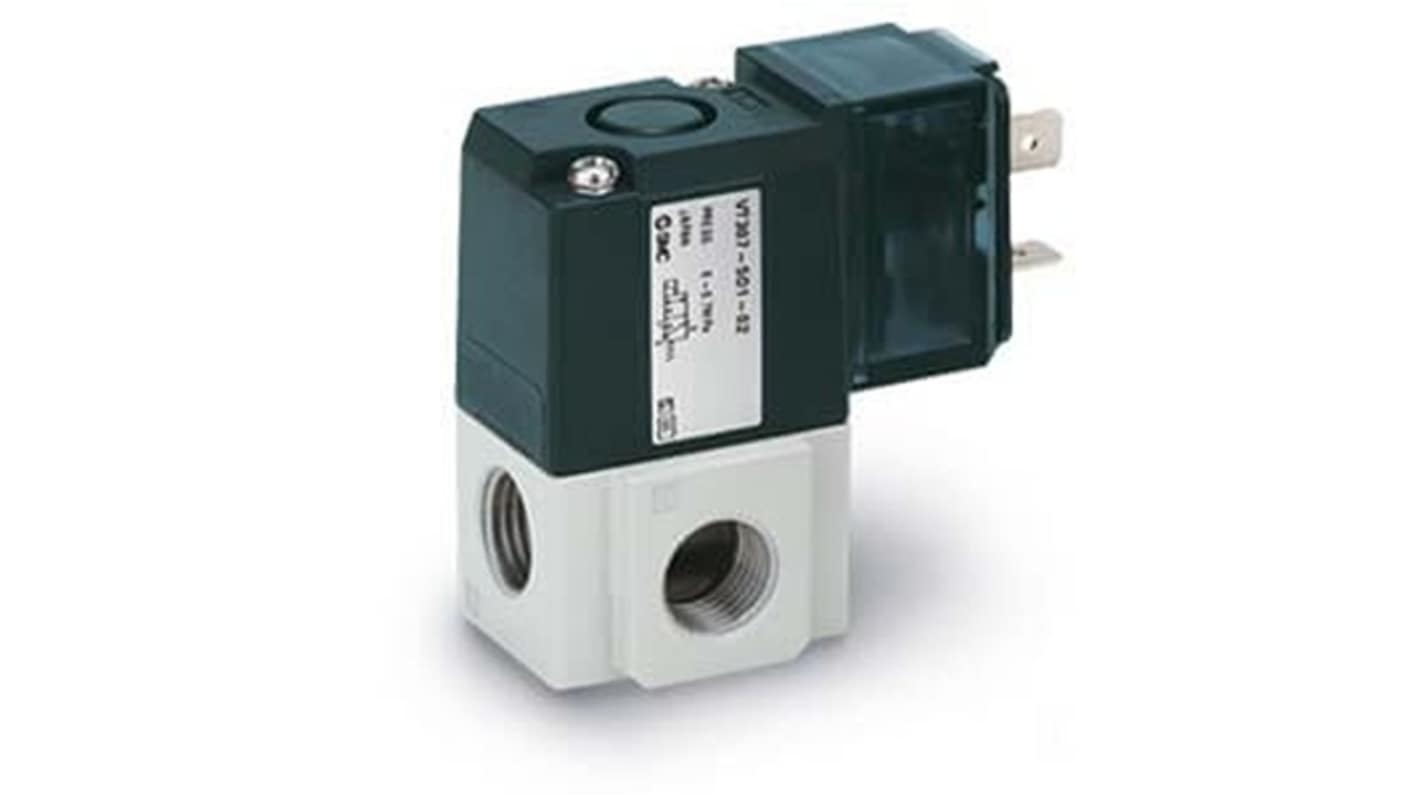

SMC Pneumatic Solenoid Valve - 2 Position Single Solenoid Solenoid/Air M5 x 0.8 VT307 Series 24V dc
- RS Stock No.:
- 363-545
- Mfr. Part No.:
- VT307-5DZ1-02-Q
- Brand:
- SMC
Subtotal (1 unit)*
£35.01
(exc. VAT)
£42.01
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £35.01 |
*price indicative
- RS Stock No.:
- 363-545
- Mfr. Part No.:
- VT307-5DZ1-02-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | M5 | |
| Port Type | Threaded | |
| Connection Thread Standard | M5 x 0.8 | |
| Actuation Type | Solenoid/Air | |
| Series | VT307 | |
| Seal Material | Halogenated Nitrile Rubber | |
| Voltage | 24V dc | |
| Solenoid Type | Direct Acting | |
| Mount Type | Panel | |
| Number of Ports | 5 | |
| Body Material | Aluminium | |
| Maximum Operating Pressure | 1 Mpa | |
| Port Gender | Female | |
| Maximum Pilot Pressure | 0.7MPa | |
| Minimum Operating Temperature | -10°C | |
| Valve Function | 2 Position Single Solenoid | |
| Minimum Pilot Pressure | 0.15MPa | |
| Mount Pattern | Base | |
| Maximum Flow Rate | 500L/min | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 3.5W | |
| Hazardous Area Certification | NO | |
| Width | 30mm | |
| Height | 90mm | |
| Length | 120mm | |
| Standards/Approvals | CE, RoHS | |
| Electrical Connection Type | DIN 43650 A | |
| Number of Positions | 2 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size M5 | ||
Port Type Threaded | ||
Connection Thread Standard M5 x 0.8 | ||
Actuation Type Solenoid/Air | ||
Series VT307 | ||
Seal Material Halogenated Nitrile Rubber | ||
Voltage 24V dc | ||
Solenoid Type Direct Acting | ||
Mount Type Panel | ||
Number of Ports 5 | ||
Body Material Aluminium | ||
Maximum Operating Pressure 1 Mpa | ||
Port Gender Female | ||
Maximum Pilot Pressure 0.7MPa | ||
Minimum Operating Temperature -10°C | ||
Valve Function 2 Position Single Solenoid | ||
Minimum Pilot Pressure 0.15MPa | ||
Mount Pattern Base | ||
Maximum Flow Rate 500L/min | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 3.5W | ||
Hazardous Area Certification NO | ||
Width 30mm | ||
Height 90mm | ||
Length 120mm | ||
Standards/Approvals CE, RoHS | ||
Electrical Connection Type DIN 43650 A | ||
Number of Positions 2 | ||
- COO (Country of Origin):
- JP
The SMC VT307 series 3 Port Solenoid Valve is engineered for precision and reliability in automated systems. Designed with a direct-operated poppet type mechanism, this model provides exceptional performance across various applications. The valve’s energy-efficient operation and RoHS compliance ensure it meets modern environmental standards while delivering optimal functionality. This robust solenoid valve is versatile, featuring options for vacuum applications and a variety of valve functions, making it ideal for diverse industry needs. Its compact design allows for easy integration into existing systems, offering seamless control of airflow in critical processes. Additionally, the VT307 series ensures durability and reliability, even under demanding operating conditions, providing peace of mind in high-frequency environments.
Ensures rapid response times, enhancing system efficiency
Constructed with a robust aluminum body for durability
Equipped with a manual override feature for emergency control
Allows for flexible mounting orientations to fit tight spaces
Offers interchangeable mounting dimensions with existing products for easy upgrades
Designed to withstand vibrations and impacts, ensuring long-lasting performance
Supports both common and individual exhaust configurations for versatility
Light/surge voltage suppressor is available for added electrical protection
