SMC Pneumatic Soft Start Valve, G 1/4 Female 1 (Operating) MPa, 1.5 (Proof) MPa

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation

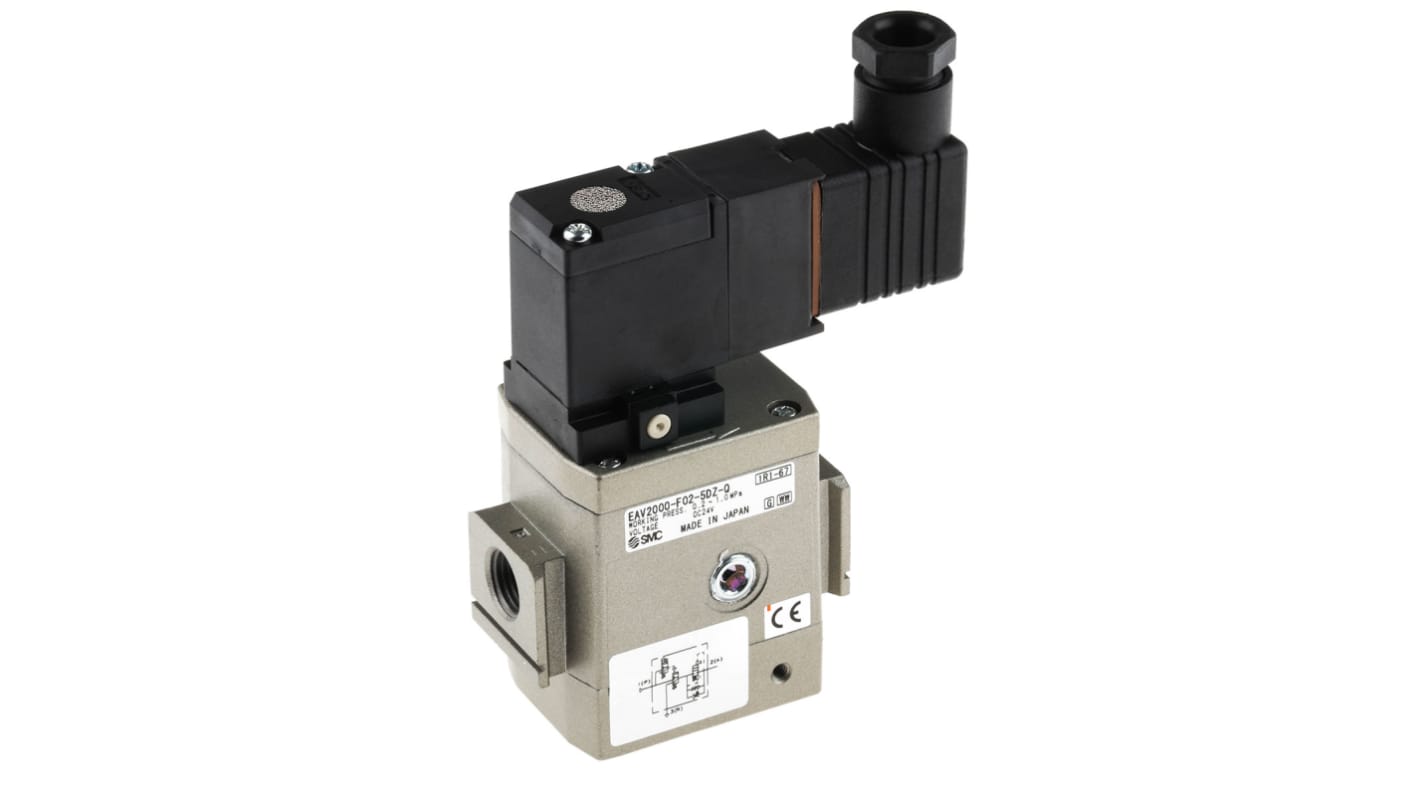

SMC Pneumatic Soft Start Valve, G 1/4 Female 1 MPa
RS Stock No.
196-4543

Each

£148.98

(exc. VAT)

£178.78

(inc. VAT)

RS Stock No.:
885-2240
Mfr. Part No.:
EAV2000-F02-5DZ-Q
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Supply Inlet Port

G 1/4 Female

Manufacturer Series

AV2000

Maximum Operating Pressure

1 (Operating) MPa, 1.5 (Proof) MPa

Minimum Operating Pressure

0.2MPa

Supply Inlet Port Thread Gender

Female

Supply Inlet Port Thread Standard

G

Body Material

Aluminium Die Cast

COO (Country of Origin):
JP

Soft Start & Dump Valve


Pneumatic start-up valves gradually increase pressure on system start-up and exhaust air rapidly when the system is shut down. Air supply and exhaust can be manually operated, and can be locked in the exhaust position.

Combined soft start and dump spring return valve
Temperature range 0°C to +60°C
Compatible with SMC modular series FRL
Maximum working pressure: 10 bar
Proof pressure rating:15 bar
Gauge port sizes from G 1/4 to G 1/2
Piston and slide material NBR
Low power consumption solenoid - 24Vdc @ 1.8W
Large CV factor

Note

When using the dump valve facility, it is recommended that a silencer is fitted to the relieving port.
