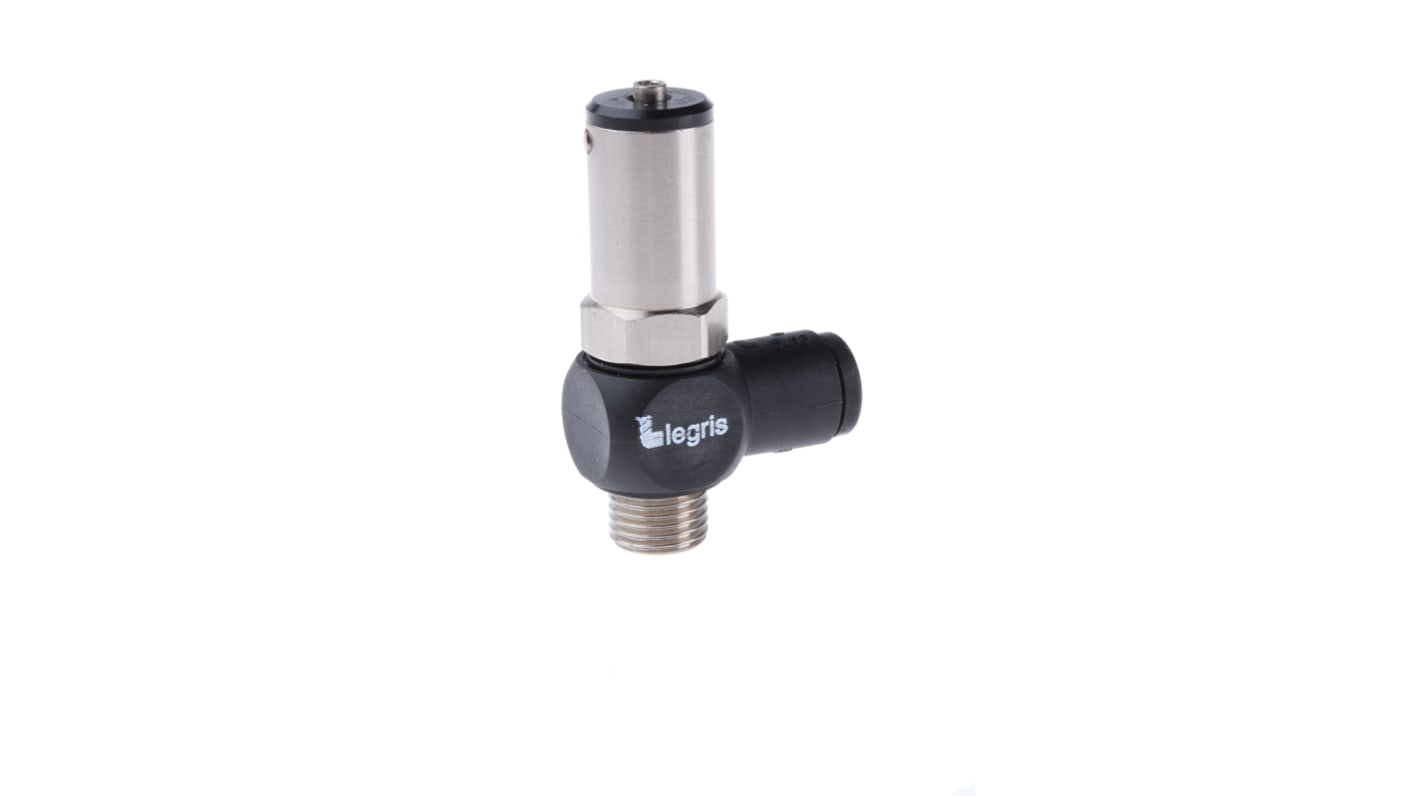

Legris Pneumatic Soft Start Valve, G 1/4 Male, 8mm Tube Size 10bar
- RS Stock No.:
- 724-655
- Mfr. Part No.:
- 7870 08 13
- Brand:
- Legris
Subtotal (1 unit)*
£68.34
(exc. VAT)
£82.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £68.34 |
*price indicative
- RS Stock No.:
- 724-655
- Mfr. Part No.:
- 7870 08 13
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Supply Inlet Port | G 1/4 Male | |
| Manufacturer Series | 7870 | |
| Maximum Operating Pressure | 10bar | |
| Type | Control Valve | |
| Outlet Tube Size | 8mm | |
| Minimum Operating Pressure | 1bar | |
| Supply Inlet Port Thread Gender | Male | |
| Supply Inlet Port Thread Standard | G | |
| Supply Inlet Port Thread Size | 1/4in | |
Select all | ||
|---|---|---|
Brand Legris | ||
Supply Inlet Port G 1/4 Male | ||
Manufacturer Series 7870 | ||
Maximum Operating Pressure 10bar | ||
Type Control Valve | ||
Outlet Tube Size 8mm | ||
Minimum Operating Pressure 1bar | ||
Supply Inlet Port Thread Gender Male | ||
Supply Inlet Port Thread Standard G | ||
Supply Inlet Port Thread Size 1/4in | ||
- COO (Country of Origin):
- FR
Control Valve
These are mounted to the supply port of a control valve or the common supply line to a number of control valves and will only control equipment downstream of that point. Function is indicated with a black coloured identification washer.
Soft Start & Pressure Decay
These LF3000 Series fittings allow air pressure to gradually increase when a compressed air line is restarted after venting.
When downstream pressure equals 2/3 of the supply pressure, full flow is automatically established
Fully adjustable to optimise air line pressurisation time
Soft start prevents shocks to system components which can occur when full working pressure is immediately introduced
Fully adjustable to optimise air line pressurisation time
Soft start prevents shocks to system components which can occur when full working pressure is immediately introduced
