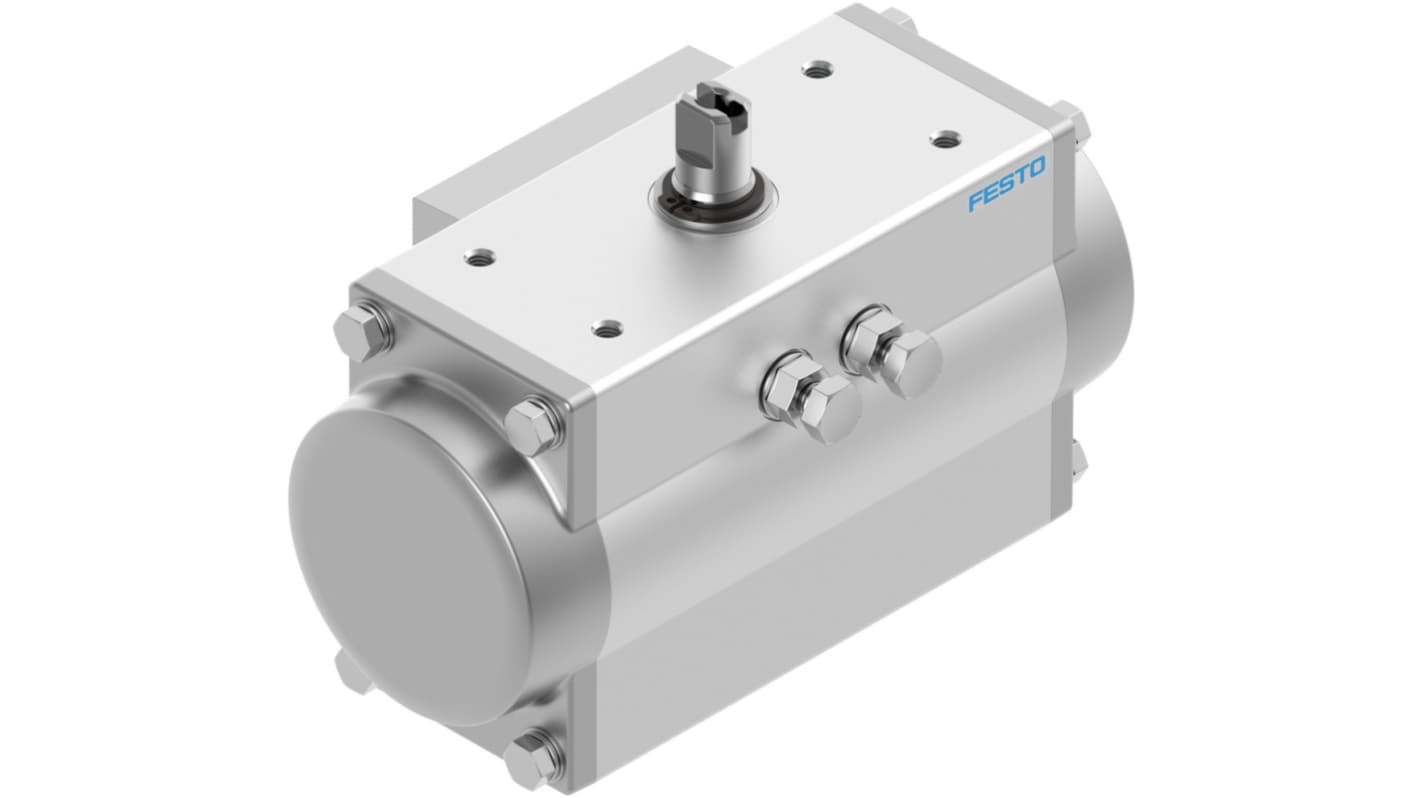

Festo DFPD Series 8 bar Single Action Pneumatic Rotary Actuator, 90° Rotary Angle, 20mm Bore

This pneumatic rotary actuator is a robust solution designed for various automation applications. It features a 20mm bore and offers a 90° swivel angle for precise control. The actuator operates in single-acting mode, making it an ideal choice for applications requiring reliable, straightforward performance. Constructed primarily from anodised aluminium, this actuator combines durability with a lightweight design, weighing 1371g.

• Compact design with a 20mm bore for space efficiency
• Single-acting operation simplifies control mechanisms
• Maximum operating pressure of 8 bar enhances reliability
• G 1/8 port connection ensures compatibility with standard fittings

• Used in automated assembly lines for precise motion control
• Suitable for positioning valves in pneumatic systems
• Ideal for integration with solenoid valves and position sensors
• Compatible with mounting systems following ISO 5211 standards

At the rated operating pressure with a 0° rotation angle, the actuator can produce a torque of 7.4 Nm. At a nominal operating pressure with a 90° swivel angle, the torque is measured at 3.8 Nm, ensuring effective performance in various applications.

Yes, it is rated for use in environments with explosion risks, meeting ATEX categories Gas II 2G and Dust II 2D, making it suitable for demanding industrial settings.

The actuator is designed to function with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring optimal performance under specified conditions.
