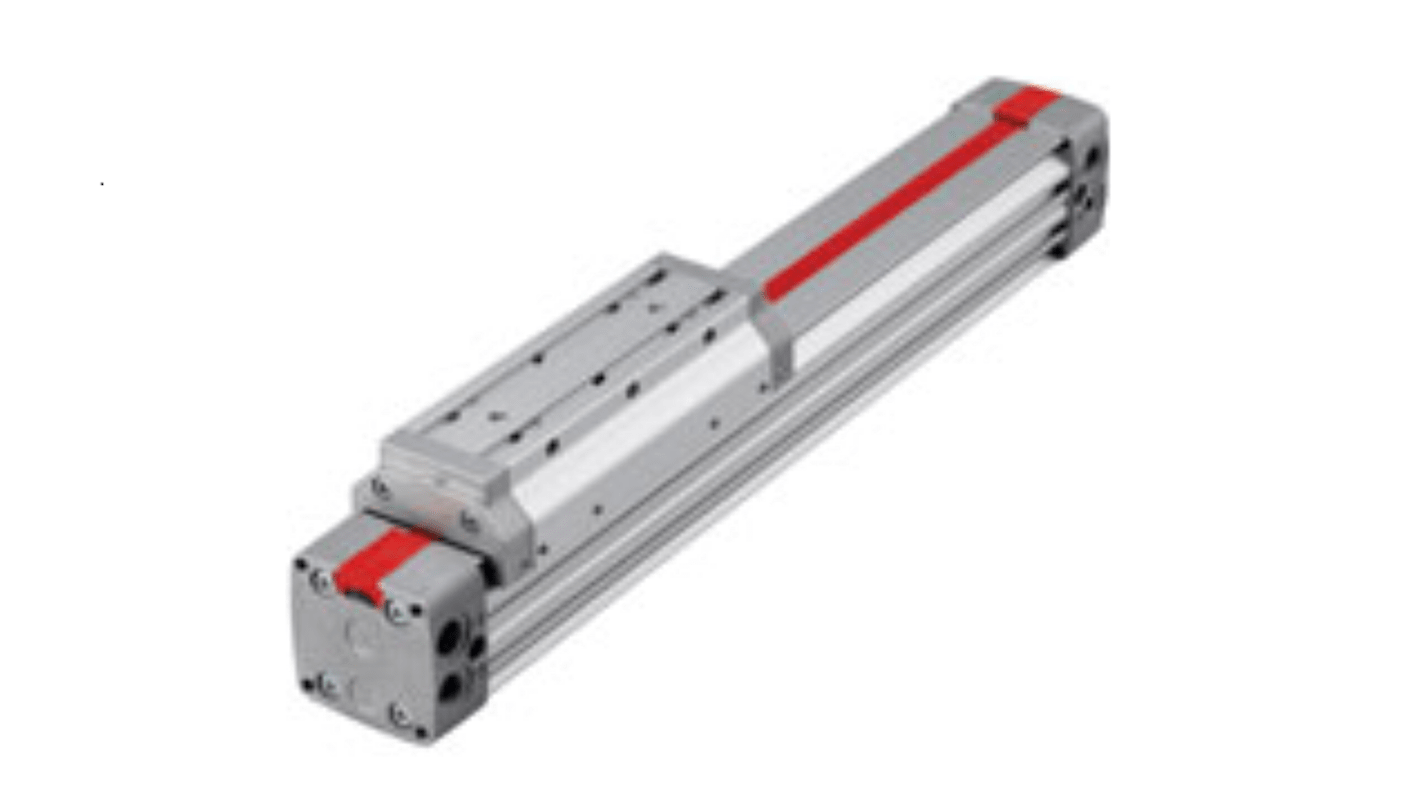

Norgren Double Acting Acting Rodless Actuator 63 mm Bore 400 mm
- RS Stock No.:
- 220-3793
- Mfr. Part No.:
- M/146163/M/400
- Brand:
- Norgren
Subtotal (1 unit)*
£1,459.62
(exc. VAT)
£1,751.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,459.62 |
*price indicative
- RS Stock No.:
- 220-3793
- Mfr. Part No.:
- M/146163/M/400
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Rodless Actuator | |
| Bore Size | 63mm | |
| Connection Thread Standard | G | |
| Stroke Length | 400mm | |
| Series | M/146100 | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Aluminium | |
| Cushioning Type | Adjustable | |
| Port Gender | Female | |
| Guide Type | External Guide | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ATEX | |
| Width | 110mm | |
| Length | 830mm | |
| Height | 137mm | |
| Port Thread Size | 1/2 in G | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Rodless Actuator | ||
Bore Size 63mm | ||
Connection Thread Standard G | ||
Stroke Length 400mm | ||
Series M/146100 | ||
Action Type Double Acting | ||
Maximum Operating Pressure 8 bar | ||
Body Material Aluminium | ||
Cushioning Type Adjustable | ||
Port Gender Female | ||
Guide Type External Guide | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ATEX | ||
Width 110mm | ||
Length 830mm | ||
Height 137mm | ||
Port Thread Size 1/2 in G | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The IMI Norgren Lintra series pneumatic rodless actuator has 63mm cylinder diameter with external guide. The rodless actuator operates as double acting with magnetic piston with adjustable cushioning.
New lightweight design extrusion with universal mounting grooves
Proven and patented sealing system
Dust protection as standard
Interchangeability with series M/46000
